USE
DISPLAY INDICATION
The LED display shows the general functioning status of the ATS. The table below lists and describes the signal displayed.

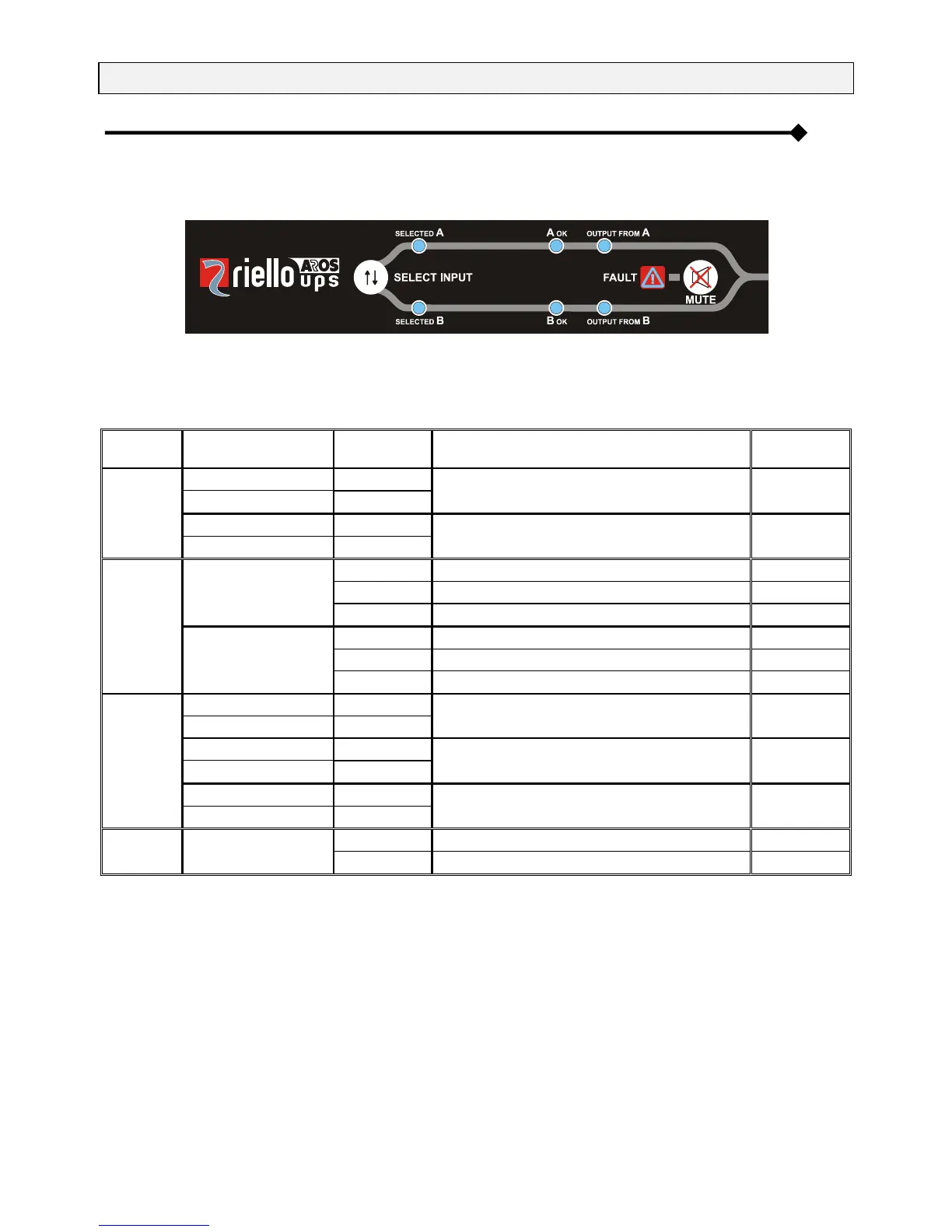

Fig. 11: Focus on LED display.
FIGURE 11 LEGEND:
Indication
type
LED description
LED status
Condition
Sound
Preference
indication
SELECTED A
ON
Power A is preference
OFF
SELECTED B
OFF
SELECTED A
OFF
Power B is preference
OFF
SELECTED B
ON
Input power
status
A OK
OFF
Inlet A has no power input
OFF
ON
Inlet A has power input, and power is OK
OFF
BLINKING
Inlet A has power input, but power is out of SPEC
OFF
B OK
OFF
Inlet B has no power input
OFF
ON
Inlet B has power, and power is OK
OFF
BLINKING
Inlet B has power input, but power is out of SPEC
OFF
Output
status
OUTPUT FROM A
ON
Power A is output
OFF
OUTPUT FROM B
OFF
OUTPUT FROM A
OFF
Power B is output
OFF
OUTPUT FROM B
ON
OUTPUT FROM A
OFF
No output
OFF
OUTPUT FROM B
OFF
Alarm
FAULT
OFF
Alarm not present
OFF
ON
Alarm present
Continuous
