ATS VIEWS

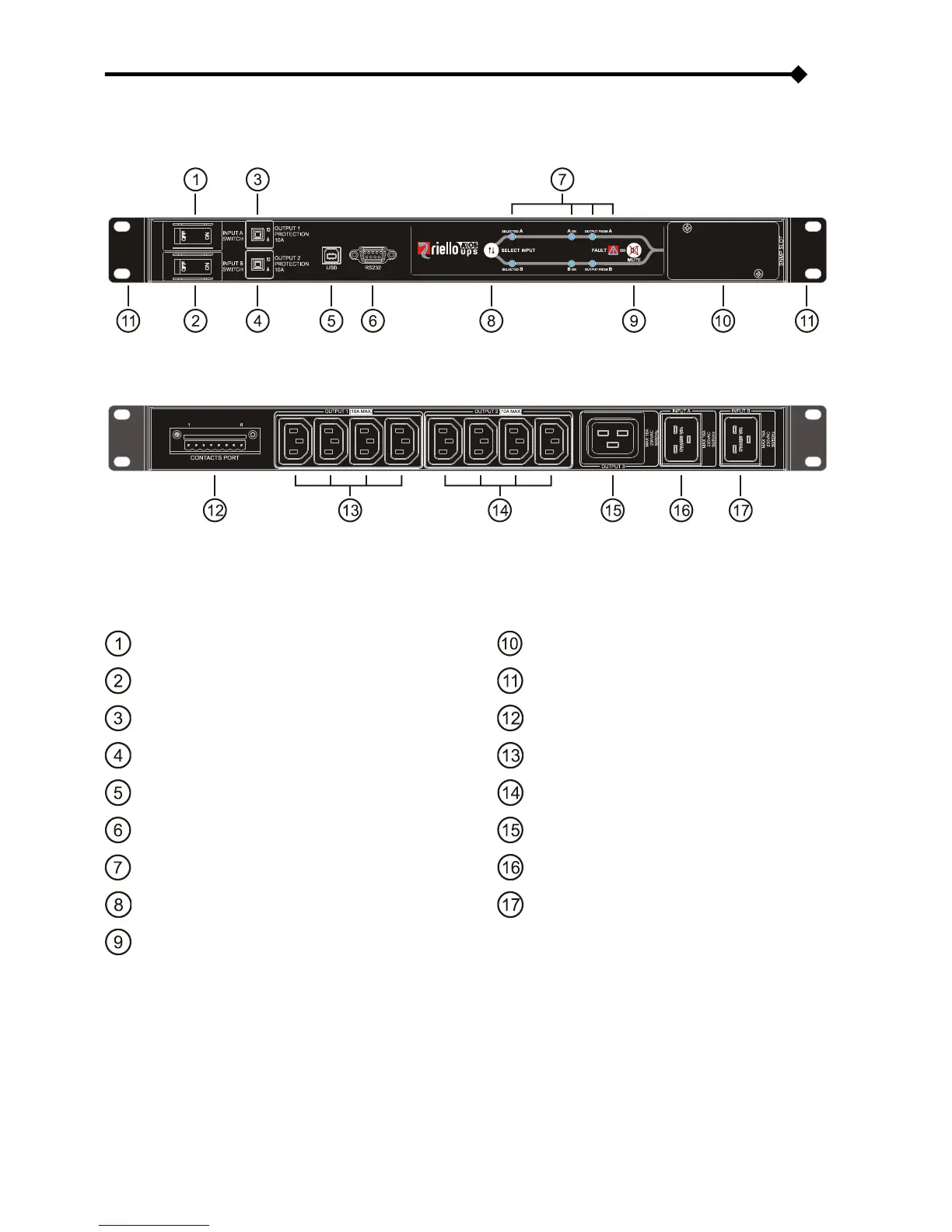

Figure 6 shows in detail the front and rear views of the ATS.
Fig. 6: front and rear views of ATS module.
FIGURE 6 LEGEND:
“INPUT A” switch
SNMP expansion slot
“INPUT B” switch
Brakets for rack cabinet mounting
Output 10A thermal breaker “OUTPUT 1”
Contacts port (see the relative paragraph for its
functioning)
Output 10A thermal breaker “OUTPUT 2”
Output IEC 10A sockets “OUTPUT 1”
USB communication port
Output IEC 10A sockets “OUTPUT 2”
RS232 communication port
Output IEC 16A socket “OUTPUT 3”
LED indication panel (see related paragraph)
Input 16A plug “INPUT A”
Preferred source selection button
Input 16A plug “INPUT B”
Acoustic signal mute button
