Riello MultiCOM 392 - Output Configuration Details; Output Configuration Examples

- MPW / MPX -
33

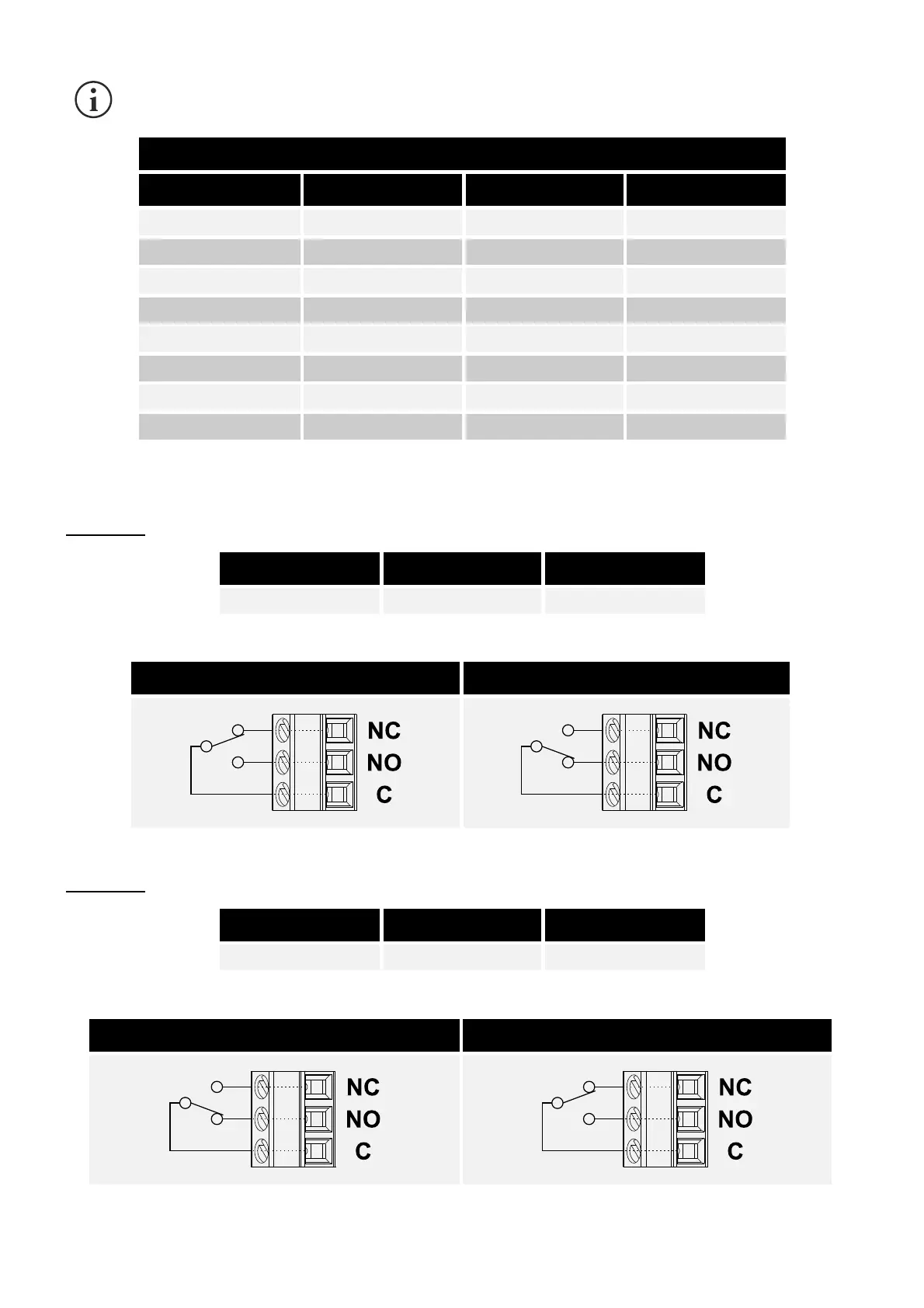

For each of the eight outputs can be selected: the associated event (Output mode), the operating logic of the relay
(Logic) and a delay (in seconds) in reporting the event.
OUTPUT CONTACTS DEFAULT CONFIGURATION
Output
Output mode
Logic
Delay (s)
OUT 1
Battery low
Normal OFF
0
OUT 2
Battery working
Normal OFF
0
OUT 3
Inverter locked
Normal OFF
0
OUT 4
Load on bypass
Normal OFF
0
OUT 5
Normal operation
Normal OFF
0
OUT 6
Battery not present
Normal OFF
0
OUT 7
Overload
Normal OFF
0
OUT 8
Any alarm
Normal OFF
0
EXAMPLE 1 - if you set an output in this way:
Output mode
Logic
Delay (s)
Battery working
Normal OFF
0
the relative contact will be:
UPS working by mains
UPS in battery working mode
EXAMPLE 2 - if you set an output in this way:
Output mode
Logic
Delay (s)
Battery working
Normal ON
10
the relative contact will be:
UPS working by mains
UPS in battery working mode for at least 10 seconds
