8
GENERAL

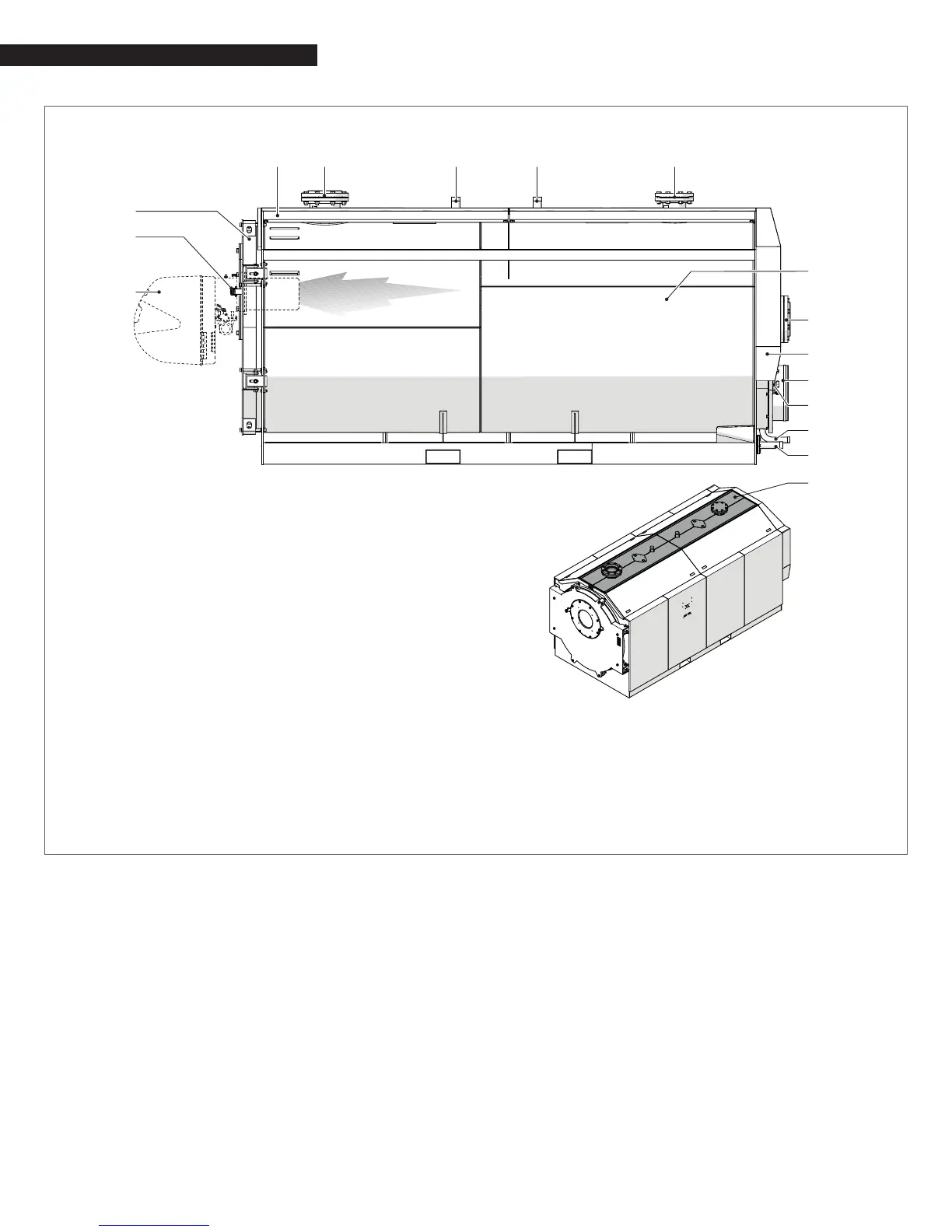

RTC 8000-RTC 10000
1
3
4 5 76 6
8
9
11
14
15
12
13
10
2
1 Burner
2 Flame inspection window with pressure measurement
point
3 Door
4 Casing
5 Central heating supply
6 Safety valve connection
7 Central heating return - High Temperature (HT)
8 Combustion chamber
9 Central heating return - Low Temperature (LT)
10 Flue gas box
11 Flue gas exhaust
12 Inspection window
13 Condensate outlet
14 Boiler drain
15 Support plane - Max load 330 lb (150kg)
