Riello RTC 6000 - System Layout

7
GENERAL

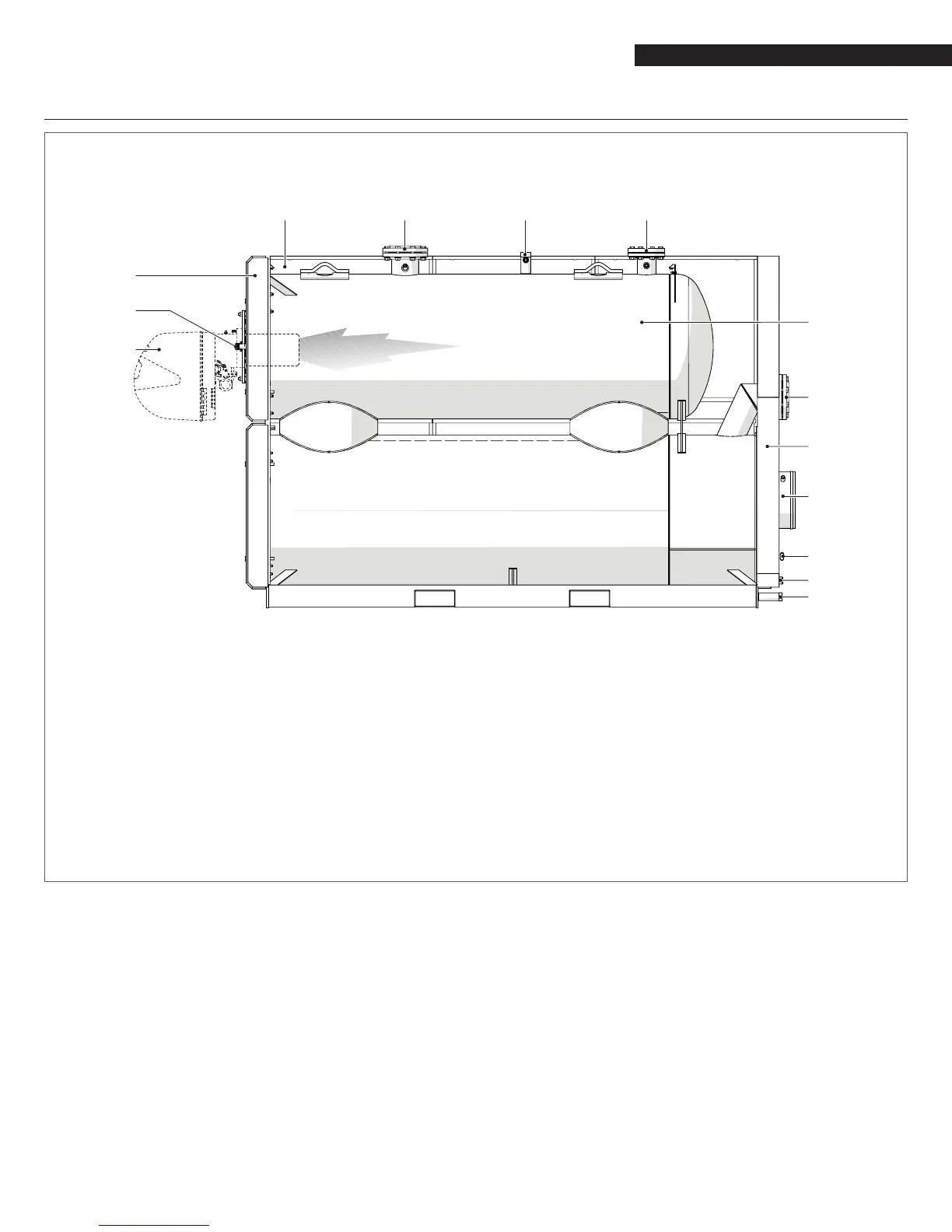

1.5 System layout
RTC 3000-RTC 4000-RTC 5000-RTC 6000
1
3
2
4 5 76
8
9
11
12
14
13
10
1 Burner
2 Flame inspection window with pressure measurement
point
3 Door
4 Casing
5 Central heating supply
6 Safety valve connection
7 Central heating return - High Temperature (HT)
8 Combustion chamber
9 Central heating return - Low Temperature (LT)
10 Flue gas box
11 Flue gas exhaust
12 Inspection window
13 Condensate outlet
14 Boiler drain
