Rifton Wave - Swivel movement of the transfer sub-frame from right to left (or vice versa)

13

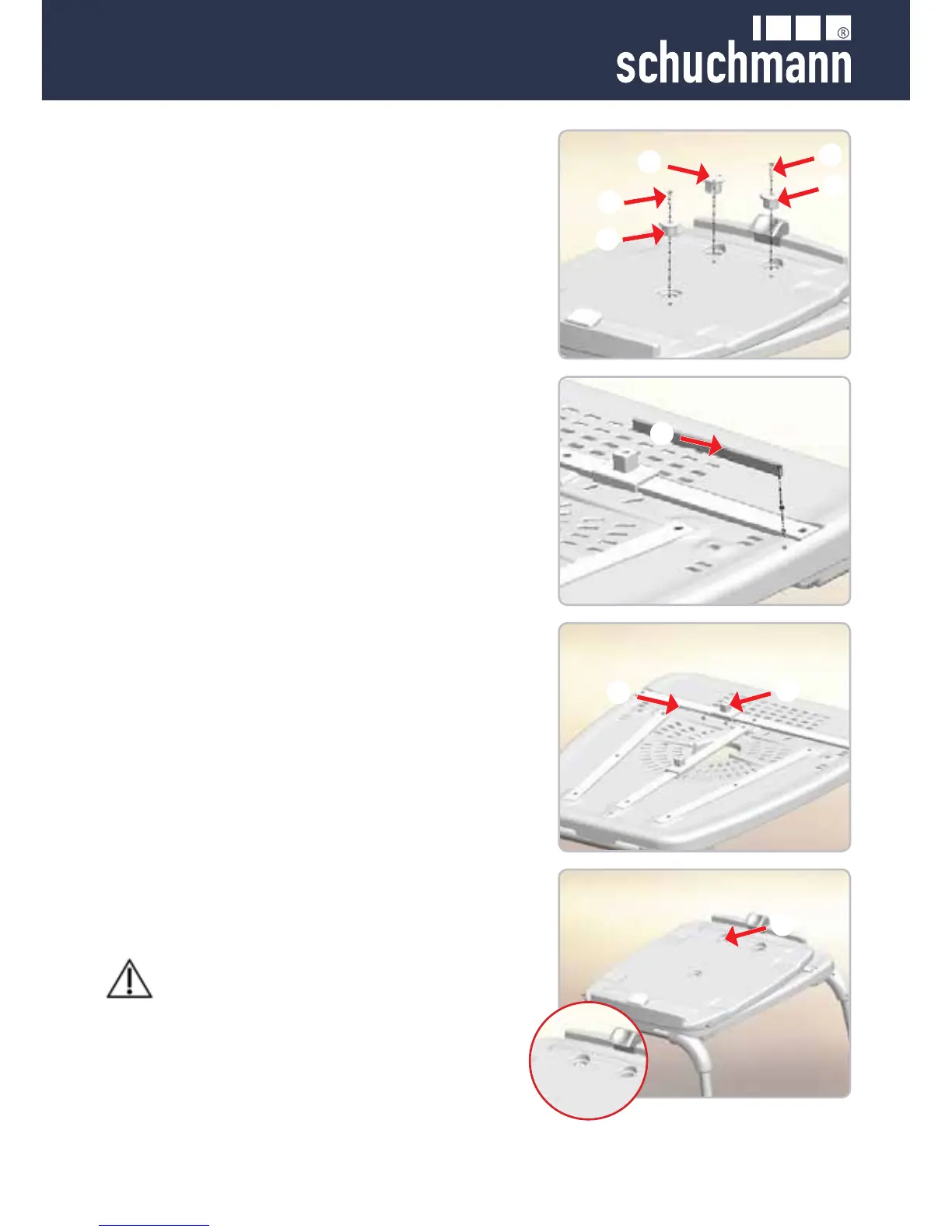

4.3.2 Swivel movement of the transfer sub-
frame from right to left (or vice versa)
The transfer sub-frame can be swivelled either
to the left or to the right. In order to change the
respective direction of swivel, remove the screws
(A). Remove the two plastic slides (B) and the
plastic plug (C) and lift up the upper platform. The
upper platform is easier to remove from the rear.
Remove the plastic stop (D) from the groove. You
may require a screwdriver or another tool to do
this.
Insert the plastic stop (D) into the other end of
the same groove. Push the slide (E) in right up
to the stop.
Reinsert the upper platform you just removed.
The slide (E) should now project out of the oppo-
site recess.
Reinsert the two screws (A) with the delivered
tool and tighten them. Press the plastic slides (B)
into the holes.
Now you can swivel the transfer sub-frame in the
required direction.
Depending on whether you wish to
swivel the device from right to left or
from left to right, the adjustment must
be undertaken in the opposite order.
A
A
B
B
C
D
D
E
E
