Chapter 2 Front Panel Operations RIGOL
DL3000 User’s Guide 2-21
(1) In the guide interface, press the Up/Down arrow key to switch the
parameter focus to "Width/Duty". Then, press the Left/Right arrow key or
the knob to select Width or Duty.
(2) Enter a value by using the numeric keys. For setting methods, refer to the
descriptions in "Parameter Setting Method".
Set TRIG_SRC
Three triggers are available in Con mode: BUS trigger, TRAN trigger, and DIGIO
trigger.
(1) In the guide interface, press the Up/Down arrow key to switch the
parameter focus to "TRIG_SRC".
(2) Press the Left/Right arrow key or rotate the knob to select the type of the
trigger source.
4. Enter the main interface
In the guide interface, after you configure the parameters, press Apply to enter
the main interface, as shown in
Figure 2-16. At this time, the parameters are
successfully configured. "CC" and "Continuous" are active at the top of the main
interface. "Continuous" is highlighted. In the guide interface, if you give up
configuring parameters, you can press Cancel to exit the guide interface and
enter the main interface.

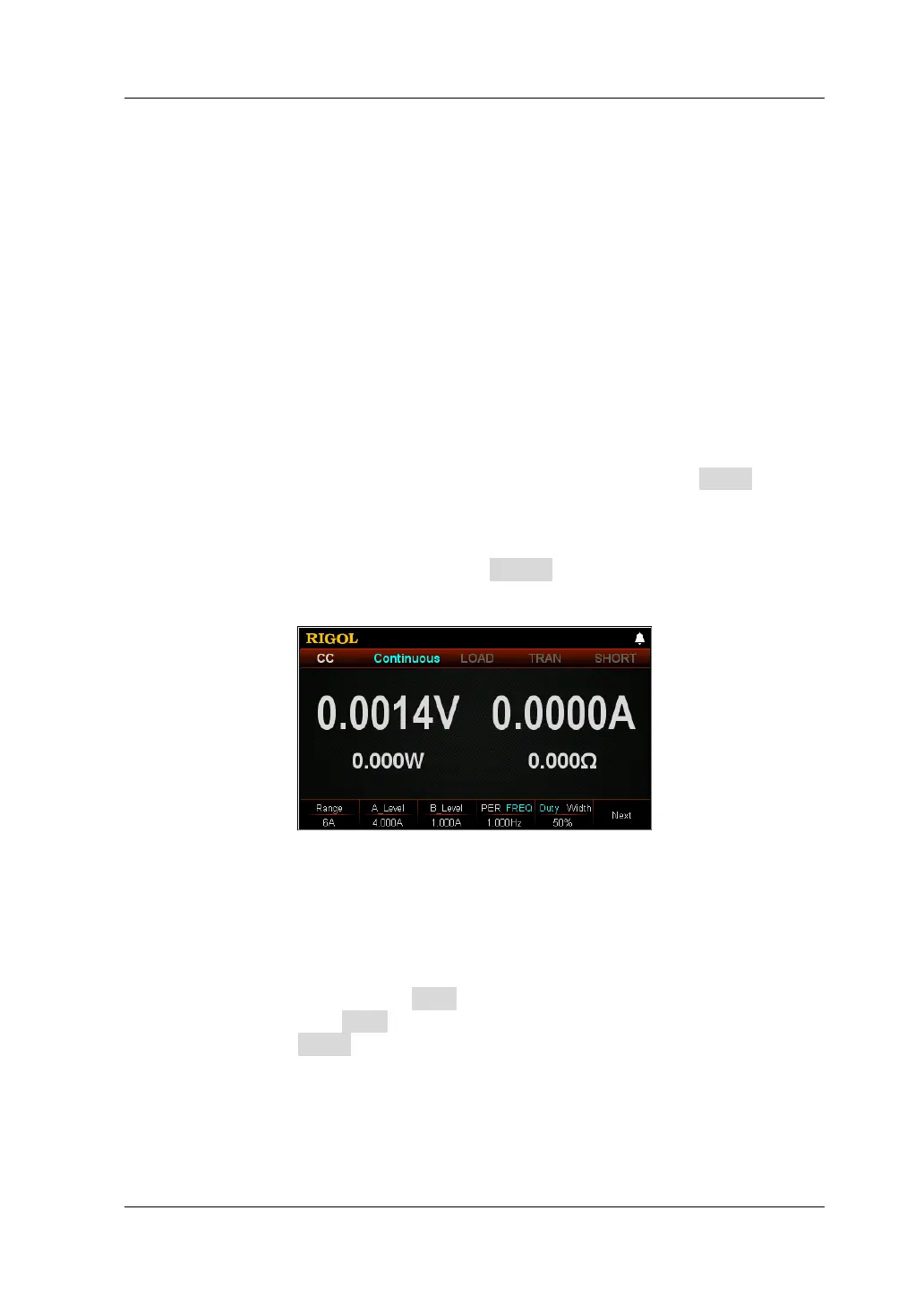

Figure 2-16 Main Interface of Con Operation
The menus of the main interface are displayed in three pages.
Menu items on Page 1: Range, A_Level, B_Level, PER/FREQ, Duty/Width, and
Next.
Menu items on Page 2: Slew_RIS, Slew_FAL, TRIG_SRC, Guide, Next, and Back.
Menu items on Page 3: Read, Save, and Back.
To go to the next page, press Next; to exit the current page and go back to the
previous page, press Back; to go back to the guide interface from the main
interface, press Guide.
In the main interface, you can also set parameters based on your own needs.
The setting methods for the parameters are as follows:
