DP800 Quick Guide 5
Single-channel model (DP811):
Press this key to select 20V/10A range as the current range and
you can set the parameters of the channel, such as voltage,
current and overvoltage/overcurrent protection.
Press this key to select 40V/5A range as the current range and you
can set the parameters of the channel, such as voltage, current
and overvoltage/overcurrent protection.
Press this key to enable or disable the output of the channel.
3. Parameter Input Area

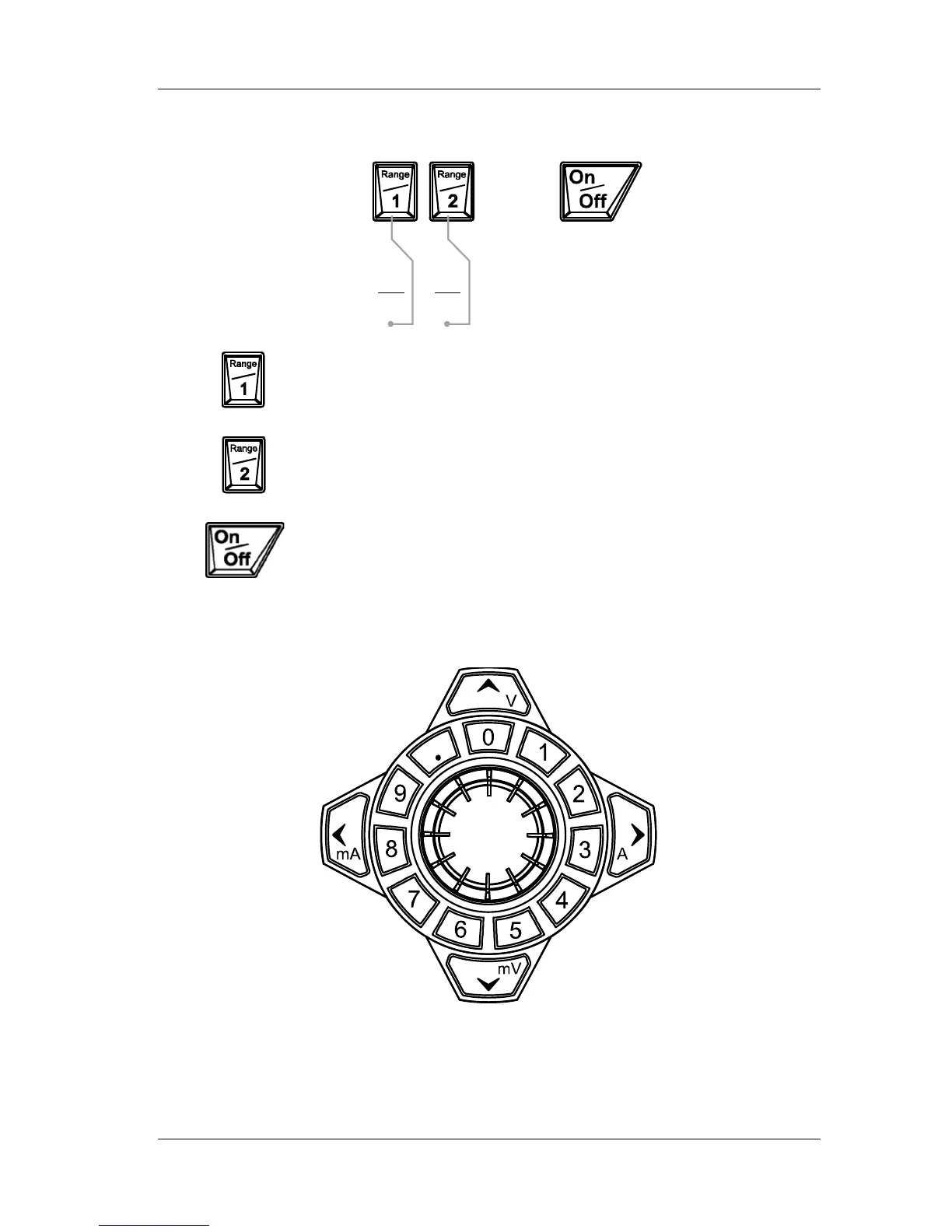

The parameter input area is as shown in the figure below. This area includes the
direction keys (unit selection keys), numeric keyboard and knob.
(1) Direction keys and unit selection keys
Direction keys: used to move the cursor. When setting parameters, use the
up/down direction key to increase or reduce the value at the cursor.
