Rigol DP800 Series Quick Guide

RIGOL
6 DP800 Quick Guide
Unit selection keys: when using the numeric keyboard to input parameters,
the keys are used to enter the voltage units (V and mV) or the current units
(A and mA).
(2) Numeric Keyboard
Ring-type numeric keyboard: include numbers 0-9 and the decimal point.
Press the corresponding key to input the number or decimal point.
(3) Knob
When setting parameters, rotate the knob to increase or reduce the value at
the cursor.
When browsing the setting objects (timing parameters, delay parameters,
filename input, etc), rotate the knob to quickly move the cursor.

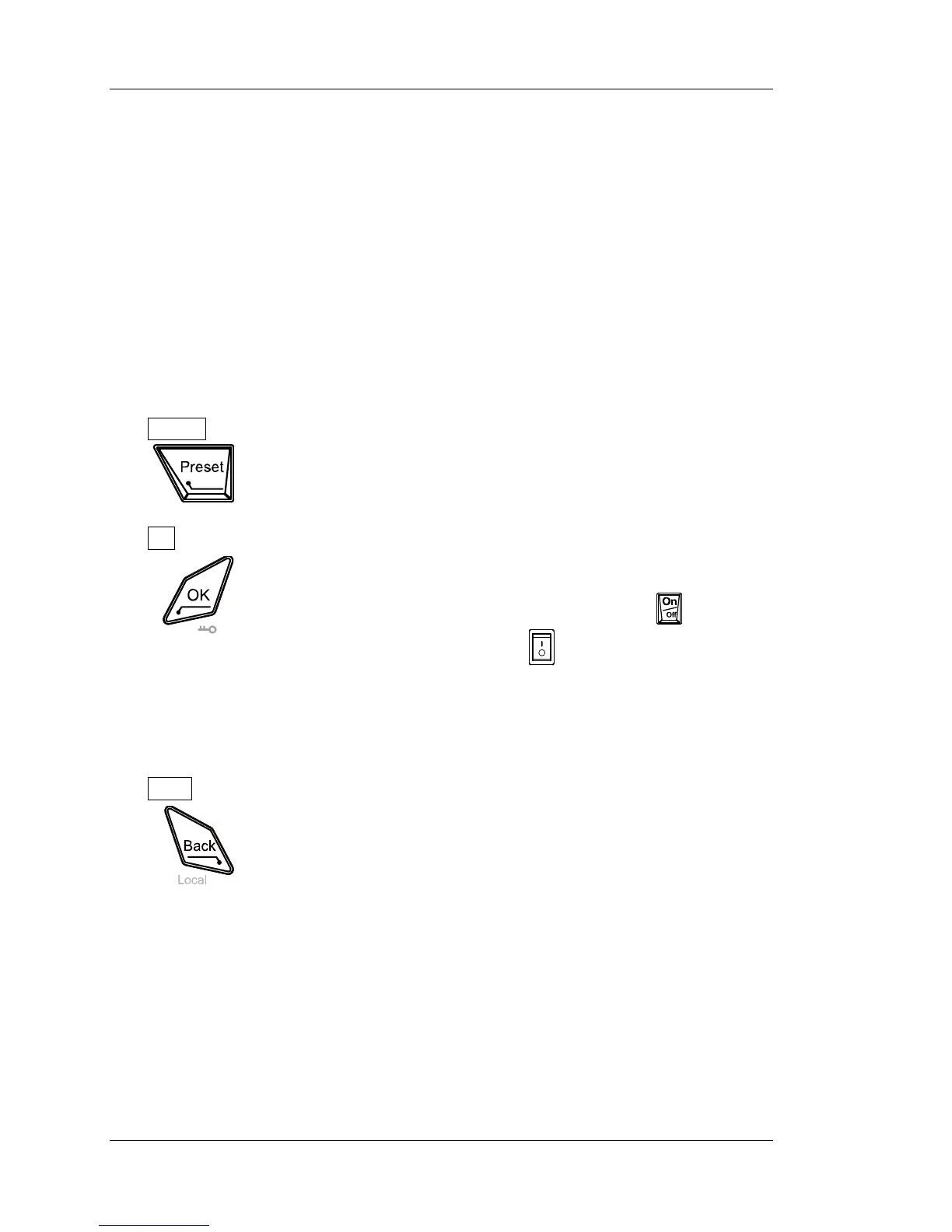

4. Preset
Restore all the settings of the instrument to default values or recall
the user-defined channel voltage/current configurations.
5. OK
Confirm the parameter setting.
Press and hold this key to lock the front panel keys; at this point,
the front panel keys (except the output on/off key
of each
channel and the power switch key
) are not available. When
the
keyboard lock password is disabled, press and hold this key
again to unlock the front panel keys. When the keyboard lock
password is enabled, you need to input the correct password
(2012) to unlock the front panel keys.
6. Back
Delete the character currently before the cursor.
When the instrument is in remote mode, press this key to return
to local mode.
