Installation Guide RIGOL
3

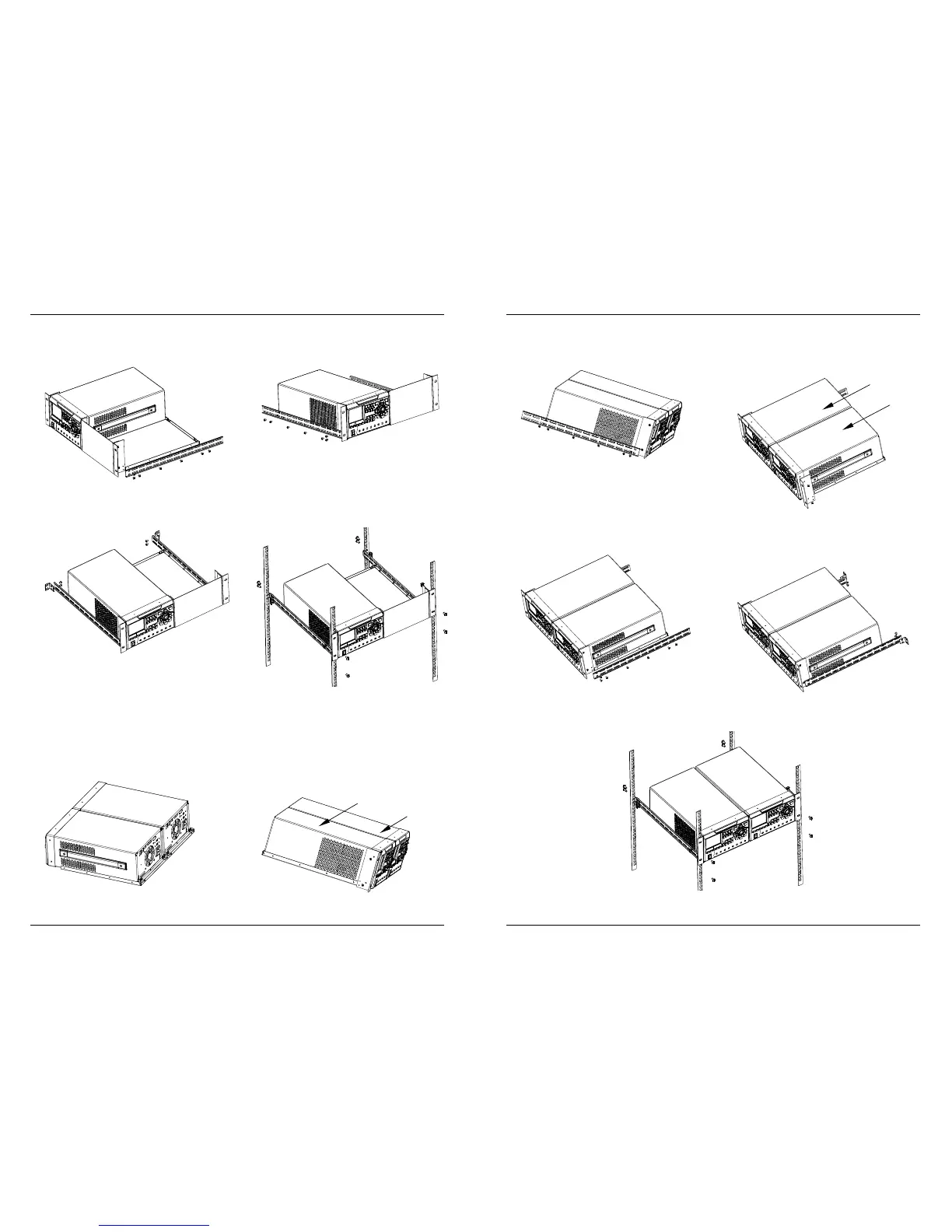

6. Attach one rail to the right side of the
bottom plate, then secure the rail with
seven M4 screws.
7. Attach the other rail to the left side of the
bottom plate, then secure the rail with
seven M4 screws.
8. Attach two side beam
f
astene
r
s to the end
parts of the two rails respectively, then
secure the side beam fasteners with four
M4 screws.
-End-
9. Mount the assembled instrument and
rack into a standard 19-inch cabinet using
eight M6 screws and eight M6 nuts.
Mount two instruments (Requiring to order RM-2-DP800)
1. Remove four rubber protective covers at the corner of the front panel and four at the
corner of the rear panel for each instrument.
2. Place two instruments onto the bottom
plate, then use four M4 screws to fasten the
instruments.
3. Attach the left
f
astener to the left side of
the front panel of Instrument A, then
secure the left fastener with two M4
screws.
Instrument A
Instrument B
Installation Guide RIGOL
4
4. Attach one rail to the left side of the bottom
plate, then secure the rail with seven M4
screws.
5. Attach the right
f
astener to the right side
of the front panel of Instrument B, then
secure the right fastener with two M4
screws.
6. Attach the other rail to the right side of the
bottom plate, then secure the rail with
seven M4 screws.
7. Attach two side beam
f
astene
r
s to the
end parts of the two rails respectively,
then secure the side beam fasteners with
four M4 screws.
8. Mount the assembled instruments and rack into a standard 19-inch cabinet using eight
M6 screws and eight M6 nuts.
-End-
Instrument A
Instrument B
