User’s Guide for DS1000E, DS1000D Series
2-3

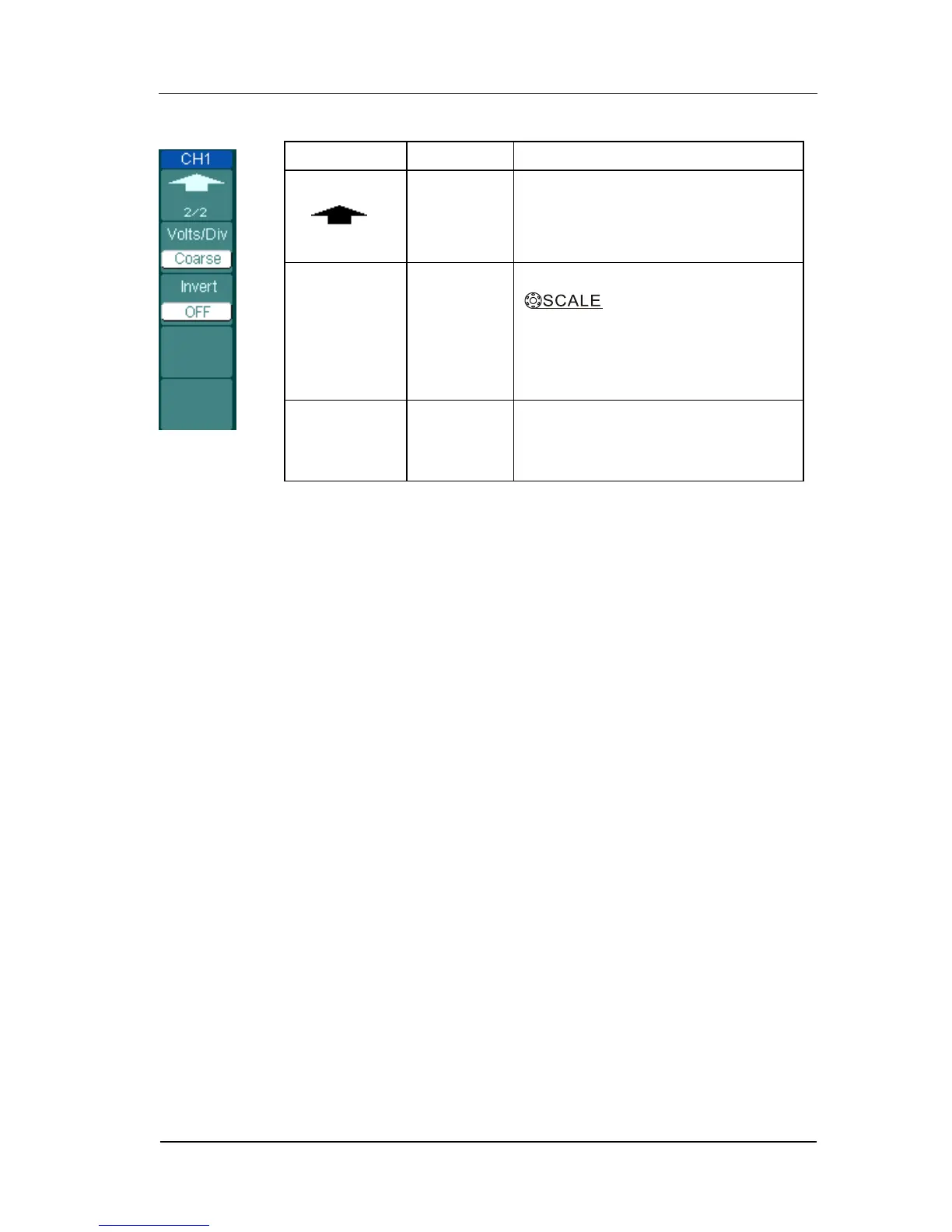

Figure 2- 2 Table 2- 2 The Channel menu (Page 2/2)
Menu
Settings
Comments
2/2
Back to the previous menu page
(The followings are the same, no
more explanation)
Volts/Div
Coarse
Fine
Selects the resolution of the
knob
Defines a 1-2-5 sequence.
To change the resolution to small
steps between the coarse settings.
Invert
ON
OFF
Turn on the invert function.
Restore original display of the
waveform.
