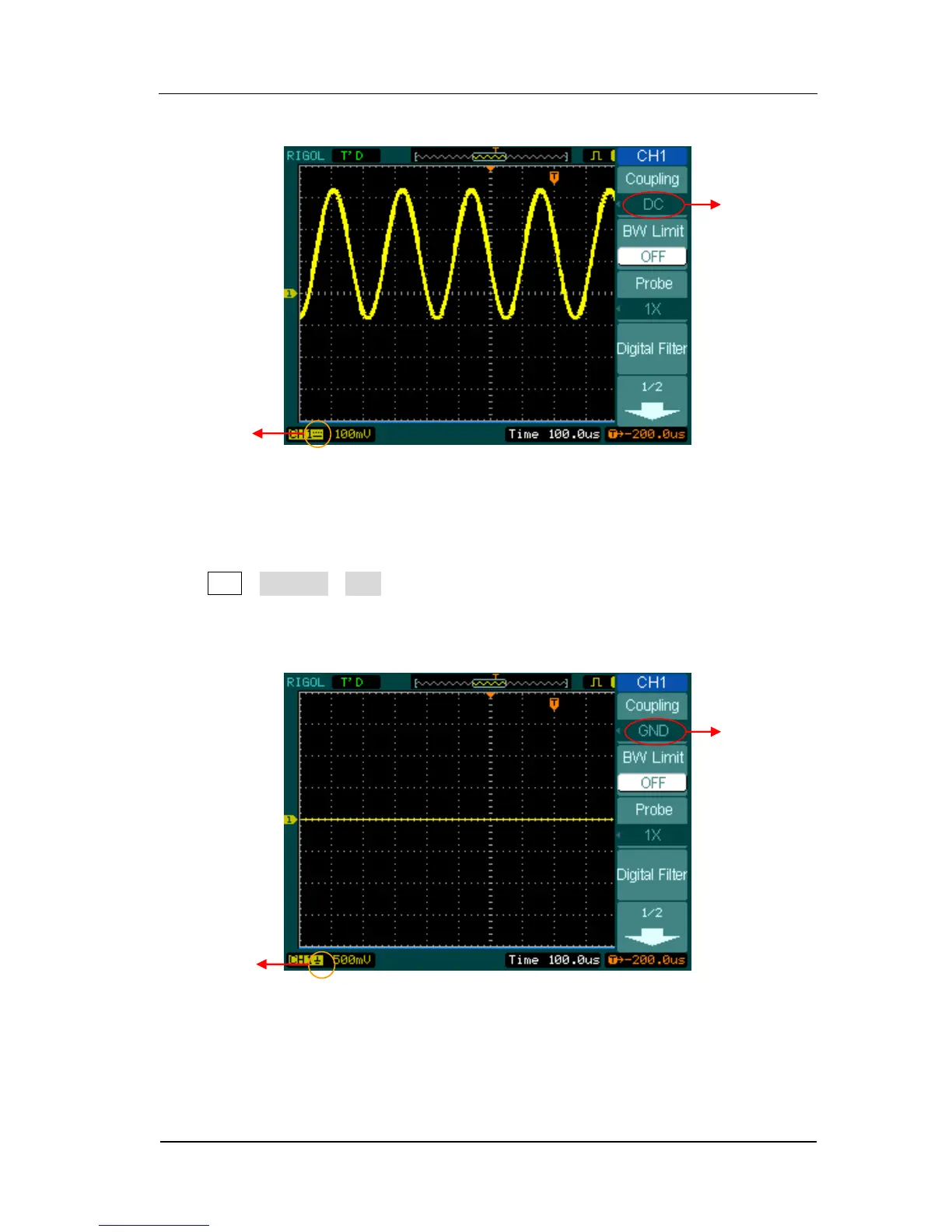

Figure 2- 4
DC coupling setting
Press CH1→Coupling→GND, to set “GND” coupling, it disconnects the input signal.
The screen displays as Figure 2-5:
Figure 2- 5
GND coupling setting
GND coupling
setup
GND coupling
status symbol
DC coupling
setup
DC coupling
status symbol
