User’s Guide for DS1000E, DS1000D Series
2-9
4. Volts/Div settings
The Volts/Div control has Coarse or Fine configuration. The Vertical Sensitivity is
2mV/div - 10V/div.
Coarse: It is the default setting of Volts/Div in a 1-2-5-step sequence from
2mV/div、5mV/div、10mV/div、20mV/div……10V/div.
Fine: This setting changes the vertical scale to small steps between the coarse
settings. It will be helpful to adjust the waveform in smooth steps.

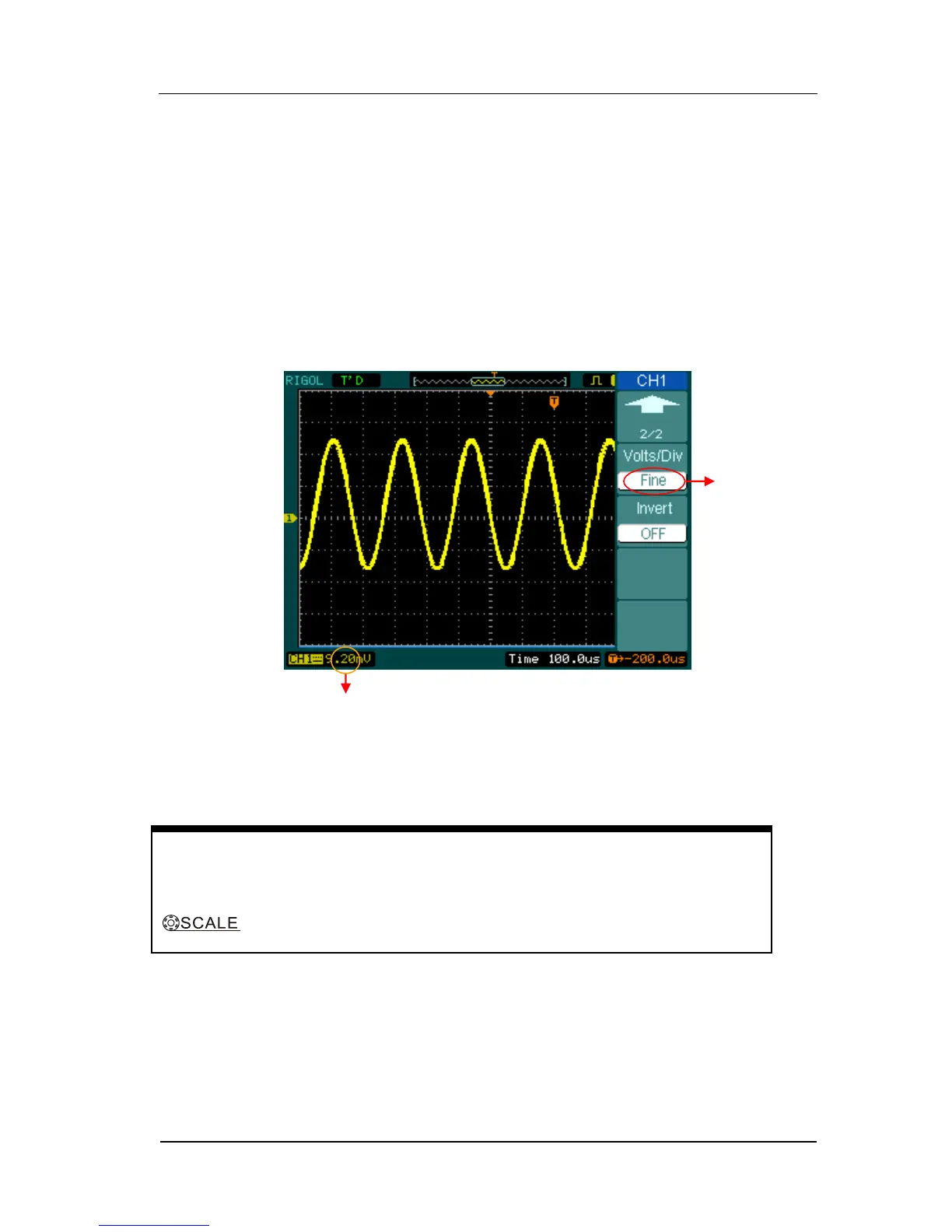

Figure 2- 9
Fine configurations
Coarse/Fine Shortcut key:
To change Coarse/Fine setting, not only by menu but also by pressing vertical
knob
Fine adjustment
Fine adjustment data
