User’s Guide for DS1000E, DS1000D Series
5. To invert a waveform
Invert turns the displayed waveform 180 degrees, as respect to the ground level.
When the oscilloscope is triggered on the inverted signal, the trigger is also inverted.

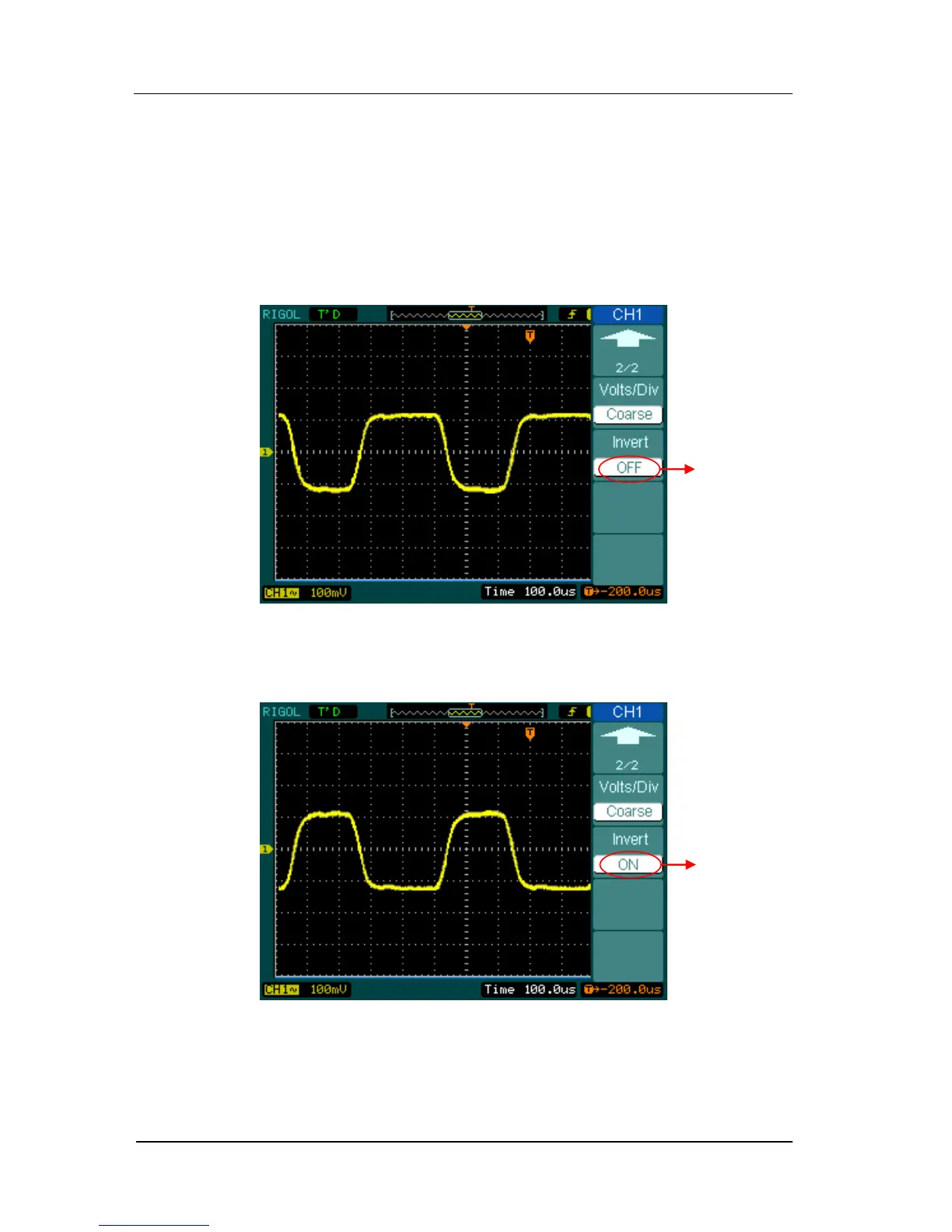

Figure 2- 10 and Figure 2- 11 show the changes after inversion.
Figure 2- 10
The waveform before inversion
Figure 2- 11
The waveform after inversion
