Digital Filter:
Press CH1→Digital filter, display the digital filter menu. Turn ( ) knob to set high
and low limit of frequency.

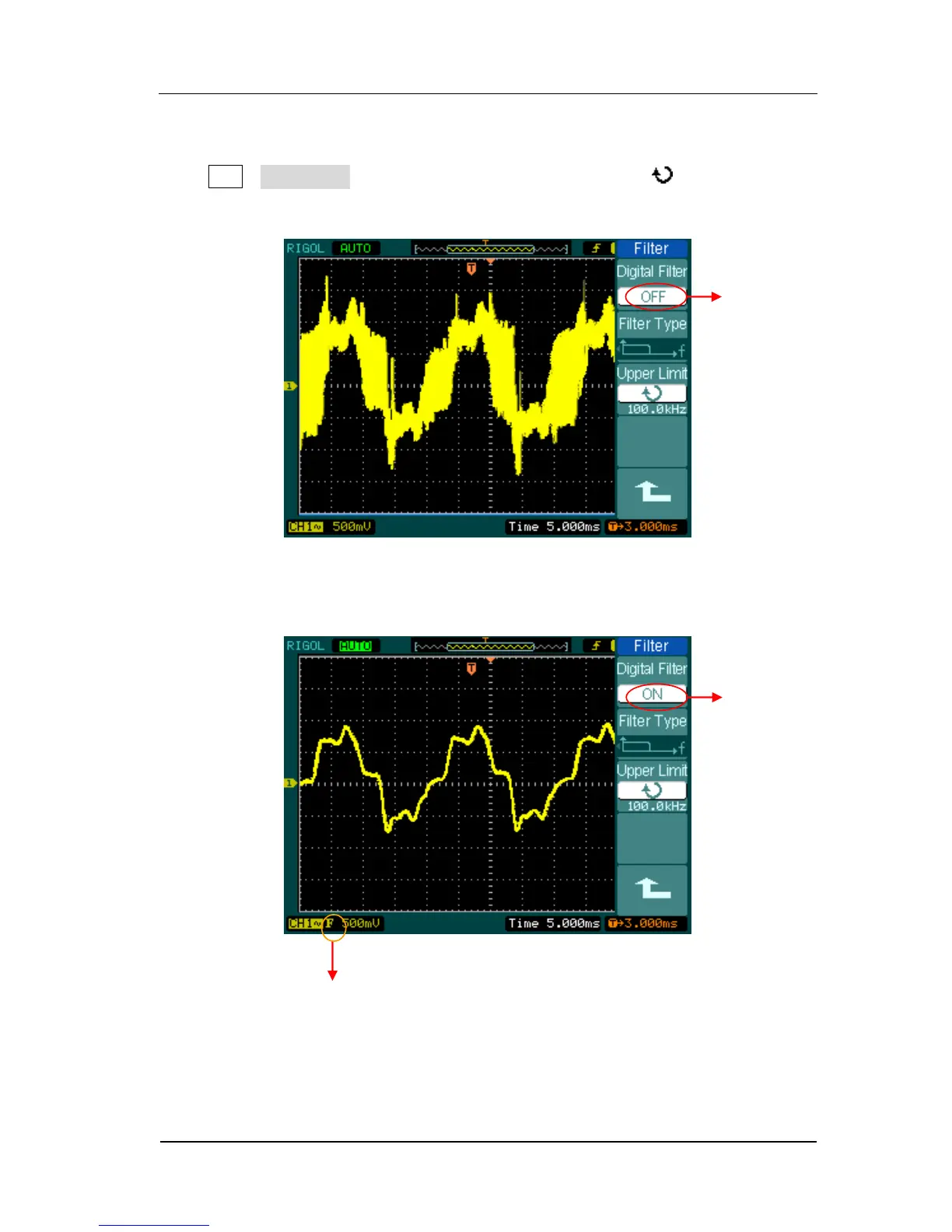

Figure 2- 12
The waveform when turning off digital filter
Figure 2- 13
The waveform when turning on digital filter
Turn off digital filter
Turn on digital filter
Mark of digital filter
