Mask Setting
Users can create, save, load and import/export the Pass/Fail mask by this function.
Press Utility→Pass/Fail→Mask Setting to go to the following menu.

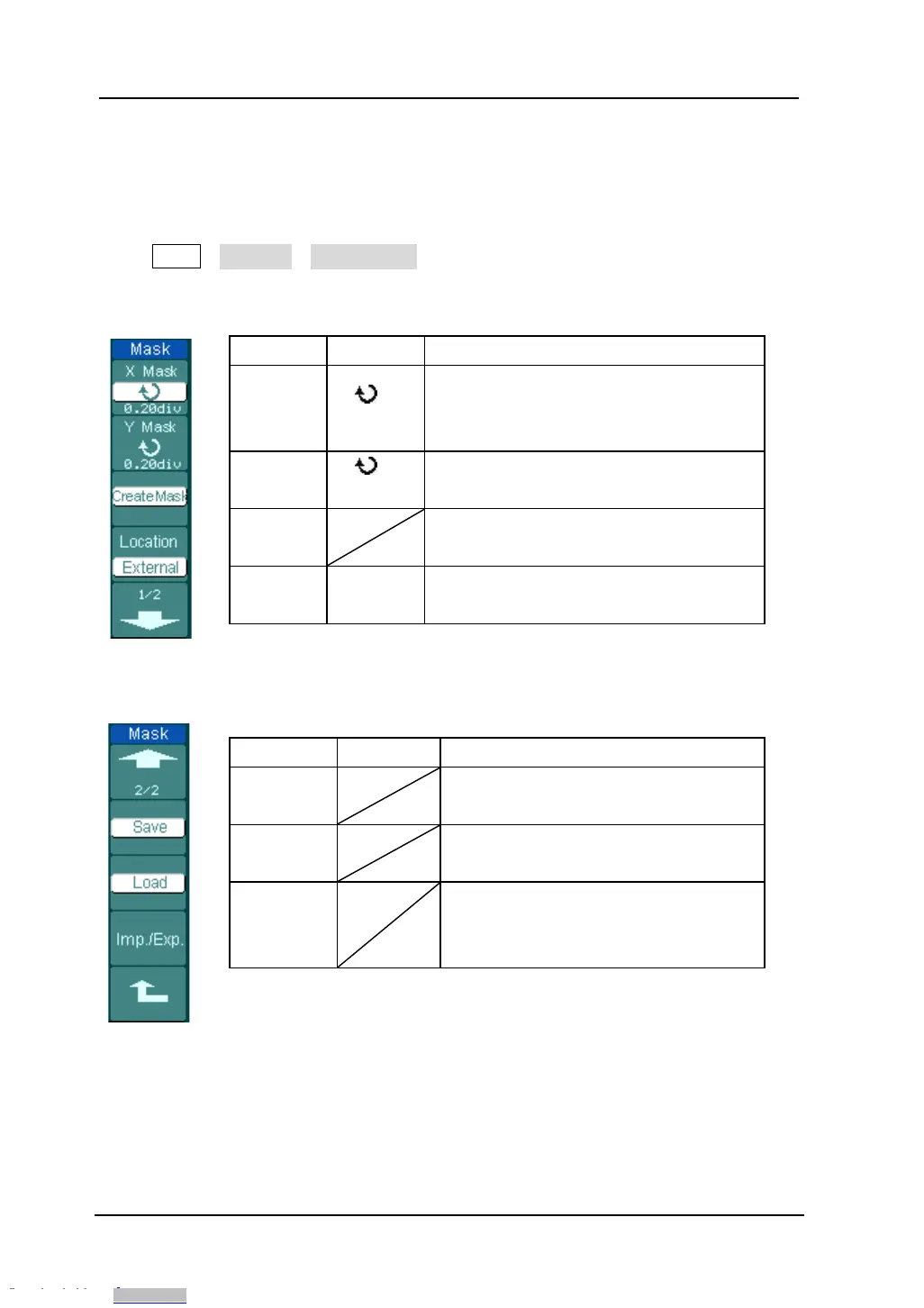

Figure 2- 96 Table 2- 60 The Mask setting menu (Page 1/2)
Menu
Settings
Comments
X Mask
< x div>
Set horizontal clearance to the
waveform
(0.04div-4.00div)
Y Mask
< y div>
Set vertical clearance to the waveform
(0.04div-4.00div)
Create
Mask
Create a test mask according to the
above clearance
Location
Internal
External
Set the memory location of the mask
files.
Figure 2- 97 Table 2- 61 The Mask setting menu (Page 2/2)
When the save as Internal memory
Menu
Settings
Comments
Save
Store created test mask into internal
memory
Load
Recall mask setting file from
internal memory
Imp./Exp.
Go to import/export menu (same as
REF import/export menu. See table
2-10)
