User’s Guide for DS1000E, DS1000D Series
2-73

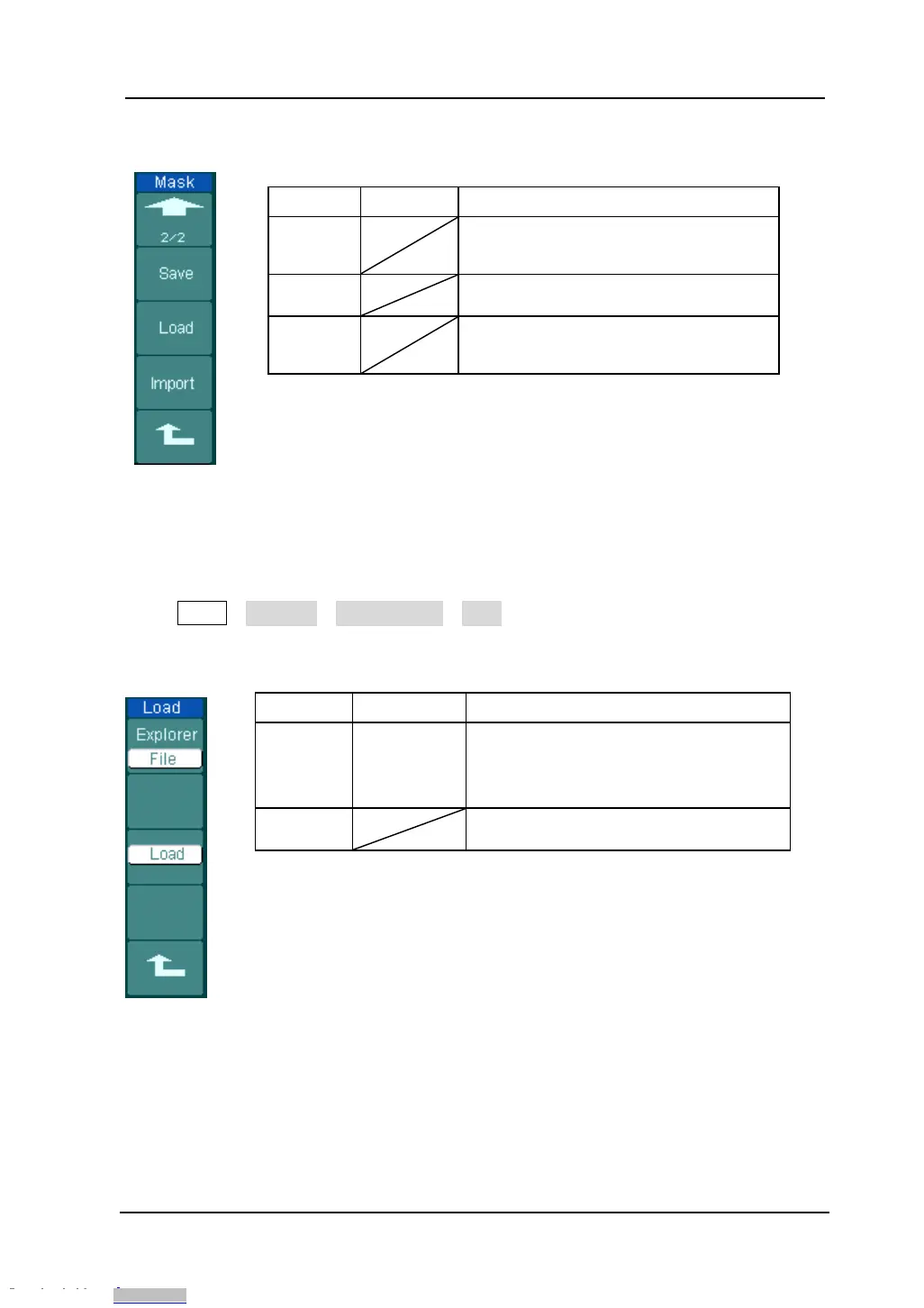

Figure 2- 98 Table 2- 62 The Mask setting menu (Page 2/2)
When the save as external memory
Menu Settings Comments
Save
Go to save menu (same as REF save
menu. See table 2-12)
Load Go to load menu see table 2-63
Import
Go to
import menu. (same as REF
import menu see table 2-14)
Load
Press Utility→Pass/Fail→Mask Setting→Load to enter the following menu.
Figure 2- 99 Table 2- 63 The Load menu
Menu
Settings
Comments
Explorer
Path
Directory
File
Switch among Path, Directory and
File
Load Recall the specified file
NOTE: Pass/Fail function is unavailable in X-Y mode.
