User’s Guide for DS1000E, DS1000D Series
2-74
Pass/Fail connection
In Pass/Fail testing output circuit, the Oscilloscope adopts the technique of Optical
Isolation. It needs to connect to another circuit to fulfill the function.
Before connecting to an external circuit, make sure the maximum voltage/current
does not exceed 400V/100mA. The output device has no polarity limit and can be
connect arbitrarily.

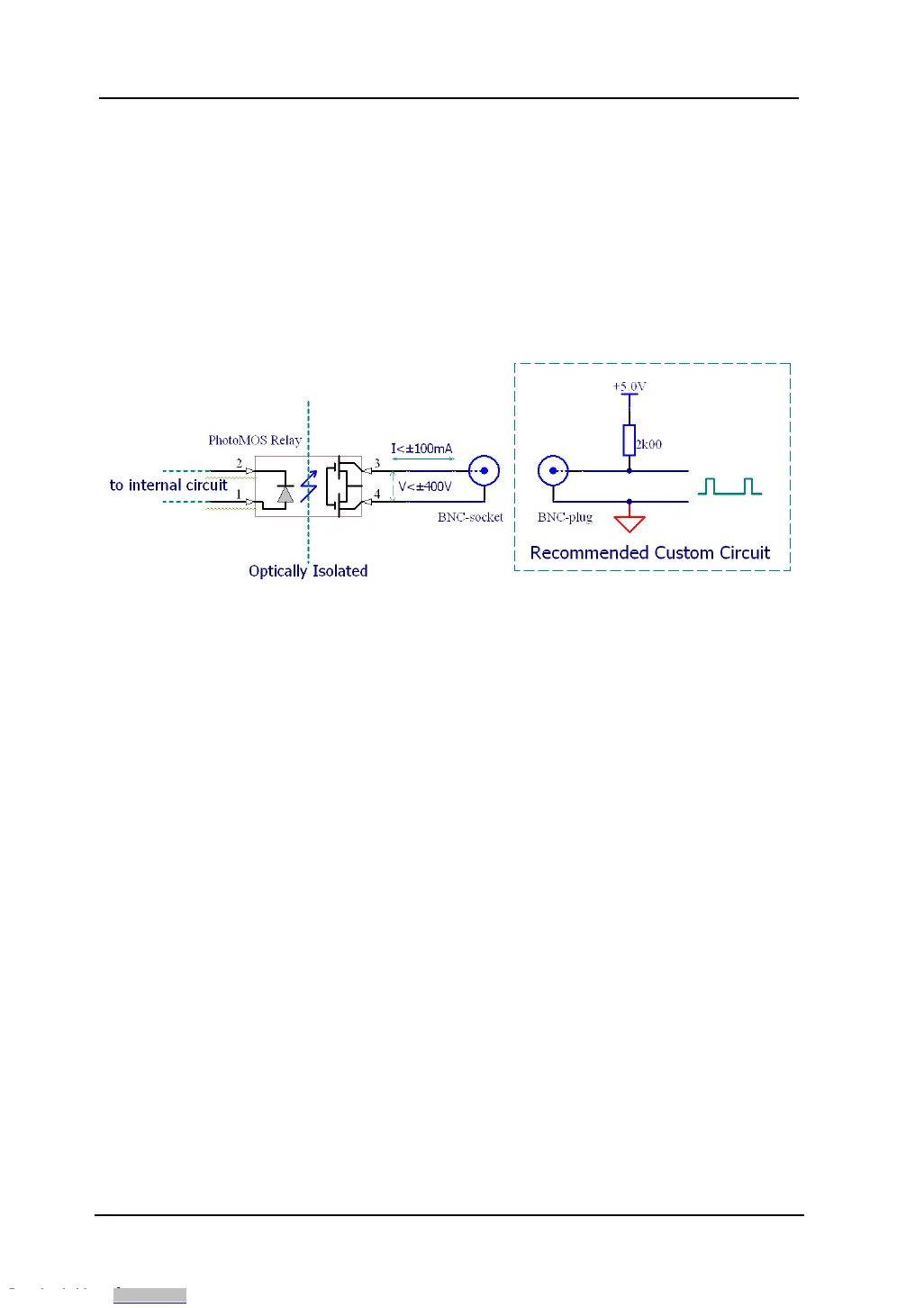

Figure 2- 100
Schematic Diagram of Pass/Fail output
