User’s Guide for DS1000E, DS1000D Series
2-89
10 Voltage Measurement Parameters

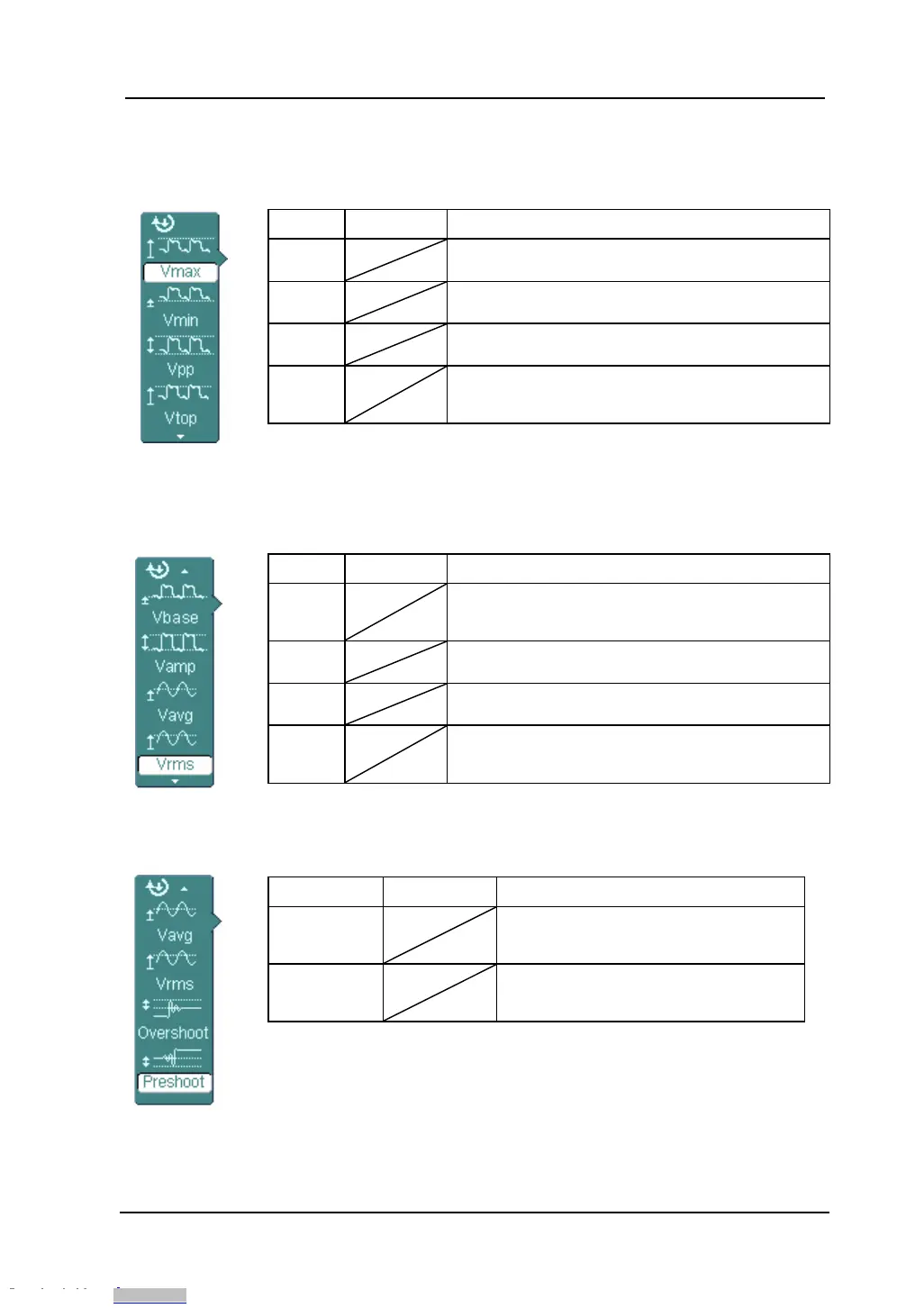

Figure 2- 123 Table 2- 78 The Voltage Measurements menu (Page 1/3)
Menu Settings Comments
Vmax Measure maximum voltage of a waveform
Vmin Measure minimum voltage of a waveform
Vpp Measure Peak-to-Peak Voltage
Vtop
Measure a flat top voltage of a square
waveform
Figure 2- 124 Table 2- 79 The Voltage Measurements menu (Page 2/3)
Menu
Settings
Comments
Vbase
Measure a flat base voltage of a square
waveform
Vamp Measure voltage between Vtop and Vbase
Vavg Measure average voltage of a waveform
Vrms
Measure Root Mean Square Voltage of a
waveform
Figure 2- 125 Table 2- 80 The Voltage Measurements menu (Page 3/3)
Menu Settings Comments
Overshoot
Measure overshoot in percentage
of an edge
Preshoot
Measure preshoot in percentage of
an edge
