Rigol DS1000E Series

RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000E, DS1000D Series
2-90

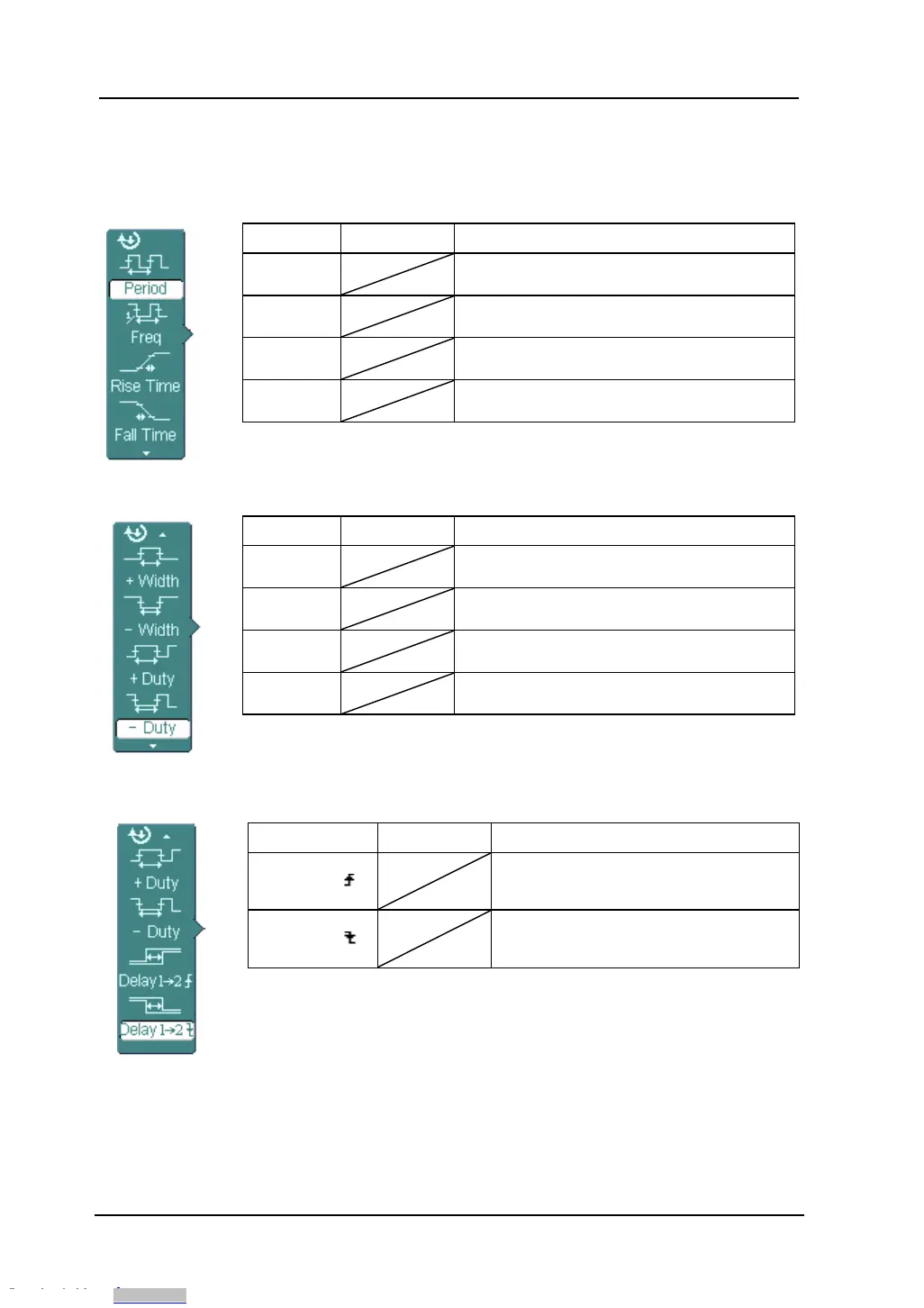

10 Time Measurement Parameters
Figure 2- 126 Table 2- 81 The Time Measurements menu (Page 1/4)
Menu Settings Comments
Period Measure Period of a waveform
Freq Measure Frequency of a waveform
Rise time Measure Rise Time of a rising edge
Fall time Measure Fall Time of a falling edge
Figure 2- 127 Table 2- 82 The Time Measurements menu (Page 2/4)
Menu
Settings
Comments
+Width Measure +Pulse Width of a pulse wave
-Width Measure –Pulse Width of a pulse wave
+Duty Measure +Duty Cycle of a pulse wave
-Duty Measure –Duty Cycle of a pulse wave
Figure 2- 128 Table 2- 83 The Time Measurements menu (Page 3/4)
Menu Settings Comments
Delay1→2
Measure the signals delay between
two channels at the rising edge
Delay1→2
Measure the signals delay between
two channels at the falling edge
