User’s Guide for DS1000E, DS1000D Series
2-96

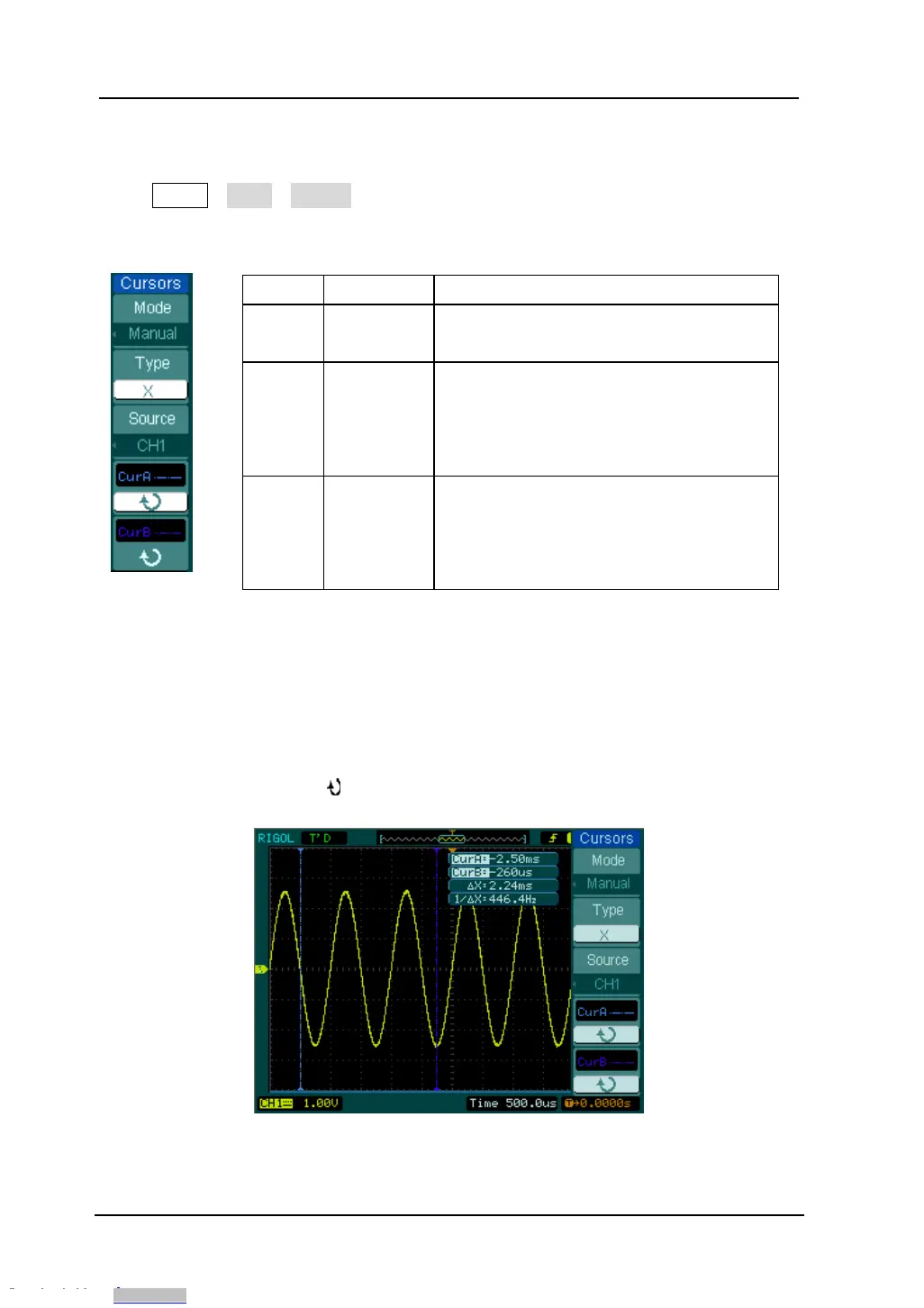

Manual Mode
Press Cursor→Mode→Manual to display the manual mode menu.
Figure 2- 134 Table 2- 85 The Manual Mode Menu
Menu Settings Comments
Mode Manual
Adjust the cursor to measure X/Y
parameters manually
Type
X
Y
Shown as vertical line to measure the
horizontal parameters
Shown as horizontal line to measure
the vertical parameters
Source
CH1
CH2
MATH
LA
Select the measurement signal source.
(LA is only for DS1000D series)
In this mode, the oscilloscope measures the Y or X coordinate values of the cursors,
and the increments between the two cursors.
When the cursor is in X type, a pair of vertical cursors CurA and CurB will be
appeared in the screen, whose time value could be measured separately as well as
the time difference between them, and which will be changed with the location of
cursor if you twirl the knob
.
Figure 2- 135
Manual Measure Mode of Cursor Measurement
