MSO2000A/DS2000A Quick Guide
9
Rear Panel Overview

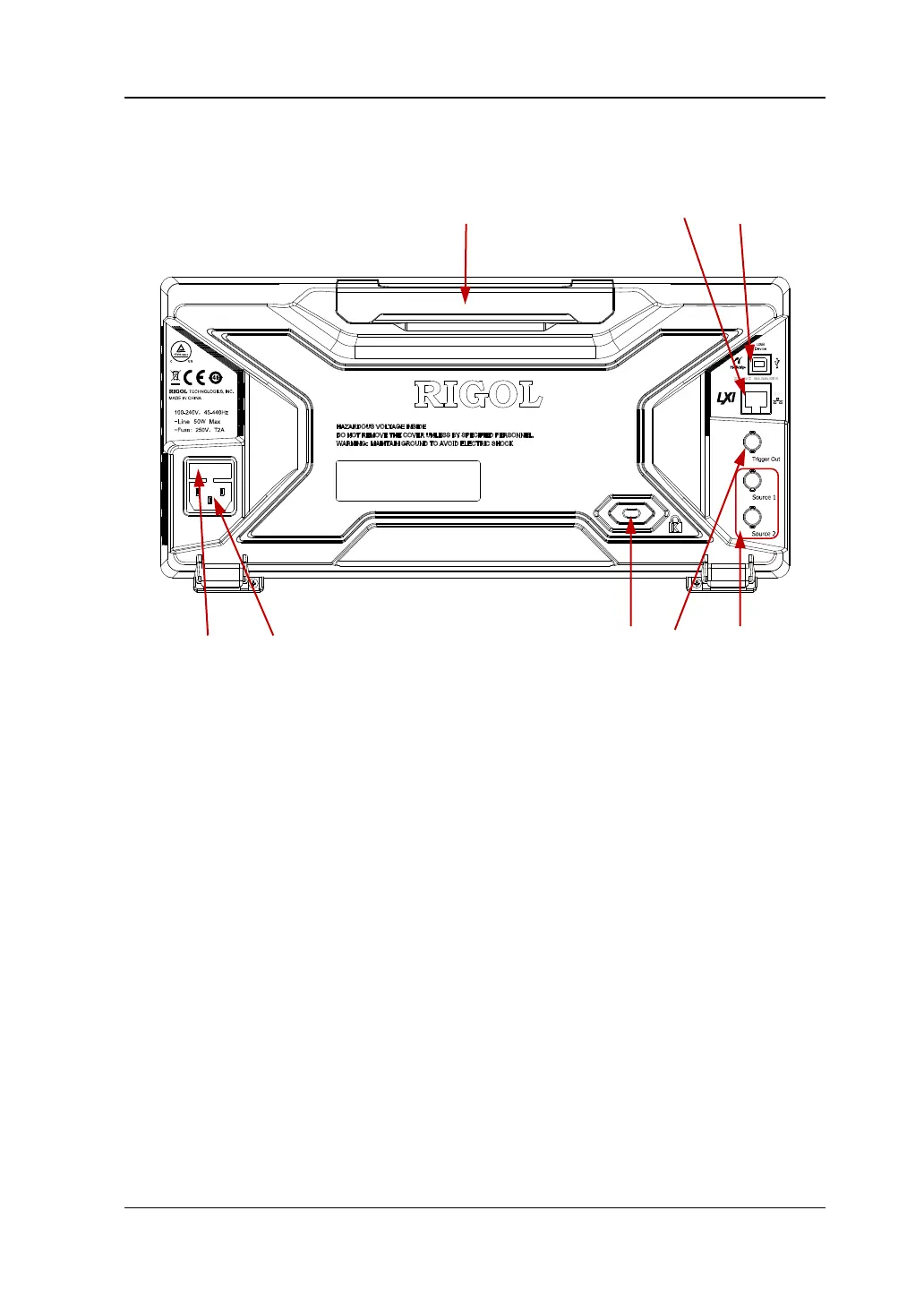

Figure 11 Rear Panel Overview
1． Handle
Pull up the handle vertically for easy carrying of the instrument. When you do
not need the handle, press it down.
2． LAN
Connect the instrument to the network via this interface for remote control. This
oscilloscope conforms to the LXI CORE 2011 DEVICE class instrument standards
and can quickly build test system with other instruments.
3． USB DEVICE
PictBridge printer or PC can be connected via this interface to print waveform
data or control the instrument using PC software.
4． Fuse
If a new fuse is required, please use the specified fuse (250V, T2A). The
operationmethod is as follows:
1 2 3
4 5 6 7 8
