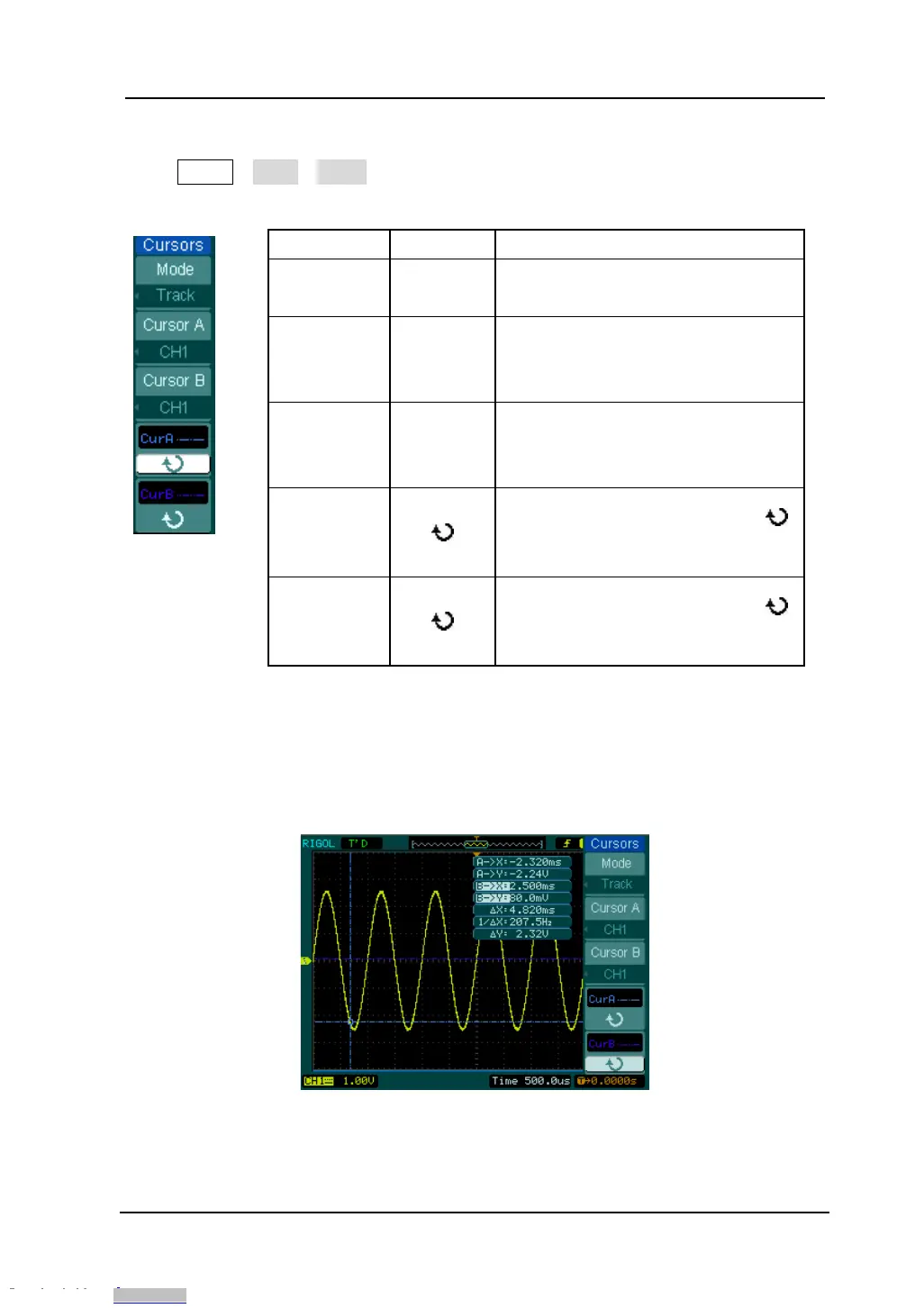

Track Mode
Press Cursor→Mode→Track to display the track mode menu.
Figure 2- 136 Table 2- 87 The Track Mode Menu
Menu
Settings
Comments
Mode Track
Set Track mode in cursor
measurement
Cursor A
CH1
CH2
None
Set Cursor A in conjunction with
CH1, CH2 or turn off Cursor A
Cursor B
CH1
CH2
None
Set Cursor B in conjunction with
CH1, CH2 or turn off Cursor B
CurA
(Cursor A)
Turn the multifunctional knob (
)
to move cursor A horizontally
CurB
(Cursor B)
Turn the multifunctional knob (
)
to move cursor B horizontally
In Track mode, the cross cursor is displayed on the waveform under measuring. If
you move the horizontal position of cursor, the horizontal coordinate and vertical
coordinate of current point as well as the increments of them will be displayed
immediately. Note: horizontal coordinate represents time value, vertical coordinate
represents voltage value.
Figure 2- 137
Track Measure Mode of Cursor Measurement
