User’s Guide for DS1000E, DS1000D Series
3-12
Example 8: FFT Cursor measurement
FFT measurements include: Amplitude measurement (Vrms or dBVrms) and
Frequency measurement (Hz).
Do these steps as follow:
1. Press Cursor→Manual.
2. Press Type to select X or Y.
3. Press Source to select FFT.
4. Turn ( ) knob to move the cursor to an interesting point.

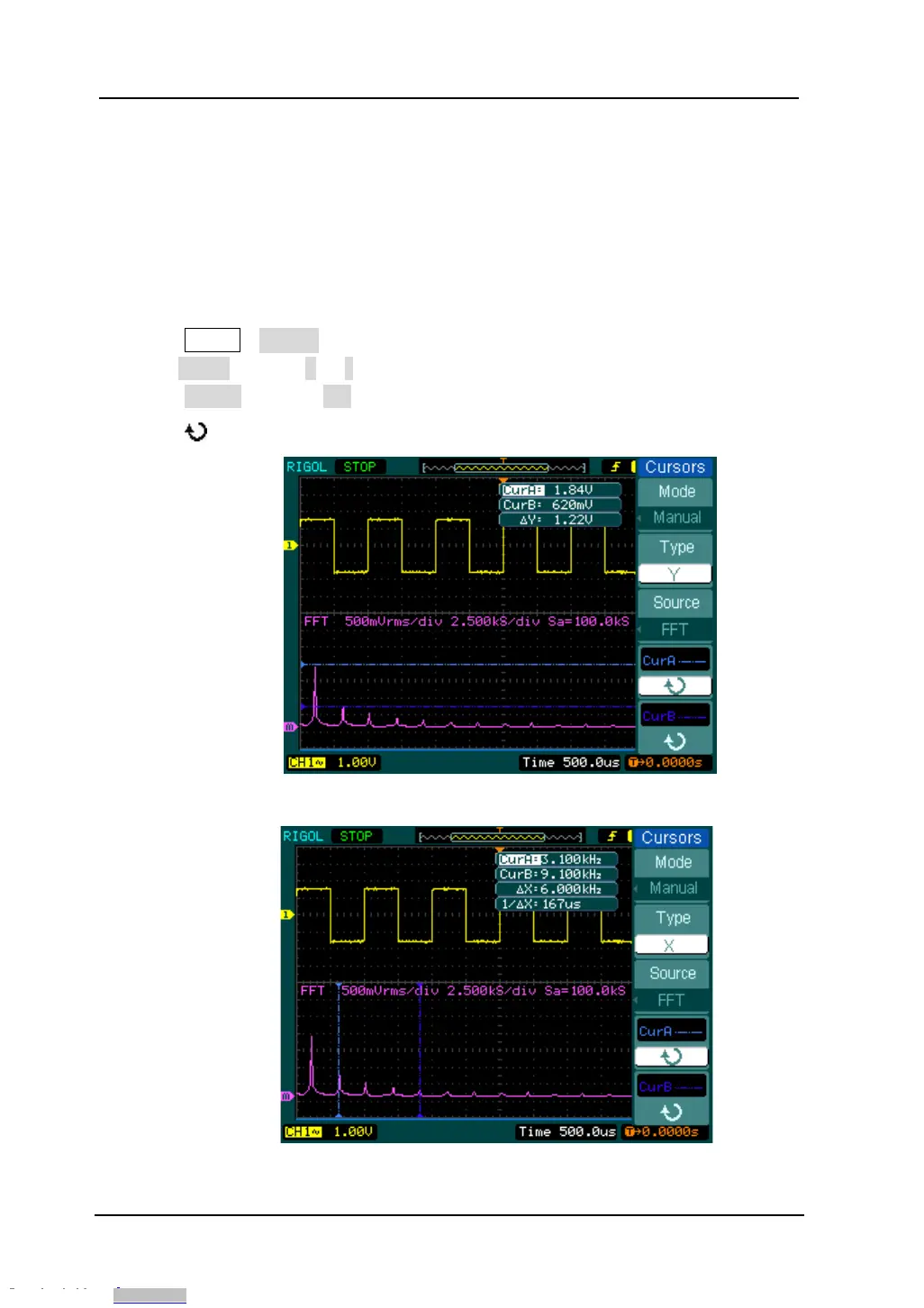

Figure 3- 9 The example of Cursor measuring FFT amplitude
Figure 3- 10 The example of Cursor measuring FFT frequency
