Rigol DS1052E Quick Guide

RIGOL
Quick Guide for DS1000E, DS1000D Series
3
How to Connect Probe or BNC
1． Connect the probe

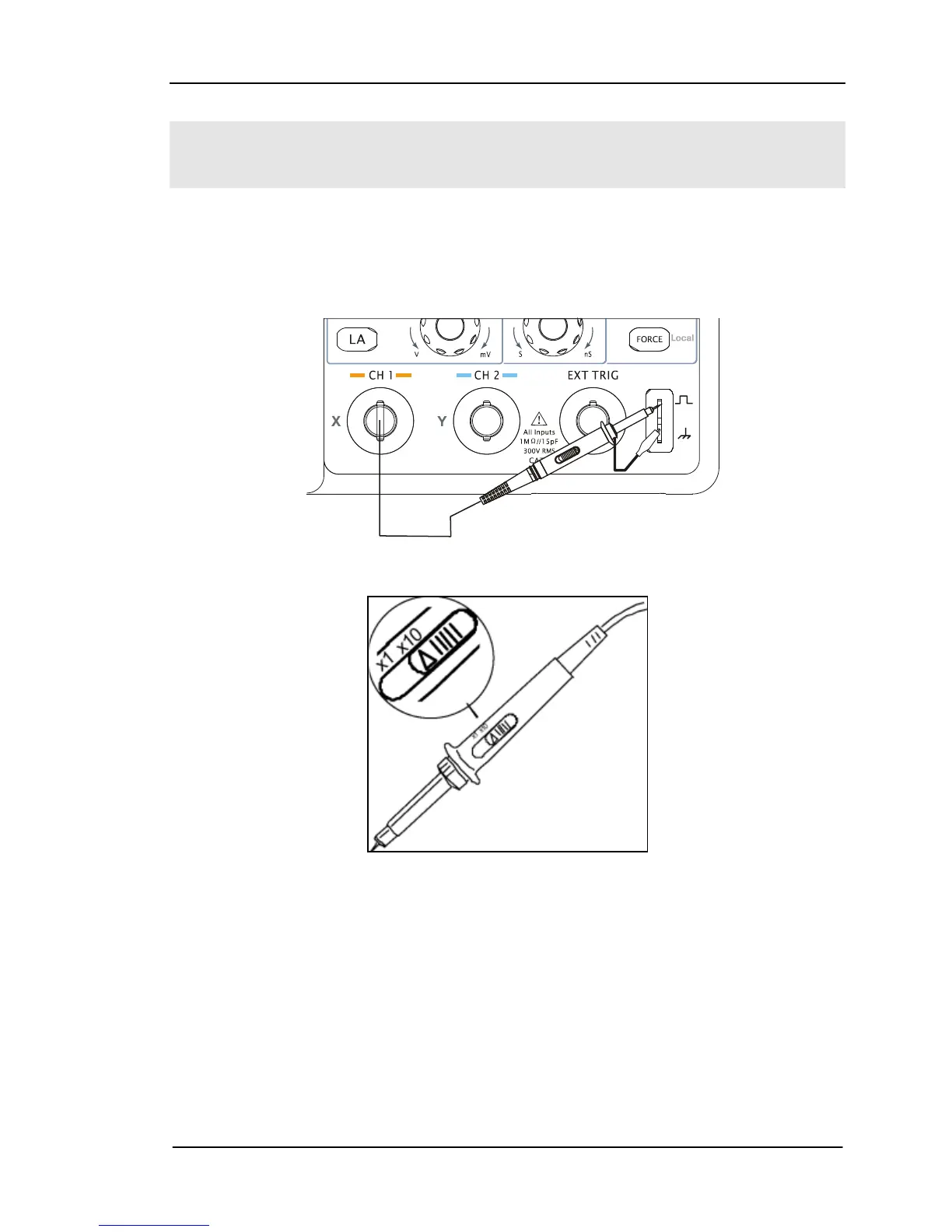

As shown in the above figures, set the attenuation switch on the
probe to 10X and connect the probe to Channel 1 on the
oscilloscope, push and rotate clockwise to lock the probe in place.
If your probe is a new one, or it is the first time you connect to the
oscilloscope, before use it, please do the following compensation
operation:

Rigol DS1052E Specifications

General

Bandwidth	50 MHz
Sample Rate	1 GSa/s
Channels	2
Memory Depth	1 Mpts
Vertical Sensitivity	2 mV/div to 10 V/div
Input Impedance	1 MΩ ± 2% || 15 pF ± 3 pF
Vertical Resolution	8 bits
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Power Supply	100-240 V AC, 45-440 Hz
Display	5.7 inch TFT LCD
Interfaces	USB Host, USB Device, RS-232
Dimensions	303 mm x 154 mm x 133 mm
