Rigol DS1052E User Manual

RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000E, DS1000D Series
2-87

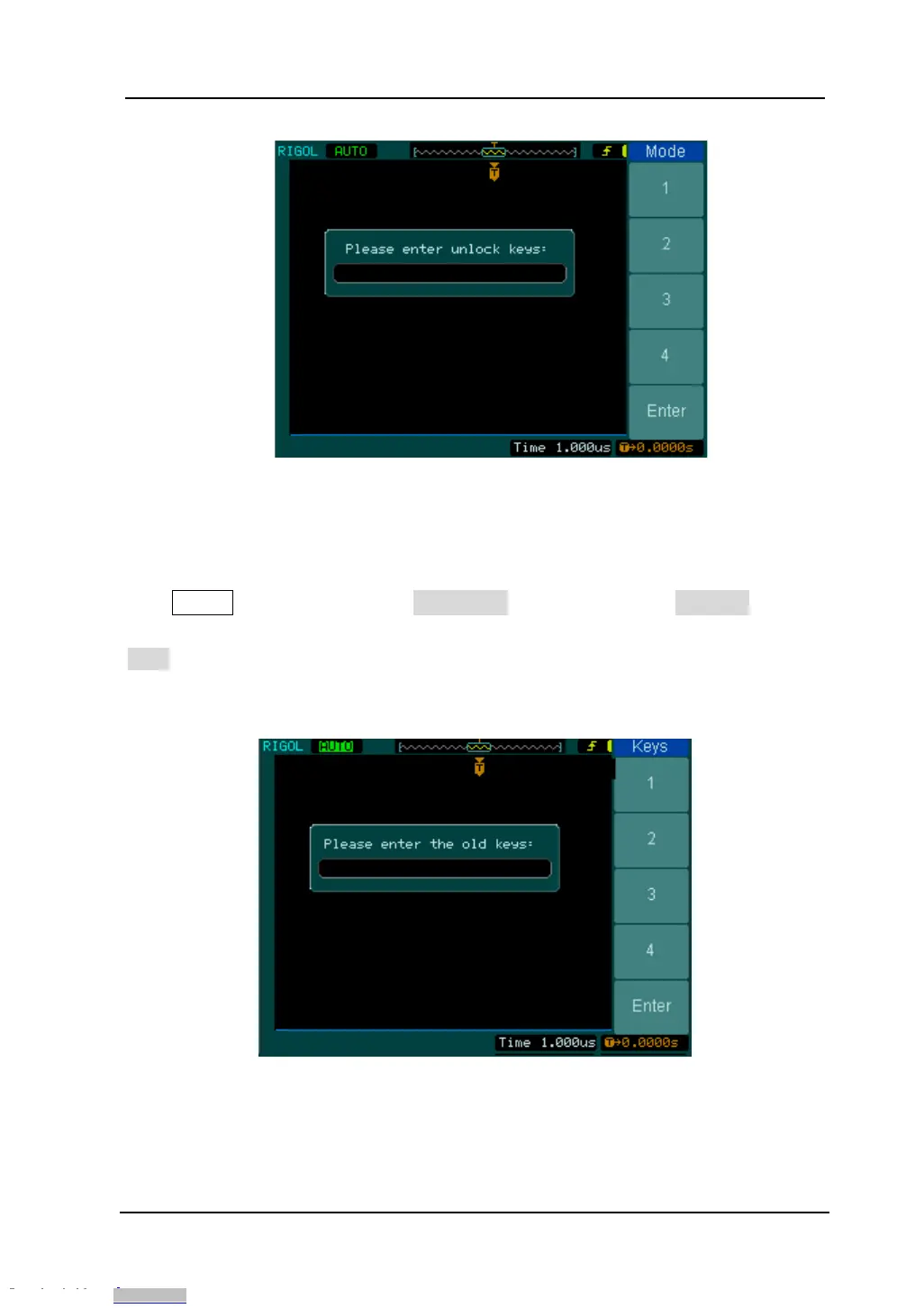

Figure 2- 119
Interface of keyboard unlock
3. Reset the keys
Press Utility button to choose the Preference menu, then choose set keys option in
second page of the menu just like the following figure. Input the old keys and press
Enter, input your new code and ensure it again, the system will clew that you have
finished new keys setting.
Figure 2- 120
Interface of key resetting
