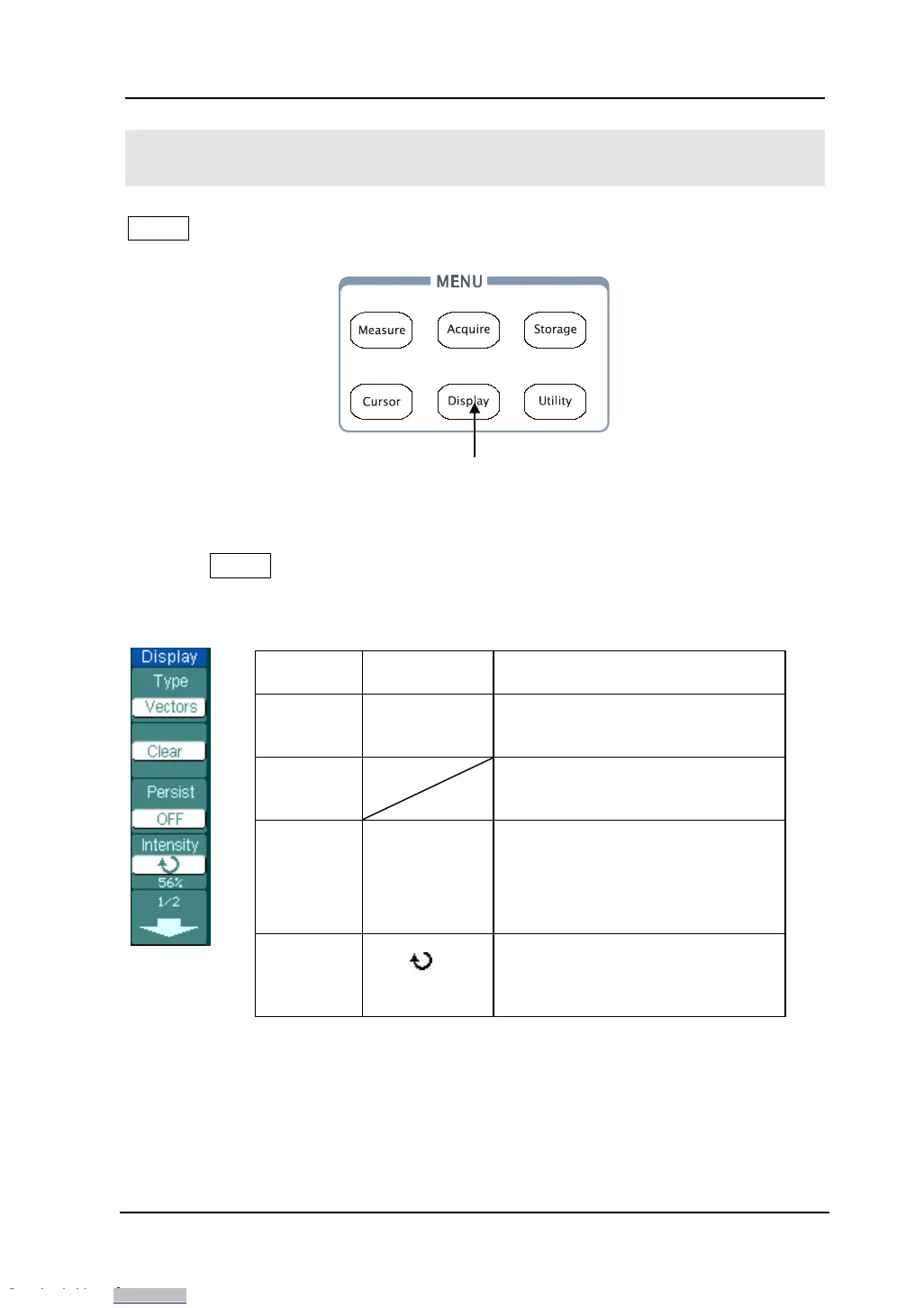

To Set up the Display System
Display shows the menu button for the display system on the front panel.
Figure 2- 73
Display setup button
Press the Display button to pop up the menu for the settings of the display system.
Figure 2- 74 Table 2- 43 The Display menu (Page 1/2)
Menu Setting Comments
Type
Vectors
Dots
Display waveforms as vectors
Display waveforms as dots
Clear
Clear all existing waveforms
from screen
persist
Infinite
OFF
The sample points remain
displayed until turn the
persistence “OFF”.
Turn off the persistence function
Intensity
<
percentage >
Set up waveform intensity, the
range is from 0% to 100%
