Rigol DS1052E User Manual

RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000E, DS1000D Series
1-6

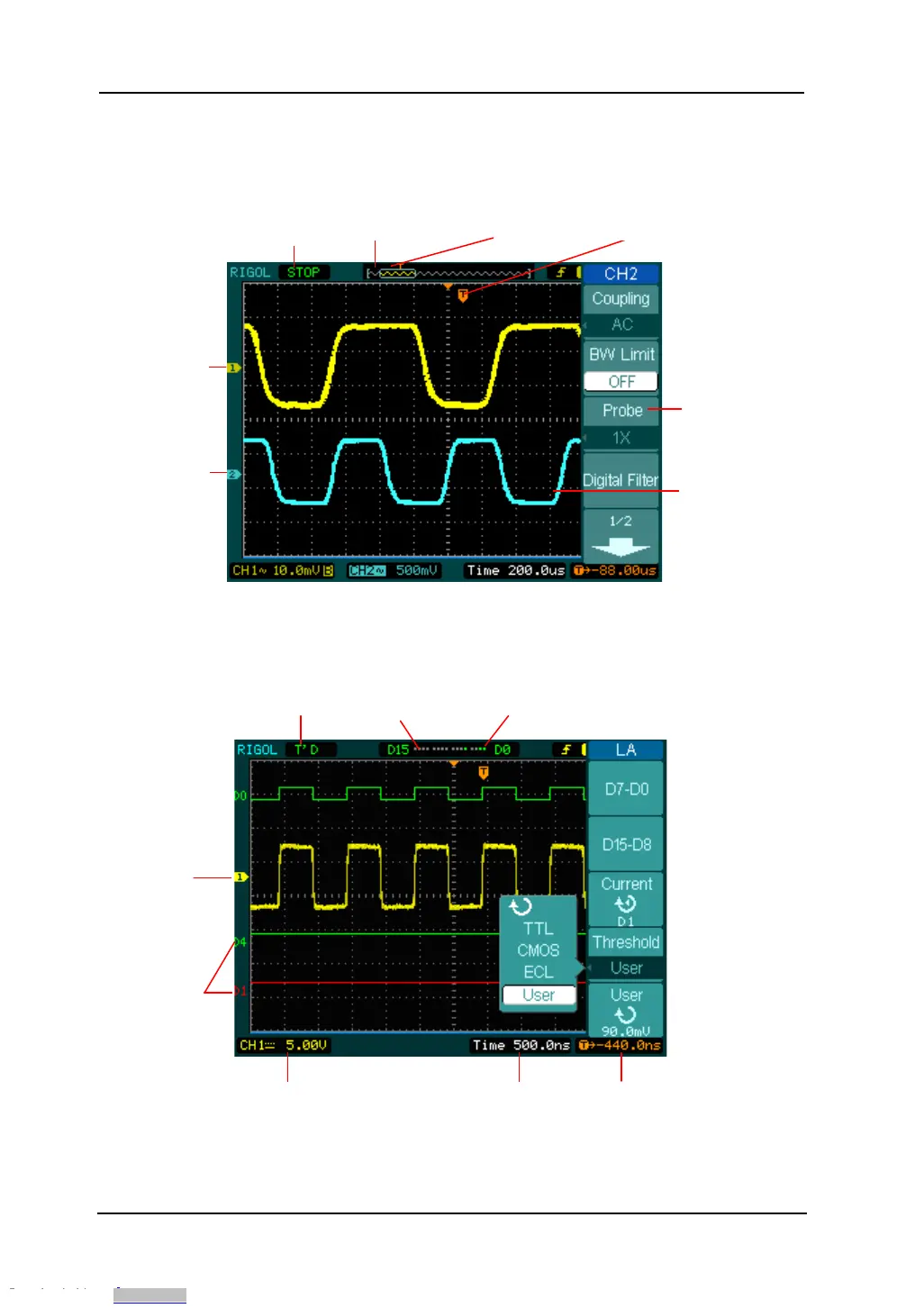

3. User Interface
Figure 1- 5
Display screen (Analog channels only)
Figure 1- 6
User Interface (Analog and Digital channels)
Waveform
display window
Menu
Channel 1
Channel 2
Running status
Location of
waveform window
in memory
Trigger point in
waveform window
Trigger point
in memory
Turn off
digital channels
Running status
Channel 1
Digital
channels
Horizontal
time base div
Trigger
offset
Channel coupling
and vertical div
Turn on
digital channels
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Rigol DS1052E Specifications

General

Bandwidth	50 MHz
Sample Rate	1 GSa/s
Channels	2
Memory Depth	1 Mpts
Vertical Sensitivity	2 mV/div to 10 V/div
Input Impedance	1 MΩ ± 2% || 15 pF ± 3 pF
Vertical Resolution	8 bits
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Power Supply	100-240 V AC, 45-440 Hz
Display	5.7 inch TFT LCD
Interfaces	USB Host, USB Device, RS-232
Dimensions	303 mm x 154 mm x 133 mm
