RIGOL Chapter 1 Quick Start

1-6 MSO1000Z/DS1000Z User’s Guide

Connect the logic probe:

1. Connect the single-wire terminal of the logic probe to the digital channel input

terminal at the front panel of the oscilloscope in the correct direction.

2. Connect the signal under test to the other terminal of the logic probe. MSO1000Z

series is provided with the RPL1116 logic probe (standard) which provides two

connecting methods to connect the signal under test to realize convenient and

flexible detection. For the details, please refer to the

RPL1116 Logic Probe User’s

Guide

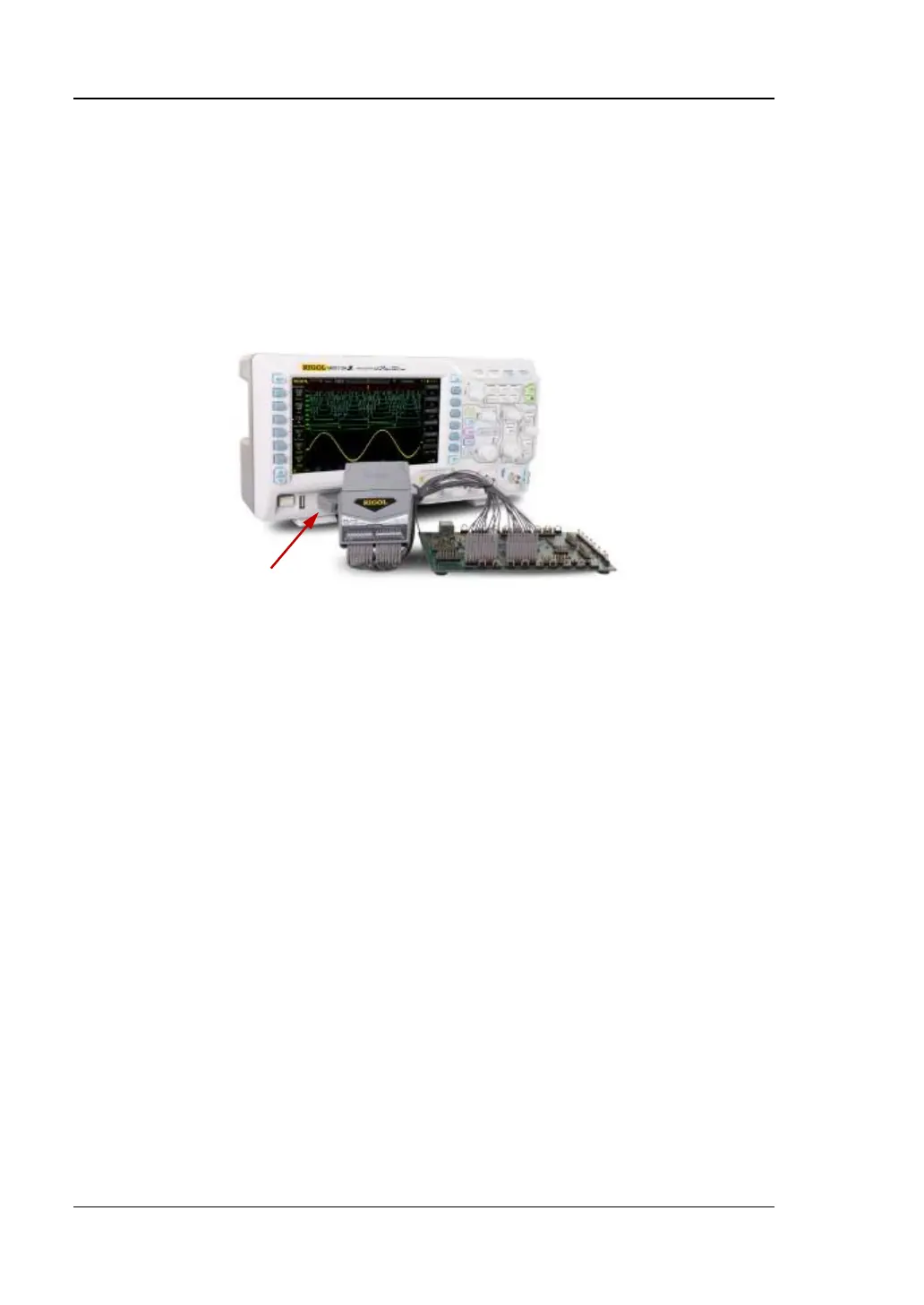

Figure 1-6 To Connect the Logic Probe

Note: The digital channel input terminal does not support hot plug. Please do not

insert or pull out the logic probe when the instrument is powered on.

Digital Channel Input Terminal
