Rigol DS1074Z Plus User Manual

Chapter 1 Quick Start RIGOL
MSO1000Z/DS1000Z User’s Guide 1-5
Power-on Inspection
When the oscilloscope is energized, pressing the power key
at the lower-left
corner of the front panel can start the oscilloscope. During the start-up process, the
oscilloscope performs a series of self-tests. After the self-test, the welcome screen is
displayed. The instrument is installed with the trial versions of the options before
leaving factory and the remaining trial time is about 2000 minutes. The "Current
Options" dialog box will be displayed if your instrument currently installs the trial
versions of options. From this dialog box you can view the name, detail, version and
remaining trial time of the option currently installed.
To Connect the Probe
RIGOL provides passive probe (standard) for DS1000Z series as well as passive
probe (standard) and logic probe (standard) for MSO1000Z series. For detailed
technical information of the probes, please refer to the corresponding Probe User’s
Guide.
Connect the passive probe:
1. Connect the BNC terminal of the probe to an analog channel input terminal of
the oscilloscope at the front panel.
2. Connect the ground alligator clip or spring of the probe to the circuit ground
terminal and connect the probe tip to the circuit point to be tested.

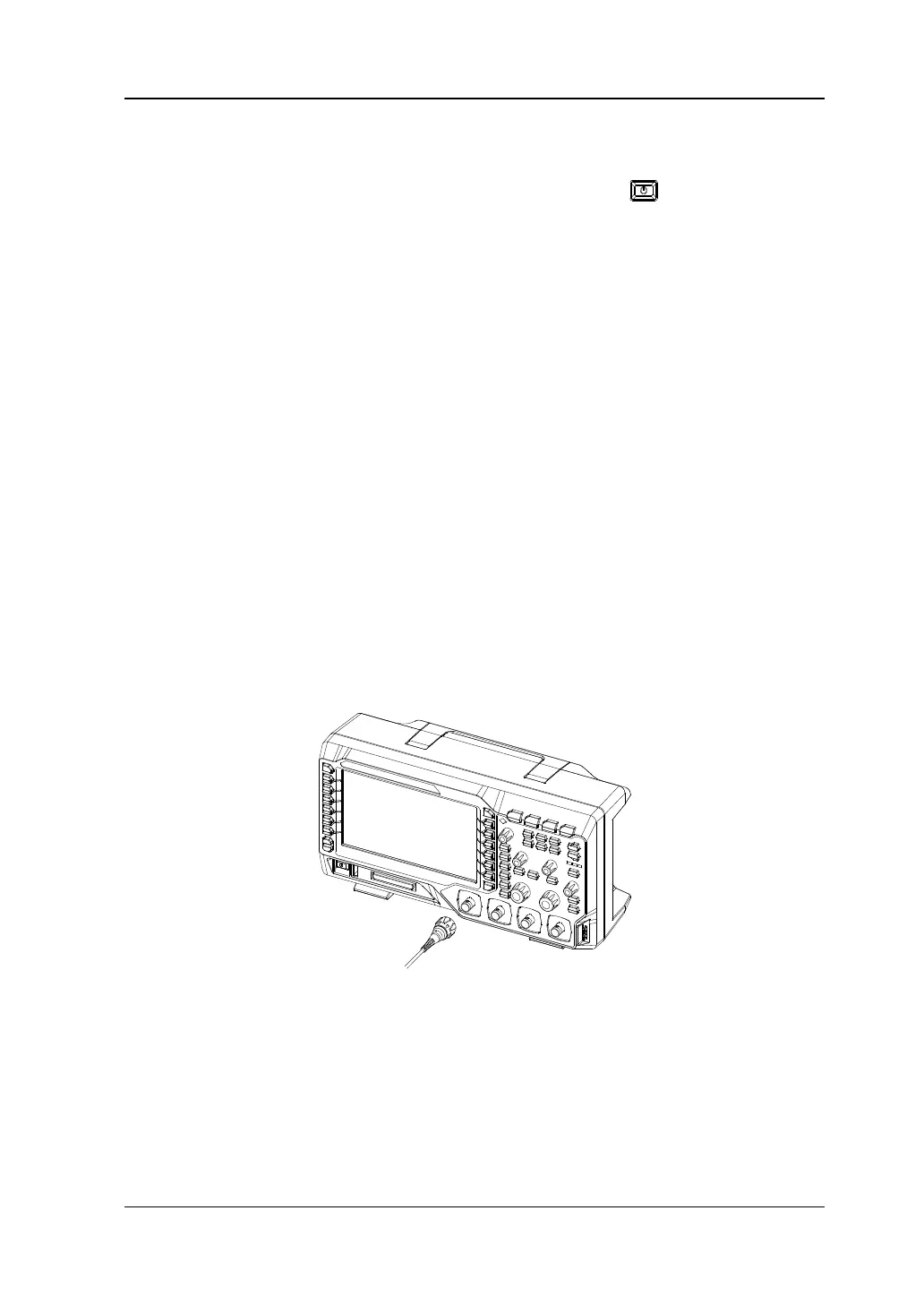

Figure 1-5 To Connect the Passive Probe
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Rigol DS1074Z Plus Specifications

General

Type	Tabletop
Product type	-
Certification	UL 61010-1:2004; CAN/CSA-C22.2 NO. 61010-1-2004; EN 61010-1:2001; IEC 61010-1:2001
Bandwidth	70 MHz
Sampling rate	- MS/s
Channels quantity	4 channels
Minimum time base setting (per division)	5 ns
Power consumption (max)	50 W
Display diagonal	7 \
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
