Rigol DS1074Z Plus User Manual

Chapter 2 To Set the Vertical System RIGOL
MSO1000Z/DS1000Z User’s Guide 2-5
and "Fine" adjustments.
When changing the vertical scale of the analog channel by rotating VERTICAL
SCALE, you can select to expand or compress the waveform around the "Center" or
"Ground". For more details, please refer to the introduction in "
Vertical
Reference".
Amplitude Unit
Select the amplitude display unit for the current channel. The available units are W, A,
V and U. When the unit is changed, the unit displayed in the channel label will
change accordingly.
Press CH1  Unit to select the desired unit and the default is V.
Channel Label
The instrument uses the number of the channel to mark the corresponding channel
by default. For ease of use, you can also set a label for each channel, for example,
" ". Press CH1  Label to enter the label setting menu. You can use the
built-in label or manually input a label. Manual input does not support the Chinese
input, and the length of the label cannot exceed 4 characters.
Press Display to turn on or off the channel label display. The default is CH1 when
the channel label display is enabled.
Press Template to select the preset labels such as CH1, ACK, ADDR, BIT, CLK, CS,
DATA, IN, MISO, MOSI, OUT, RX and TX, etc.

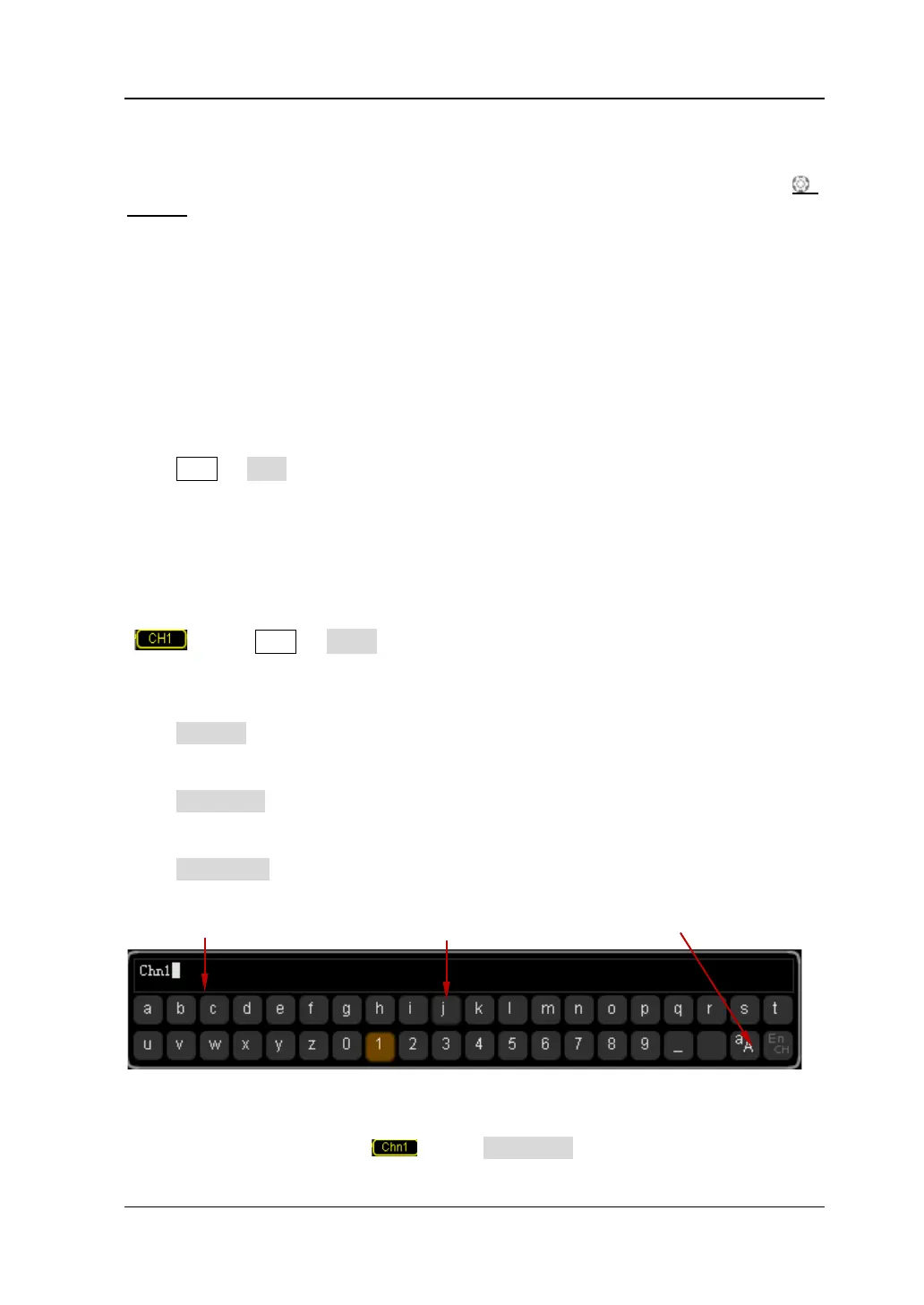

Press Label Edit and the label editing interface is automatically displayed as shown
in the figure below. You can input the label manually.
Figure 2-2 Label Editing Interface
For example, set the label to " ". Press Keyboard to select the "Keyboard" area.
Name Input Area Keyboard Upper/Lower Case Switch
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Rigol DS1074Z Plus Specifications

General

Type	Tabletop
Product type	-
Certification	UL 61010-1:2004; CAN/CSA-C22.2 NO. 61010-1-2004; EN 61010-1:2001; IEC 61010-1:2001
Bandwidth	70 MHz
Sampling rate	- MS/s
Channels quantity	4 channels
Minimum time base setting (per division)	5 ns
Power consumption (max)	50 W
Display diagonal	7 \
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
