DSA1000&DSA1000A Options&Accessories
4. Installation Procedures
A PH2 Phillips Screwdriver is recommended. Note that the instrument will be
damaged or installed in rack incorrectly if the installation is not proper. Thus, only
authorized operators can execute the installation operation.

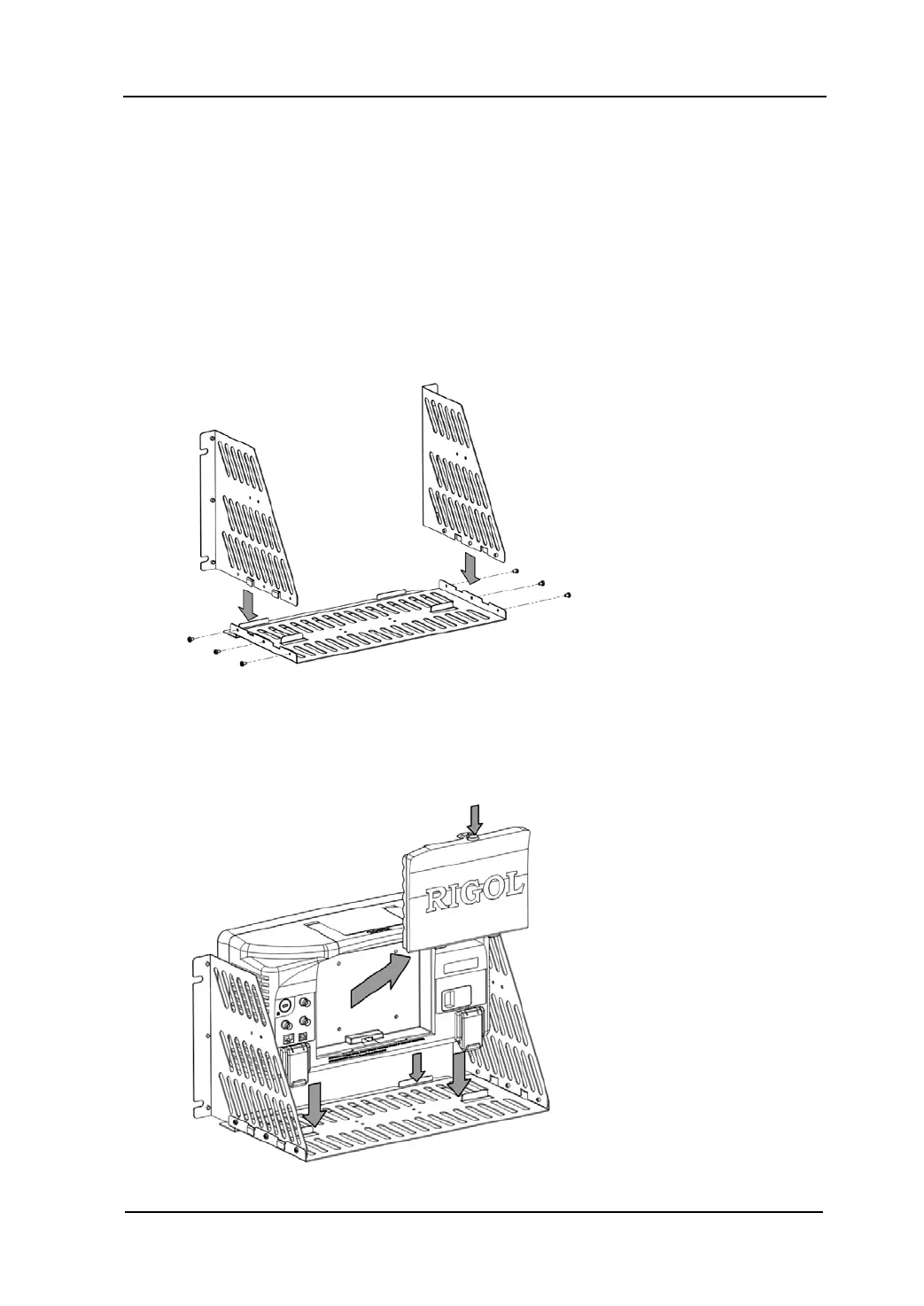

1) Install the right and left palate: aim the detents of right and left plate at the
openings on support board and insert respectively, then fix them using six M4
screws.
2) Place the instrument: Remove the battery* by pressing the button on top of it,
and then place the instrument into the confined position on the Support Board.
*Note: the battery is only supplied in China.
To Next Page
