Rigol DSA1030A series Accessories User Guide

RIGOL
DSA1000&DSA1000A Options&Accessories
20

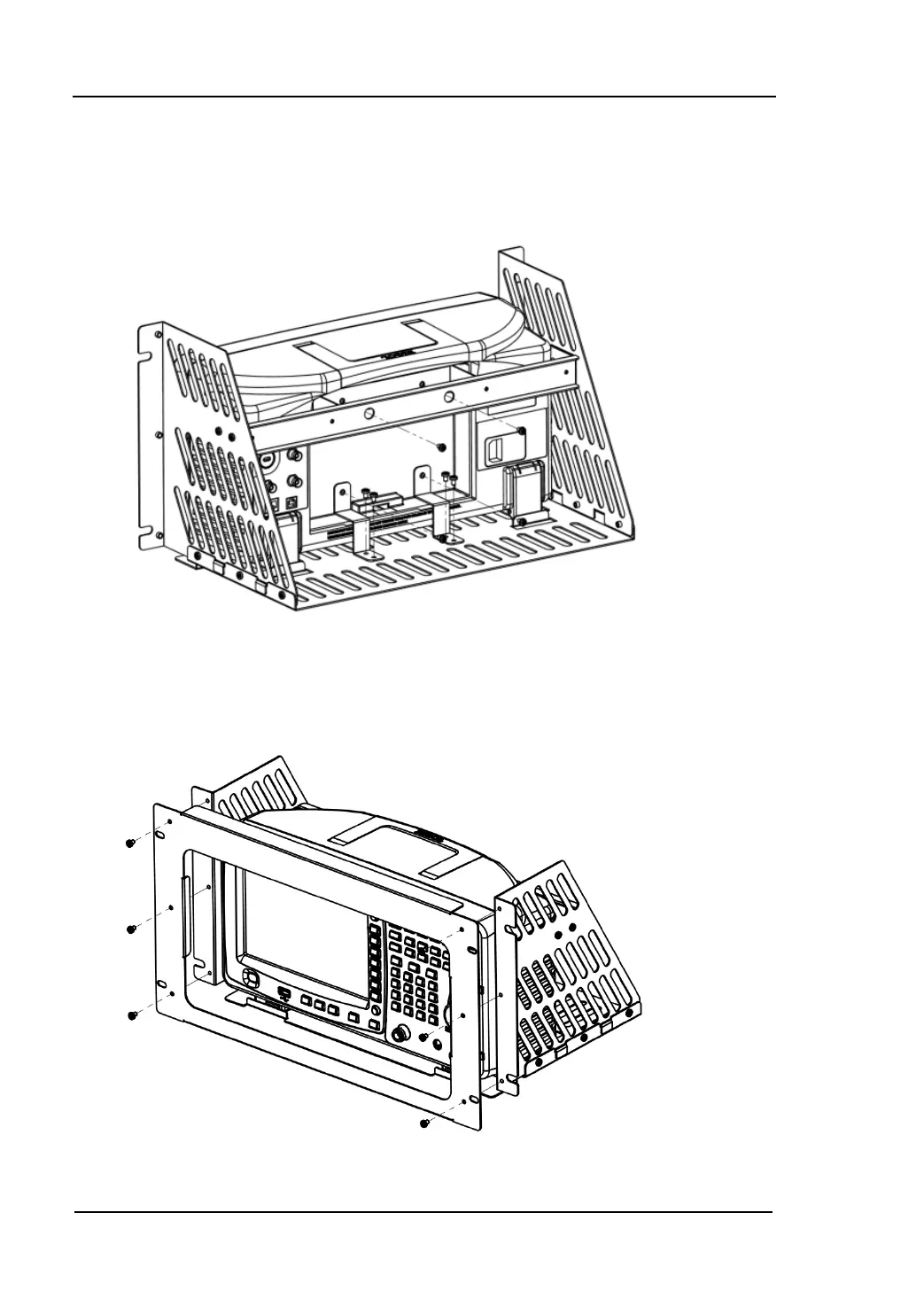

3) Fix the instrument: Fix a “Rear Support Bar” and two “Fixed Figure” on the
instrument using four M4*8 Screws. Locate the instrument on proper location and
then fixed the “Rear Support Bar” and “Fixed Figure” on the left/right board and
the Support Board using eight M4*6 Screw.
4) Mount Front Panel: Let the screw holes fitting well together, and aiming the
instrument front panel at the opening of the Front Panel of the machine rack and
fix them with six M4 screws.
