Chapter 8 Protocol Decoding RIGOL
MSO4000/DS4000 User’s Guide 8-23
no corresponding data channel is specified.
6. Specify the bits
Press Data Bits and turn the multi-function knob to select the desired data
bits. The range available is from 4 to 32 and the default is 8.

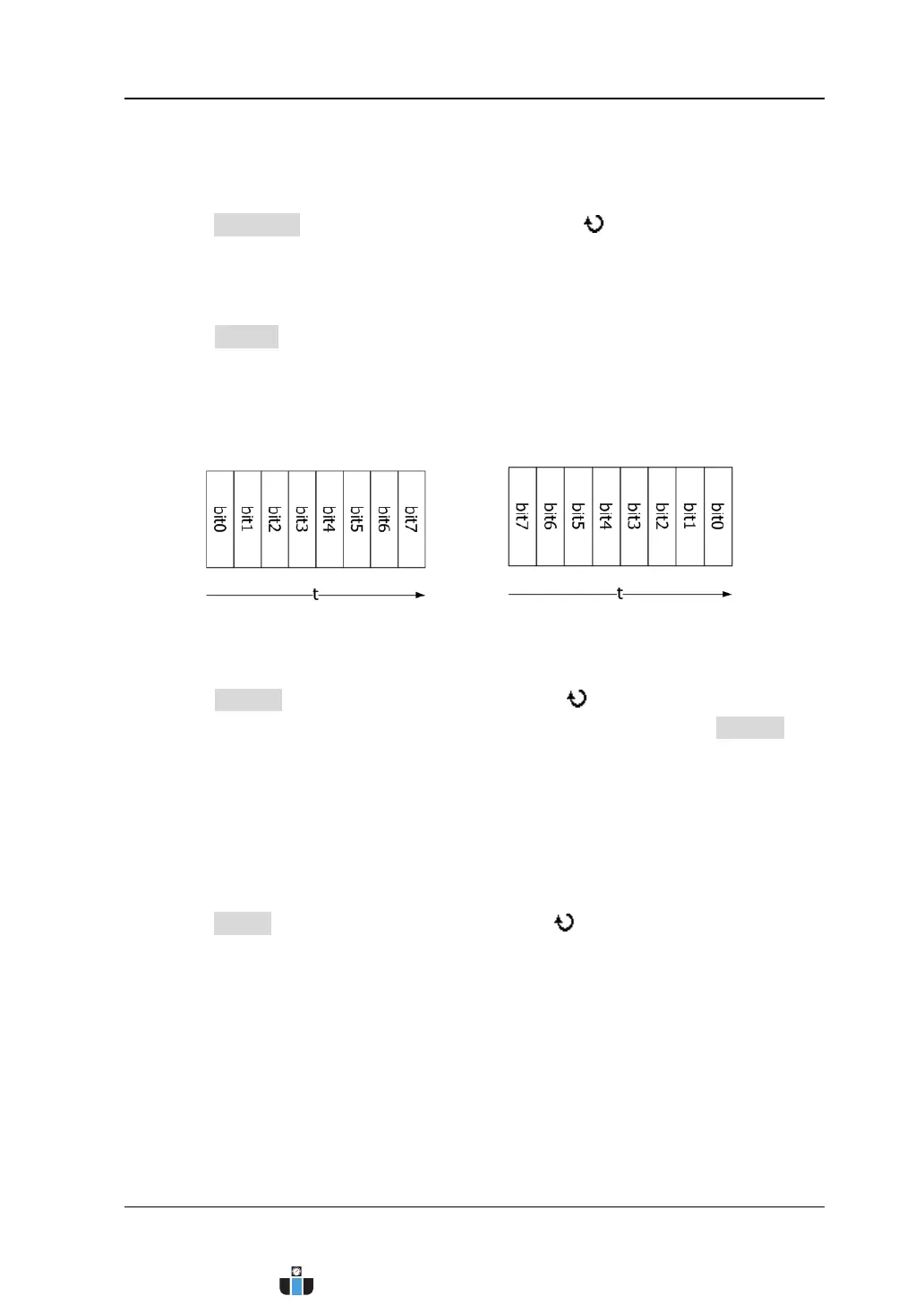

7. Specify the transmission endian
Press Endian to select “LSB” or “MSB” and the default is “MSB”.
LSB: Least Significant Bit; namely the less significant bit of the data will be
transmitted first.
MSB: Most Significant Bit; namely the more significant bit of the data will be
transmitted first.
LSB MSB
8. Specify the display format
Press Format and turn the multi-function knob to set the display format of
the bus data to Hex, Decimal, Binary or ASCII. You can also press Format
continuously to switch the current display format.
Note: When the event table is turned on, the decoding data in the event table
will also be displayed in the format selected here.
9. Adjust the vertical offset
Press Offset and turn the multi-function knob to adjust the vertical position
of the bus. Pressing the knob can quickly reset the vertical offset (zero).
10. View the event table
The event table displays the detailed information of the decoding in table form
to view relatively longer decoded data.
Note: You can only view the event table and export the decoded data when the
display of the corresponding bus is turned on.
