RIGOL
6 MSO8000 Quick Guide
English

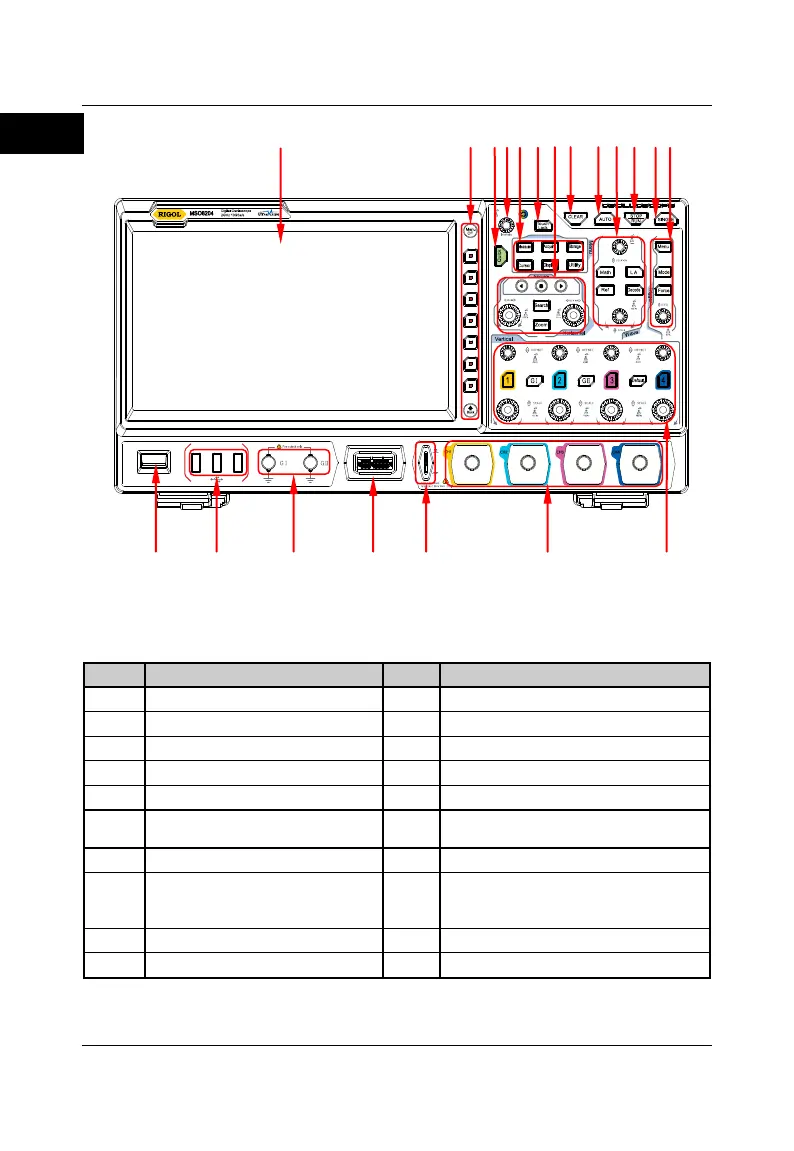

Figure 1 Front Panel
Table 1 Front Panel Description
No.
Description
No.
Description
1
Capacitive Touch Screen
11
RUN/STOP Key
2
Function Menu Operation Keys
12
Single Trigger Control Key
3
Quick Key (Shortcut Key)
13
Trigger Control System
4
Multifunction Knob
14
Vertical Control System
5
Common Operation Keys
15
Analog Channel Input Terminals
6
Touch Lock Key
16
Probe Compensation Signal Output
Terminal/Ground Terminal
7
Horizontal Control System
17
Digital Channel Input Interface
8
CLEAR Key
18
Dual-channel Function/Arbitrary
Waveform Generator Output
Terminals
[1]
9
Auto Waveform Display Key
19
USB HOST Interface
10
Waveform Control System
20
Power Key
Note:
[1]
This port function needs to be activated by purchasing the MSO8000-AWG option.
1 2 3 4 5 6 7 8 9 10 11 12 13
20 19 18 17 16 15 14
