Product Overview

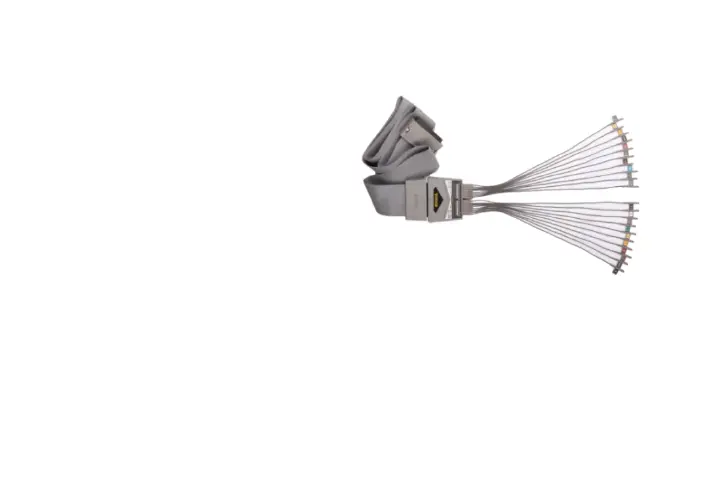

As a high-performance active logic
probe, RPL1116 connects the
digital signals under test to the
MSO1000Z series digital
oscilloscope to realize the logic
analyzer function.
The 16 digital channels (D0-D15)
of RPL1116 are divided into two channel groups (D0-D7 and D8-D15) each
of which includes signal interfaces and ground interfaces. 20 input signal
leads and 20 grabbers are provided as standard configurations for
RPL1116 to realize flexible connection of signals and reference ground.
Users can calibrate the probe zero by using the auto-calibration function in
the LA menu of the oscilloscope.
