Rigol RPL1116 User Manual

- 3 -
How to Use the Logic Probe

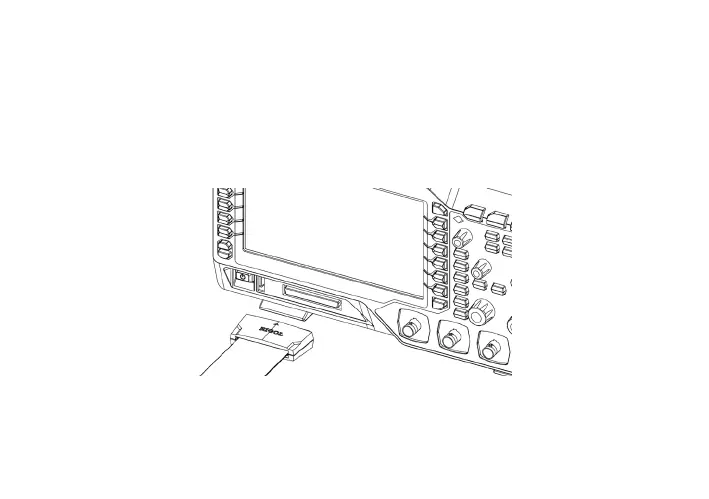

1． Connect RPL1116 to the oscilloscope: connect the active logic
probe head to the main cable input, and then connect the main cable
output to the digital signal input terminal on the front panel of the
oscilloscope, as shown in the figure below.

Rigol RPL1116 Specifications

General

Brand	Rigol
Model	RPL1116
Category	Accessories
Language	English
