Rigol RSA5000 Series User Manual

RIGOL Chapter 1 Quick Start
1-28 RSA5000 User Guide
Fuse Replacement
If you need to replace the fuse, use only the specified fuse (AC 250V, T3.15A) and
perform the following operations:
1． Turn off the instrument, cut off the power, and remove the power cord.
2． Use a small straight slotted screwdriver to pry out the fuse holder.
3． Take out the fuse holder.
4． Replace the old fuse with a specified fuse.
5． Install the fuse holder.

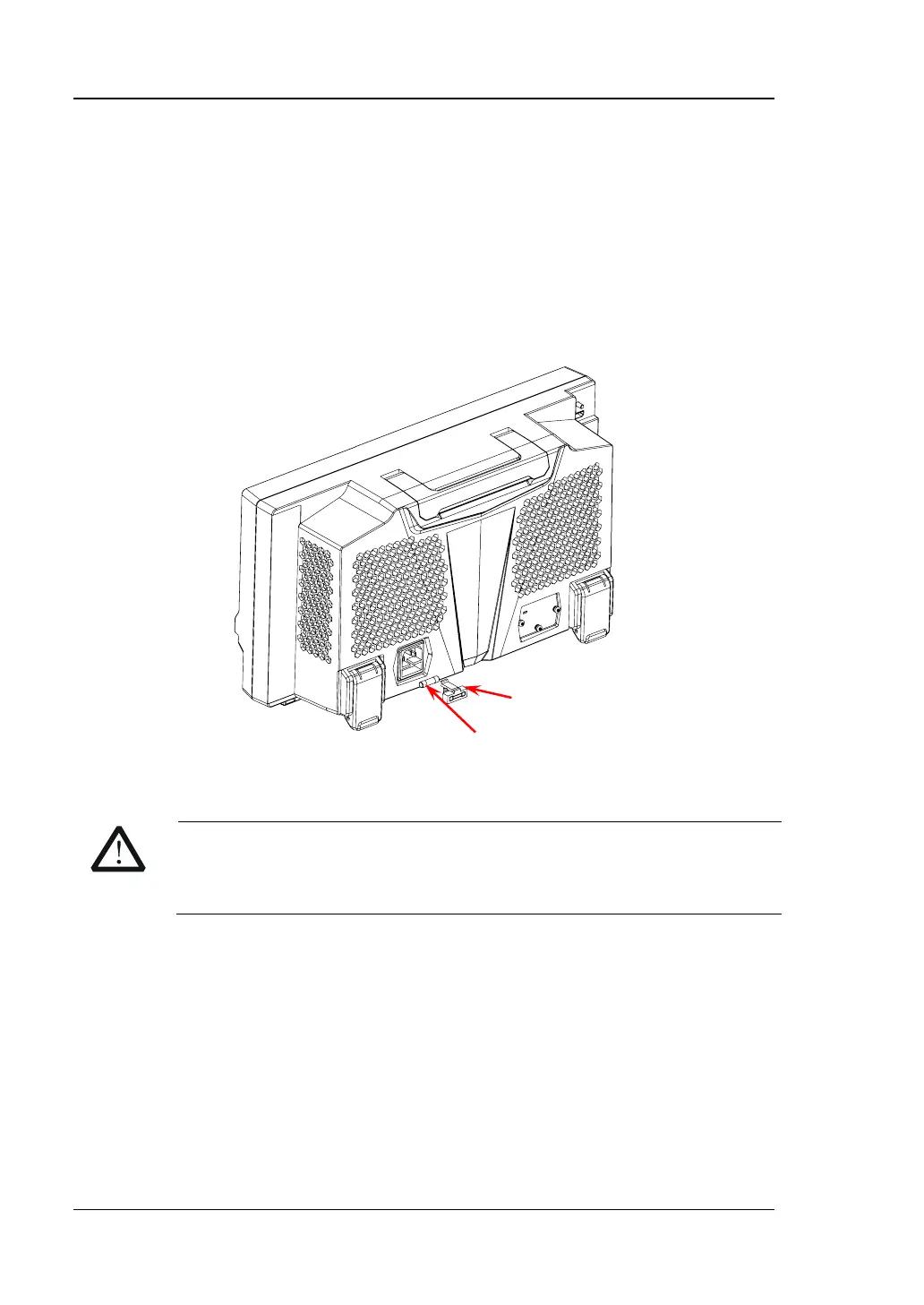

Figure 1-12 To Replace the Fuse
WARNING
To avoid electric shock, please ensure that the instrument has been
turned off, the power source has been cut off, and the fuse to be used
conforms to the fuse rating.
Fuse Holder
Fuse

Rigol RSA5000 Series Specifications

General

Brand	Rigol
Model	RSA5000 Series
Category	Measuring Instruments
Language	English
