Chapter 2 Functions of the Front Panel of GPSA RIGOL
RSA5000 User Guide 2-21
":INIT" command through the remote interface) should be executed before
judging the trigger conditions.
Press “Single”
Measurement status?
Single sweep mode? Single sweep mode?
Enter single sweep mode
and wait for trigger
condition
Enter single sweep/
measurement mode and
wait for trigger condition
Sweep again and wait
for trigger condition
Wait for trigger condition
and make single
measurement again
N
N
N
Y
Y
Y

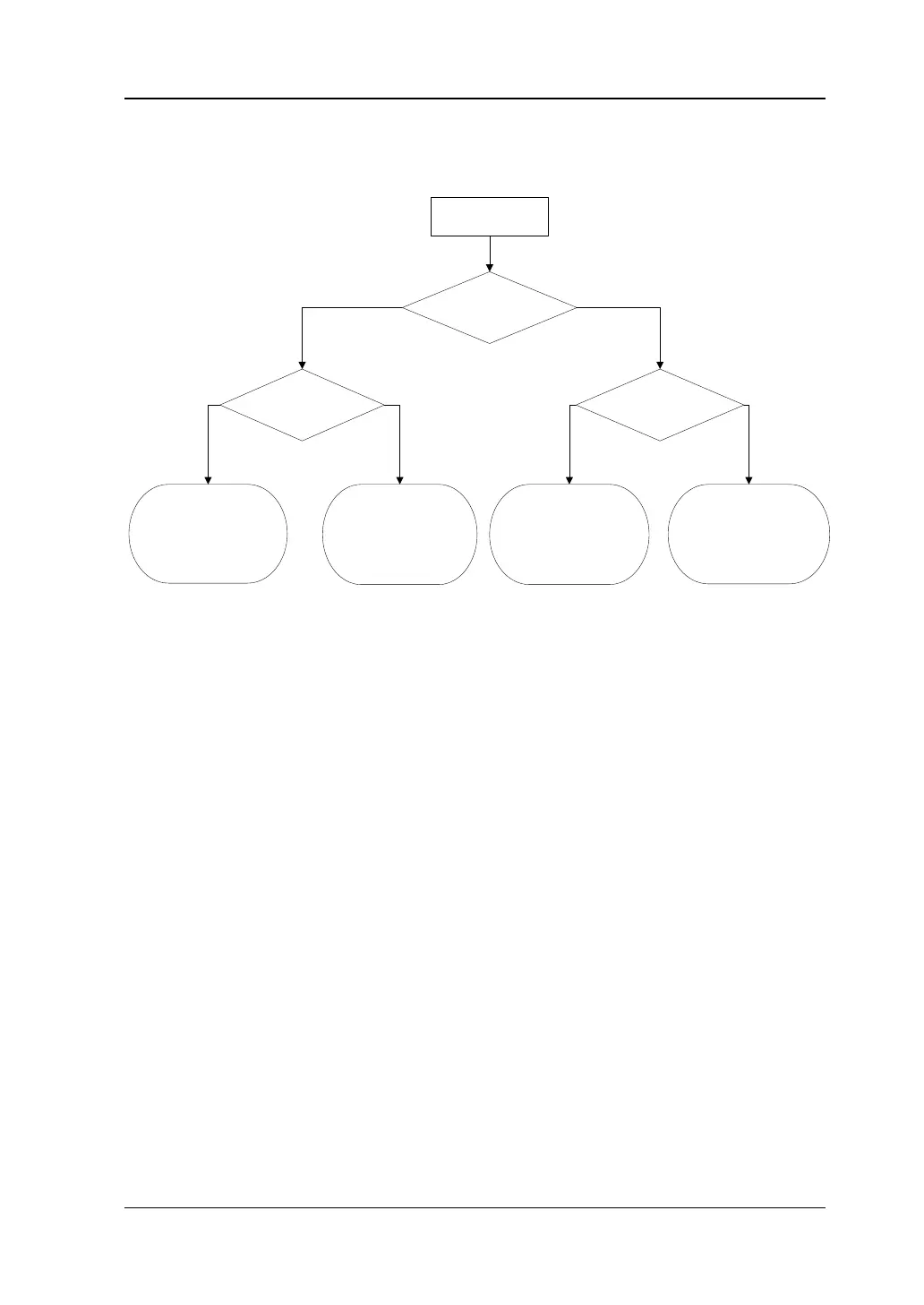

Figure 2-3 Process of Single Sweep
