Zone Number
Connect the tow wires to
these side-by-side terminals
Zone 1
Terminal 1
Terminal C
Zone 2
Terminal C
Terminal 2
Zone 3
Terminal 3
Terminal C
Zone 4
Terminal C
Terminal 4
Zone 5
Terminal 5
Terminal C
Zone 6
Terminal C
Terminal 6
Zone 7
Terminal 7
Terminal C
Zone 8
Terminal C
Terminal 8
1C23C45C67C8
1C23C45C67C8
B. Add the wires to the Retrofit Alarm Kit. Tighten the screw within each
terminal (using the included screwdriver) just enough so that the wires
don’t fall out.
C. If you’ve completed steps 1 and 2 correctly, check your Ring app. Zone 1
within the Ring app will now say Ready to Test.
Note: If your zone still says Available, you may need to open and close
a door or window to wake it up.
D. Tap the zone to begin the Zone Setup Test.
COmplete the test by opening and closing a door or window within
that zone. Take your smartphone and open the Ring app with you so
you can watch the test complete successfully while you open and close
the door.

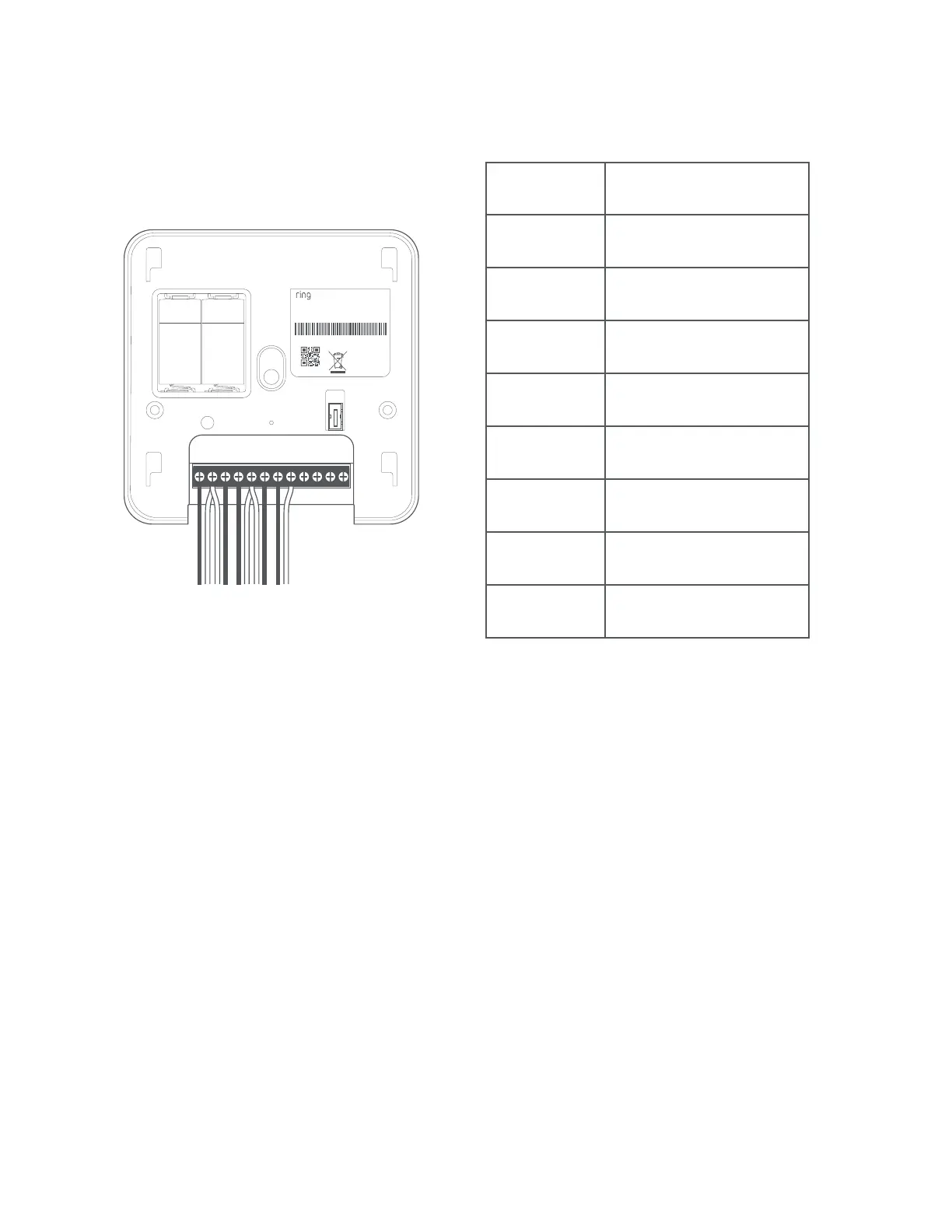

Use this chart and illustration below to match the zone with the correct
terminals. Each Terminal C may have multiple wires.
