NOTE: It is important the water heater is
disconnected from the electrical power supply prior
to removing the fan assembly otherwise damage to
the fan control circuit could occur.

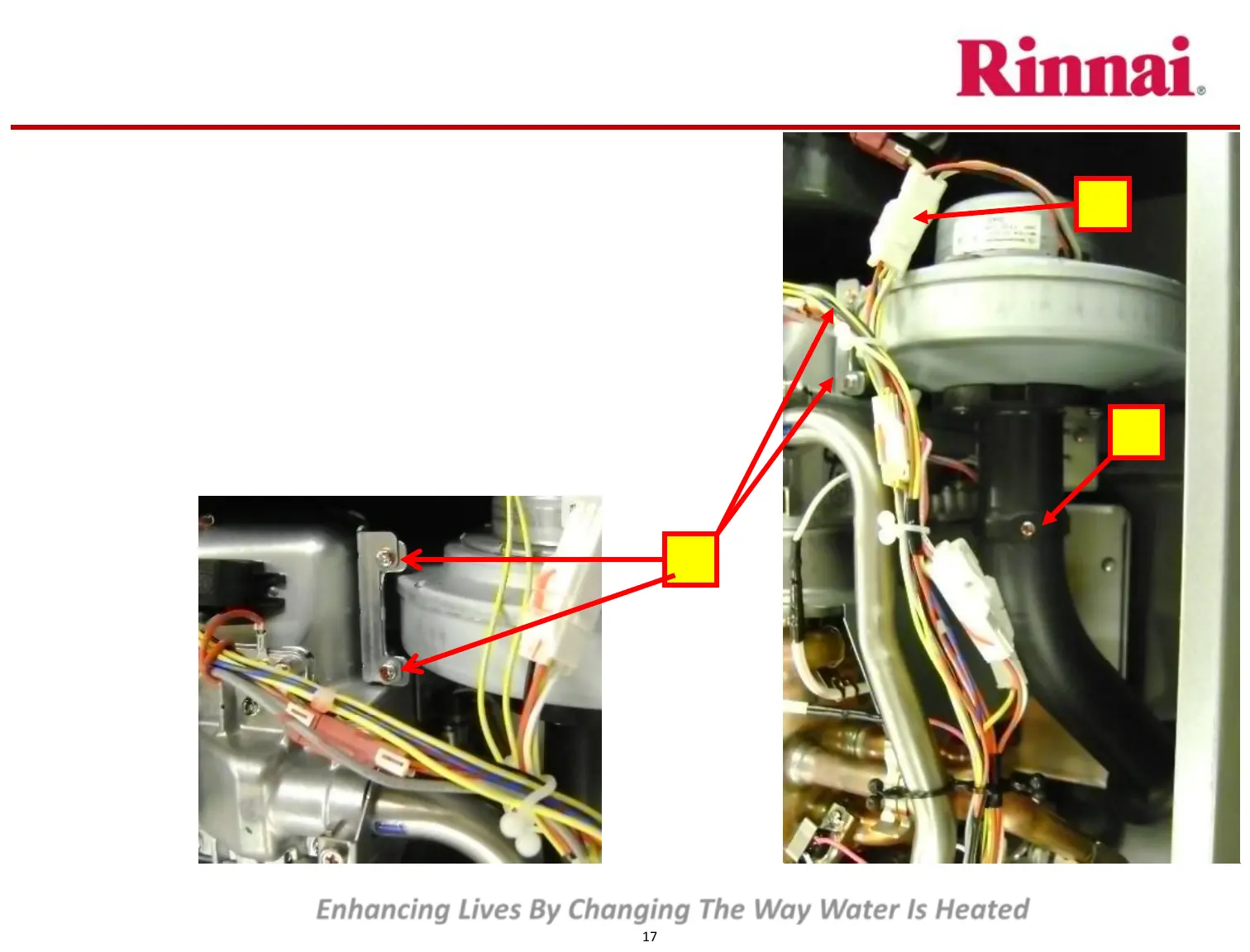

1. Disconnect the fan electrical connector.
2. Remove the screw or plastic rivet securing the fan air
inlet tube. Remove the tube.
3. Remove the two screws securing the fan assembly
to the burner assembly. Slide the fan forward and out
of the cabinet.
3
1
2
Combustion Fan
