REU-2532W Series 53 Rinnai
8. Turn off the gas to the water heater. Remove the manometer connection. Reinstall the
pressure port plug. Turn on the gas to the water heater and check for gas leaks around
test port with a leak solution.
9. Reinstall the front cover and place the unit back into operation.
10. Verify you are getting the proper water temperature, as set on the controller at your
outlets. If controllers are not being used the output temperature should be 120°F.

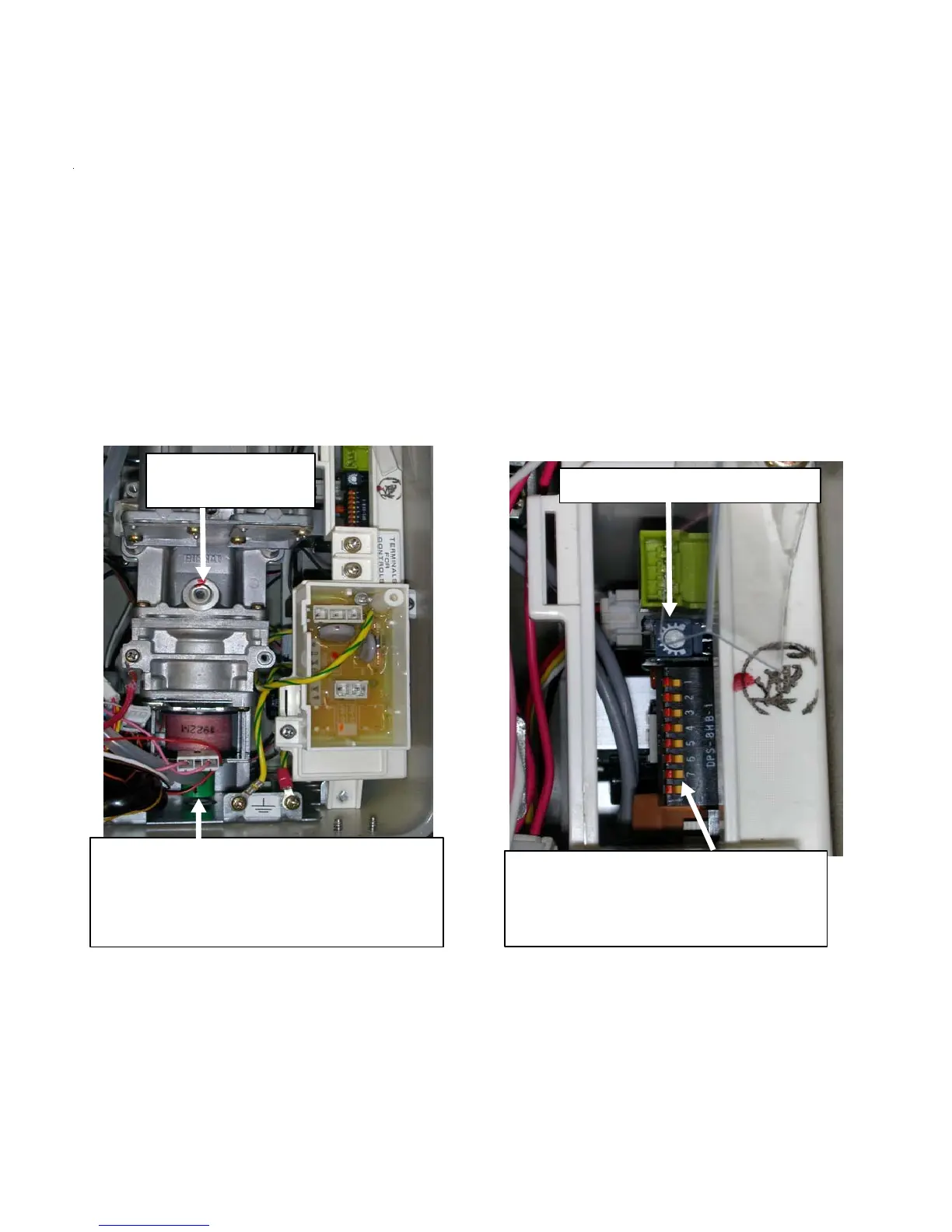

Figure #1 Figure #2
High pressure setting “Pot”
Regulator adjustment screw used when
setting low and high fire manifold gas
pressures only. DO NOT, adjust this screw
without following gas pressure setting
procedures.
Dip switches #7 and #8 are used when
adjusting low and high fire manifold
gas pressures, as stated in the gas
pressure setting procedure.
Manifold gas
pressure test port.
To Next Page
