36 VB Series Outdoor LS Manual

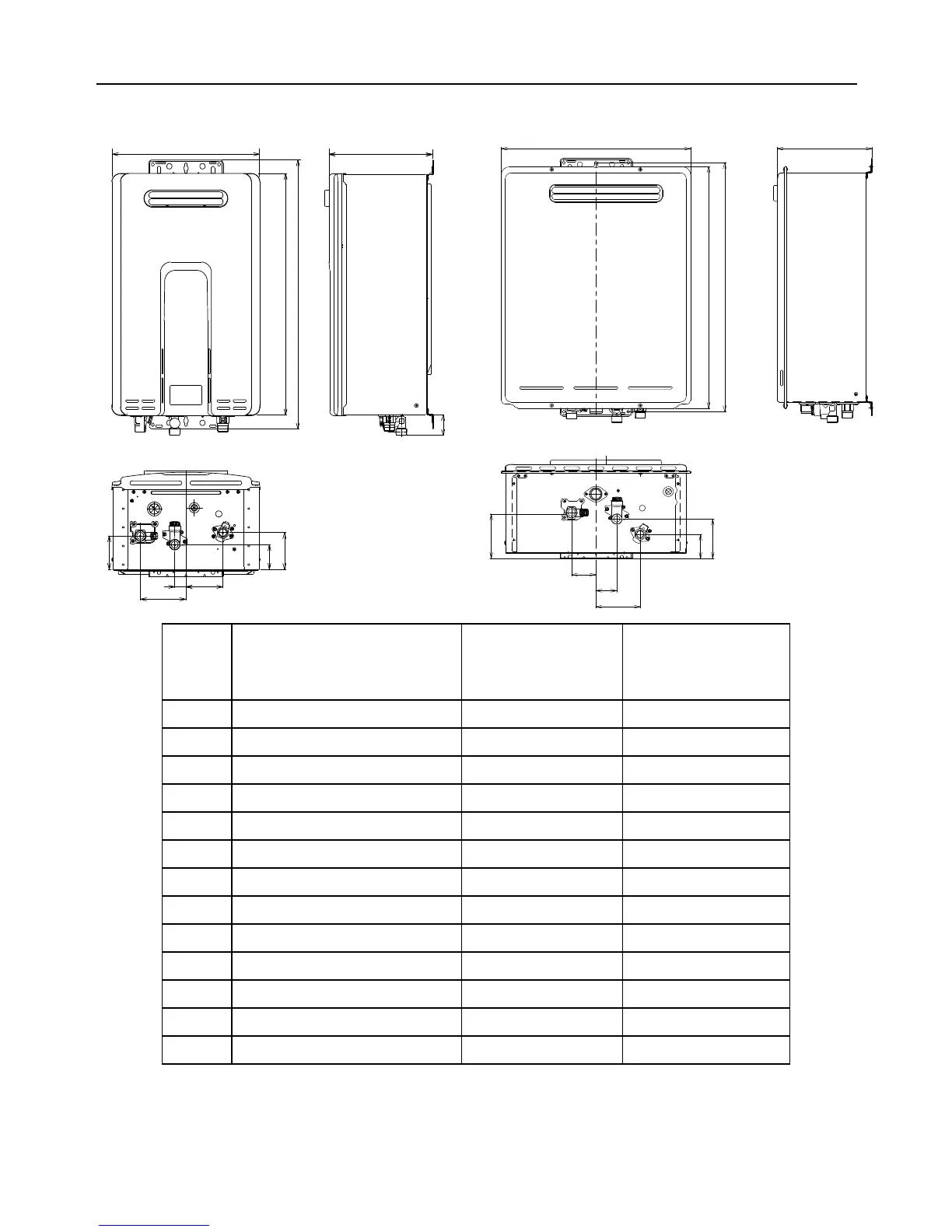

Dimensions
DIM DESCRIPTION
RL75e
RL94e
in (mm)
R98LSe
R98LSe-ASME
in (mm)
A Width 14 (355.6) 18.5 (470)
B Depth 9.9 (251.1) 9.3 (230.5)
C Height - Unit 22.9 (582) 23.6 (600)
D Height - with brackets 25.0 (634.2) 25.2 (640)
E Hot Water Outlet - from wall 3.8 (97.6) 4.5 (115)
F Hot Water Outlet - from center 4.3 (110) 2.4 (61)
G Cold Water Inlet - from wall 3.0 (76.6) 3.9 (99)
H Cold Water Inlet - from center 1.1 (27) 2.0 (52)
I Gas Connection - from wall 4.2 (105.6) 2.4 (61.2)
J Gas Connection - from center 3.5 (89) 4.3 (110)
From base to gas connection 1.6 (40) 1.6 (40)
K From base to cold connection 2.0 (50) 2.0 (50)
From base to hot connection 1.6 (41) 1.6 (41)
A
C
F
J
H
E
I
G
D
B
RL75e, RL94e R98LSe, R98LSe-ASME
E
F
H
G
J
I
A
CD
B
