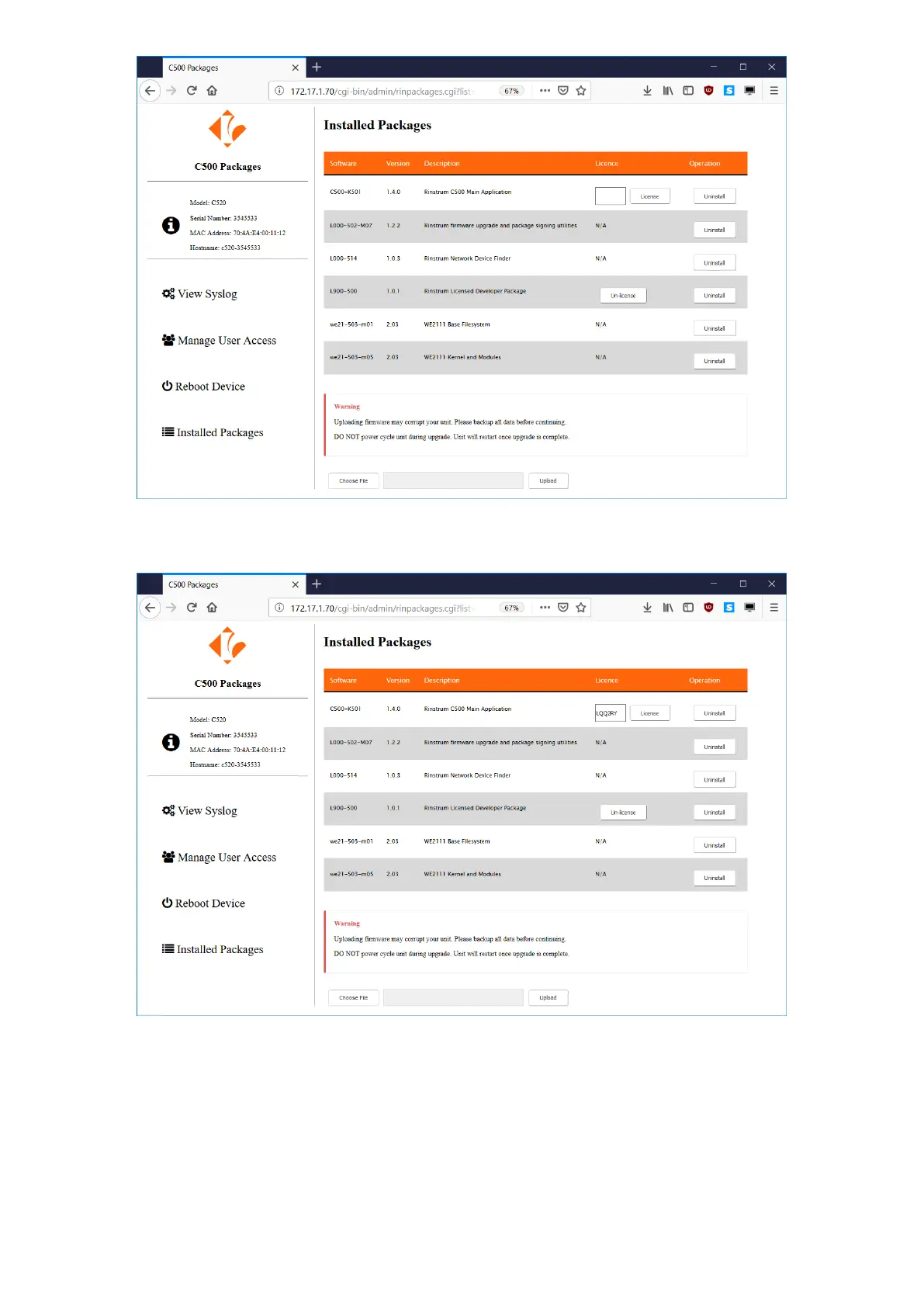

3.
Obtain
a
v
alid
licence
co
de
from
rinLIVE
for
the
pac
k
age
(C500-K501)
and
serial
num
b
er
(3545533).
En
ter
the
licence
co
de
(LQQ2R
Y)
in
the
licence
entry
field
as
shown,
and
click
License:
4.
The
web
interface
will
show
that
the
pac
k
age
is
licensed.
The
indicator
displa
y
will
cease
to
request
a
licence
co
de,
and
initiate
normal
weighing
(if
all
pack
ages
are
now
licensed).
175
C500-600-2.0.3
179
181
Table of Contents
Table of Contents
3
Introduction
6
Installation
7
Introduction
7
Environmental Conditions
7
Mounting
7
Power Connection
9
Loadcell Connection
10
EX-I Loadcell Connection
11
Optical Communications
12
DB9 Serial Port 1 Connection (C520 Only)
13
DB9 Serial Port 2 Connection (C520 Only)
14
Optional Module Connections
14
Ethernet Connection
14
USB Host and Device Connections
14
User Interface
16
General
16
Display Functions
16
Keys
17
Licensing
19
Unlicensed Packages
19
Licence Code Entry from Keypad
19
Licence Code Entry from Web Interface
19
Setup
20
General Information
20
BUILD: Scale Build Menu
23
OPTION: Scale Options Menu
25
CAL: Scale Calibration Menu
27
SERIAL: Serial Communications Menu
28
ETH.NET: Ethernet Menu
32
SPEC: Special Settings Menu
33
TEST: Test Menu
35
SET.PTS: Setpoints Menu
36
ANALOG: Analog Output Menu
38
CLOCK: Clock Menu
39
FILE: File Menu
40
DSD: Digital Storage Device Menu
41
CHG.LOG: Changelog Menu
42
FACTRY: Factory Menu
43
Operator Menus
44
Calibration and Trade
46
Introduction and Warnings
46
General Information
46
CAL:ZERO Zero Calibration Routine
49
CAL:SPAN Span Calibration Routine
49
Linearisation
50
Direct MV/V Calibration
50
CAL:FAC.CAL Factory Calibration
51
Automatic Weight Output
52
Introduction
52
Formats
52
Custom Format Tokens
54
Printing
57
Overview
57
Custom Ticket Headers
57
Custom Ticket Format
58
Custom Format Tokens
58
ASCII Codes
59
USB Interface
60
Device Interface
60
Host Interface
60
Change Log
62
Introduction
62
Format and Capacity
62
Changelog Security
62
Digital Storage Device (DSD)
63
Introduction
63
Format and Capacity
63
Changelog Security
63
Configuring the DSD
63
Writing Records
63
Reading Records
63
Alibi Application
65
Introduction
65
Changing Modes
65
Weighing and Counting Modes
65
DSD and Change Log Viewer Modes
66
Ethernet Interface
67
Overview
67
Accessory Modules
69
Introduction
69
Installation
69
Mapping
69
Configuration
69
Details
69
Setpoints
70
Introduction
70
Connection
70
General Settings
70
Common Settings
70
Over, Under, Weigh in and Weigh out Setpoints
72
Status Based Setpoint Types
73
Example 1 (Filling a Bag)
73
Example 2 (Loss in Weight System)
73
Remote Input Functions
74
Introduction
74
Functions
74
Remote Access
74
Blanking
74
Locking
75
Totalising
75
Single Serial Transmission
75
Thumbwheel IO Selection of Printer Text Line
76
Unit Switch
76
Setpoint Reset Inputs
76
Network Communications
77
Introduction
77
Network Rincmd
77
Rincmd Examples
80
Rincmd Registers
83
Modbus
100
Register Sizes
100
Modbus Holding Registers
100
Modbus Input Registers
106
Ethernet/Ip Optional Software
107
Overview
107
Terminology
107
Object Model
108
Network Commands
124
Basic Command Set
124
Extended Command Set: Overview
124
Extended Command Set: Details
126
5000 Legacy Modbus ASCII Networking
166
Connection of the C500 Network
166
Modbus Register Definitions for the 5000
166
Securing the Device
168
Setting a Safe and Full Passcode
168
Changing the Web Interface Passcode
168
Securing against Threats Via Network
168
Enabling External Access
169
Error Messages
170
Weighing Errors
170
Setup Errors
170
Calibration Errors
171
System Errors
171
Troubleshooting
173
Upgrading Firmware
174
Packages for the C500
174
Upgrading Firmware Via the Web Interface
175
Licensing Firmware Via the Web Interface
179
Upgrading Firmware Via the USB Host Interface
181
