Ripmax WOT 4-E ARTF - Page 6

STEP 10

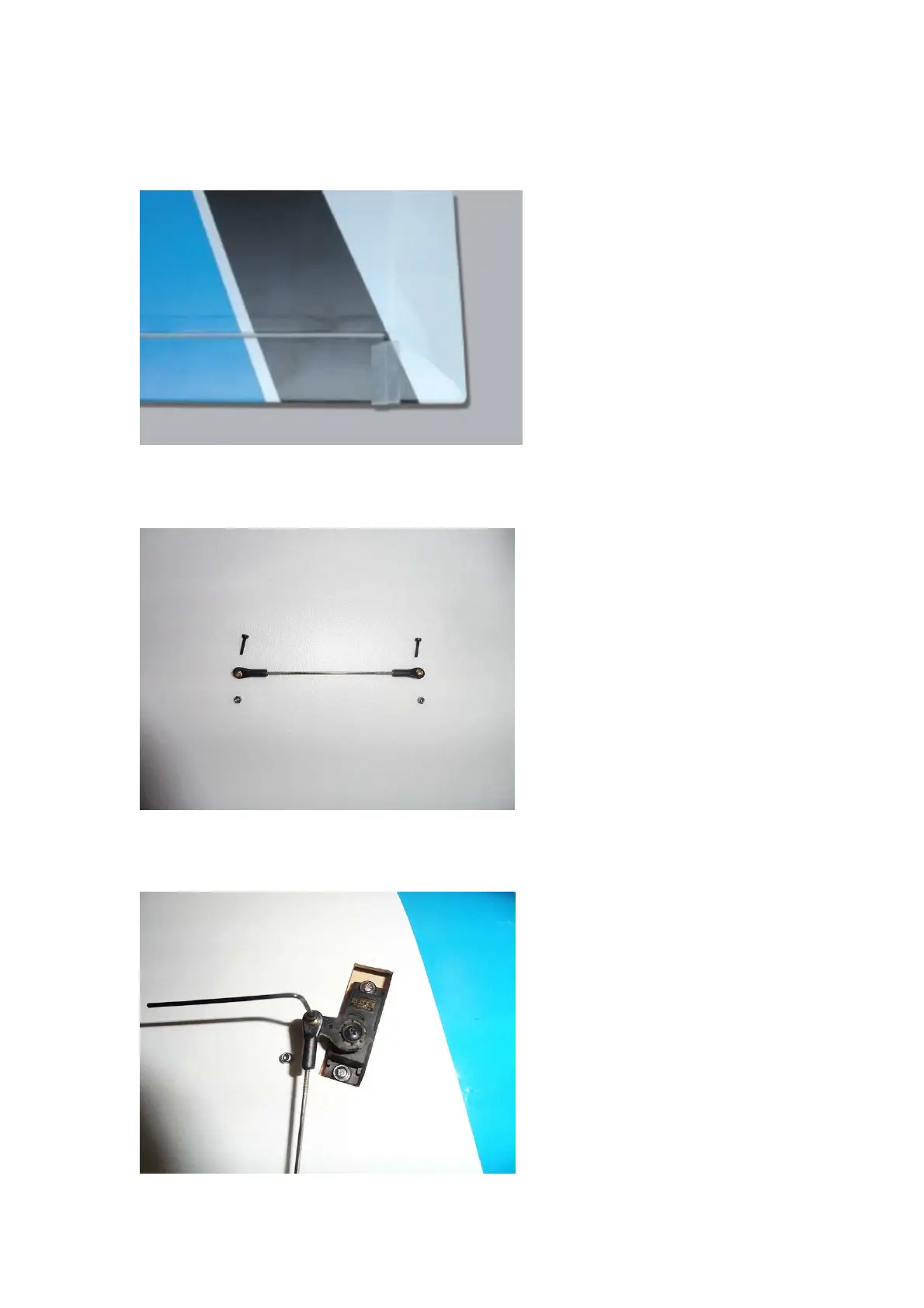

Use a small length of tape to hold each of the ailerons at their neutral position while you complete
the aileron linkages. Ensure that both aileron servos are centered.
STEP 11
The aileron push-rods is adjustable ball links system.
STEP 12
Enlarge the servo arm holes to 2mm for install the M2 screws.
