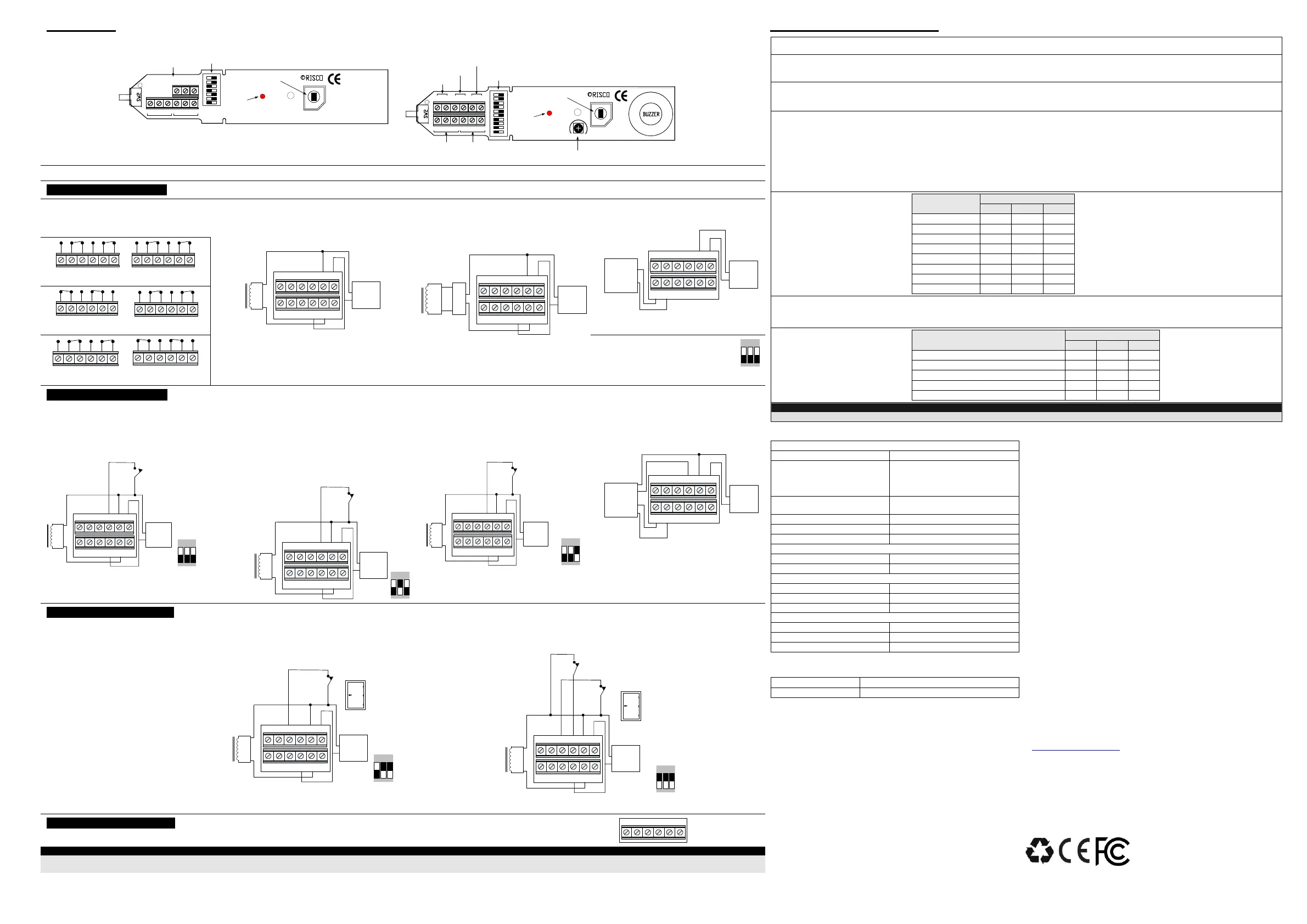

3. WIRING 4. DIP SWITCH OPTIONS
R - +
NC C NO NC C NO
1
2
3
4
5
6
7
O
N
PIR
Sensor
LED
Terminal
Blocks
DIP
Switches
iREX
Note: Conduct a Walk Test at least once a year.
No other maintenance is needed for the product.
T T D R - +
NC C NO NC C NO
MIN MAX
1
2
3
4
5
6
7
8
9
O
N
PIR
Sensor
LED
Buzzer Volume
Adjustment
DIP Switches
10
iREX Plus
RELAY 1 RELAY 2
TAMPER
CONTROL LINES
POWER SUPPLY
ON (default) - LED is activated. The LED turns on when motion is detected.
OFF - LED is disabled.
ON (default) - Relay timer resets when motion is detected during the Relay operation time.
OFF - Relay timer does not reset when motion is detected during the Relay time.
This switch defines the relay's operation when power is removed from the iREX.
OFF (default) - Fail Secure mode. When power is removed from the iREX a locked door will
remain locked and secured against opening. (This mode should be authorized by your local
authority)
ON - Fail Safe mode. When power is removed from the iREX a locked door will unlock and be
safely opened.
(See Contact Output Wiring)
Determines the detector's PIR detection sensitivity to movement.
ON - High PIR sensitivity
OFF (default) - Low PIR sensitivity.
Remote Input
Functions
(See Wiring
options)
Parallel Door Control (default)
NOTE:
* Available on iREX Plus only
RISCO Group Limited Warranty
RISCO Group and its subsidiaries and affiliates ("Seller") warrants its products to be
free from defects in materials and workmanship under normal use for 24 months
from the date of production. Because Seller does not install or connect the product
and because the product may be used in conjunction with products not
manufactured by the Seller, Seller can not guarantee the performance of the
security system which uses this product. Sellers obligation and liability under this
warranty is expressly limited to repairing and replacing, at Sellers option, within a
reasonable time after the date of delivery, any product not meeting the
specifications. Seller makes no other warranty, expressed or implied, and makes no
warranty of merchantability or of fitness for any particular purpose. In no case shall
seller be liable for any consequential or incidental damages for breach of this or any
other warranty, expressed or implied, or upon any other basis of liability whatsoever.
Sellers obligation under this warranty shall not include any transportation charges or
costs of installation or any liability for direct, indirect, or consequential damages or
delay. Seller does not represent that its product may not be compromised or
circumvented; that the product will prevent any persona; injury or property loss by
intruder, robbery, fire or otherwise; or that the product will in all cases provide
adequate warning or protection. Buyer understands that a properly installed and
maintained alarm may only reduce the risk of intruder, robbery or fire without
warning, but is not insurance or a guaranty that such will not occur or that there will
be no personal injury or property loss as a result. Consequently seller shall have no
liability for any personal injury, property damage or loss based on a claim that the
product fails to give warning. However, if seller is held liable, whether directly or
indirectly, for any loss or damage arising from under this limited warranty or
otherwise, regardless of cause or origin, sellers maximum liability shall not exceed
the purchase price of the product, which shall be complete and exclusive remedy
against seller. No employee or representative of Seller is authorized to change this
warranty in any way or grant any other warranty.
WARNING: This product should be tested at least once a week.
Contacting RISCO Group
RISCO Group is committed to customer service and product support. You can
contact us through our website (www.riscogroup.com) or at the following
telephone and fax numbers:
United Kingdom
Tel: +44-161-655-5500
technical@riscogroup.co.uk
Belgium
Tel: +32-2522 7622
support-be@riscogroup.com
Italy
Tel: +39-02-66590054
support@riscogroup.it
China
Tel: +86-21-52-39-0066
support-cn@riscogroup.com
Spain
Tel:+34-91-490-2133
support-es@riscogroup.com
Israel
Tel: +972-3963-7777
support@riscogroup.com
France
Tel: +33-164-73-28-50
support-fr@riscogroup.com
All rights reserved. No part of this document may be reproduced in any form
without prior written permission from the publisher.
© RISCO Group 04/23 5IN700PR E
8mA standby,
iREX: 30mA max (Relay+LED),
iREX Plus: 50mA max at 12/24 VDC
(including Buzzer)
1A @ 30 volts DC or AC, two form “C”
contacts
Buzzer Output (iREX Plus)
85dB with adjustable volume
2.3m - 4.6m (7.5ft – 15ft)
From 0.6m (2ft) up to 2.4m (7.9ft)
-20°C to 55°C (-4°F to 131°F)
-20°C to 60°C (-4°F to 140°F)
Note: For indoor use only.
iREX Plus Request-to-Exit PIR White/Black
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications to this equipment which are not expressly approved by the party
responsible for compliance (RISCO Group's.) could void the user's authority to operate the
equipment.
FCC Note
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning
the equipment on and off, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on to a different circuit from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
UKCA and CE EMC Compliance Statement
Hereby, RISCO Group declares that this equipment is in compliance with the essential
requirements of the UKCA Electromagnetic Compatibility Regulations 2016 and CE
Directive 2014/30/EU.
For the UKCA and CE Declaration of Conformity please refer to our website:
www.riscogroup.com
Connect to power supply between (+) and (-) terminal. (Voltage must be between 12-30 VAC or DC)
"NC,C,NO" Contact Output Wiring
Fail Safe
(Switch 3 On)
Fail Secure
(Switch 3 Off)
Fail Secure
(Switch 3 Off)
Basic Connection: Magnetic Lock Only
During motion detection, power is removed from
the magnetic lock. The relay behaves according
to the Fail Safe/Fail Secure definition.
Maglock
+
_
NC C NO NC C
NO
T T D R
-
+
12 - 30 Volt
DC or AC
Power
Supply
+
_
Spike Protection
Add a diode or bridge rectifier for locks
that are not spike protected.
Maglock
+
_
T T D R
-
+
Diode /
Bridge Rectifier
NC C NO NC C
NO
12 - 30 Volt
DC or AC
Power
Supply
+
_
Wiring to an Access Control System
Access Controller
12 - 30 Volt
DC or AC
Power
Supply
+
_
NC C NO NC C
NO
T T D R
-
+
Input
NC C NO NC C NO
Power Off
Power Off
NC C NO NC C NO
Motion Detected Motion Detected
NC C NO NC C NO
NC C NO NC C NO
Normal (No Motion)
Normal (No Motion)
NC C NO NC C NO
NC C NO NC C NO
Motion Detected Motion Detected
NC C NO NC C NO
NC C NO NC C NO
Note: It is recommended to set the
Relay Timer Activation to 1/2
second.
"R" Input Terminal Wiring
Parallel Door Control (iREX or iREX Plus)
Use to control the door both from the
iREX or from an external device (card
reader, keypad) usually placed on the
other side of the door.
Maglock
+
_
NC C NO NC C
NO
T T D R
-
+
Door Controller
(Normally Open)
12 - 30 Volt
DC or AC
Power
Supply
+
_
(Dip Switch settings
on iREX Plus)
Remote iREX Disable (IQ feature) *
Use the Intelligent Queuing feature to remotely
enable or disable the iREX from a remote device
(such as a floor switch, additional PIR, Keycard,
Burglar alarm system, etc.). The iREX will only
activate by motion if the "R" terminal is open, or
for 10 seconds after it closes. The iREX is
disabled when the "R" input is closed after a
delay of 10 seconds.
Maglock
+
_
NC C NO NC C
NO
T T D R
-
+
Normally Open
12 - 30 Volt
DC or AC
Power
Supply
+
_
Remote Buzzer Control *
Use this wiring option to control the iREX
buzzer from a remote contact. Buzzer is
activated while R is open. Turning the
buzzer on does not affect the relay.
Maglock
+
_
NC C NO NC C
NO
T T D R
-
+
Door Controller
(Normally Closed)
12 - 30 Volt
DC or AC
Power
Supply
+
_
Wiring the Remote Buzzer Control to
an Access Control System*
Access Controller
12 - 30 Volt
DC or AC
Power
Supply
+
_
NC C NO NC C
NO
T T D R
-
+
Input
Output
"D" Input Terminal Wiring *
Door Alarm Mode *
If the door is forced open or if after detector
activation 10 seconds remains on the timer, the
buzzer turns on.
Maglock
+
_
NC C NO NC C
NO
T T D R
-
+
Door Contacts
(Normally Closed)
12 - 30 Volt
DC or AC
Power
Supply
+
_
Door Secure Mode *
When the iREX is activated but the door remains closed, the relay will drop out after
ten seconds. When the iREX is activated and the door is opened and then closed, the
relay will drop out after 2 seconds.
Maglock
+
_
NC C NO NC C
NO
T T D R - +
Door Contacts
(Normally Closed)
Other Inputs
12 - 30 Volt
DC or AC
Power
Supply
+
_
Notes: Relay Timer Mode must be set for at least 16 seconds
"T" Tamper Switch Wiring *
The tamper terminals are connected to the tamper switch, which opens when the cover is opened.
* Available on iREX Plus only
