3.4 Gallagher TW1 – Calibration

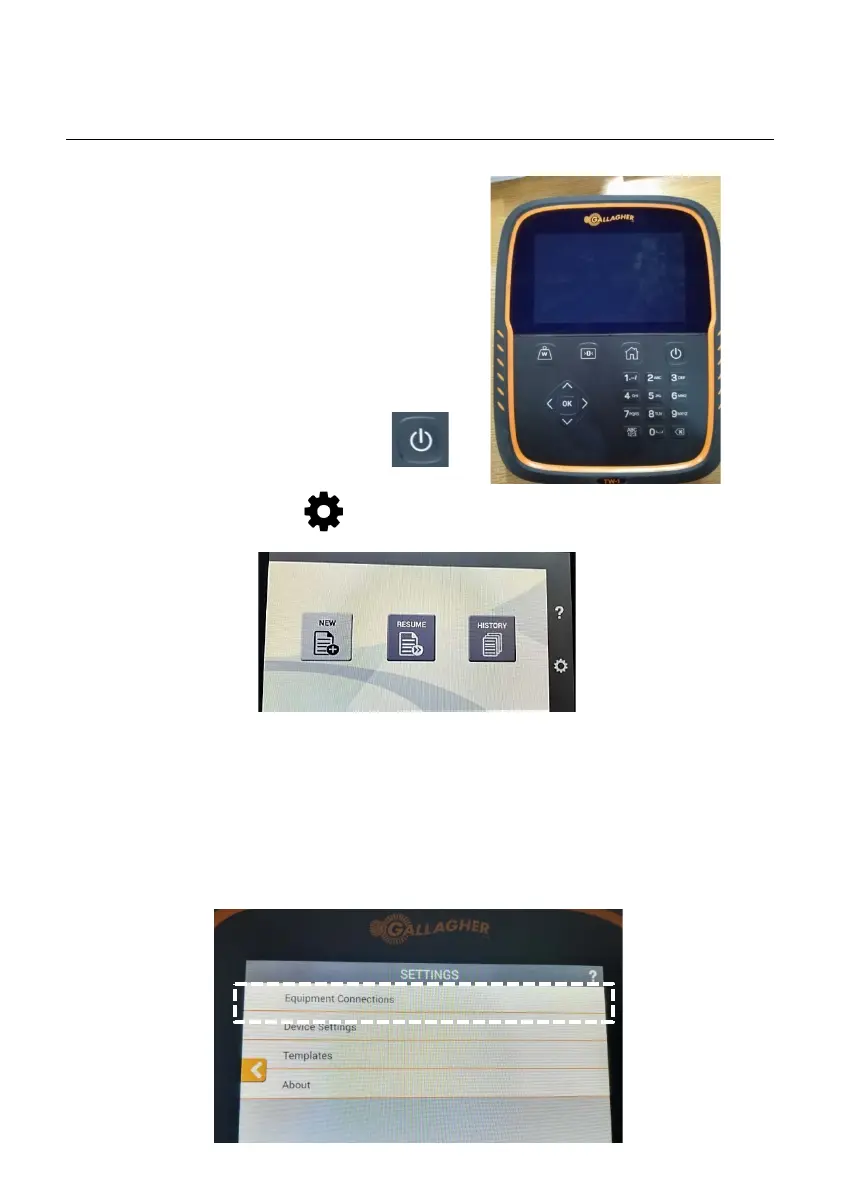

3.4.1 Connect load bars to the
Gallagher indicator
connectors using Y piece
Gallagher adaptor cable
manufactured and supplied
by Ritchie.
3.4.2 Turn on the indicator, using
the power button.
3.4.3 Tap on the Icon to open settings menu.
3.4.4 Tap Equipment Connections to enter the selected
menu.
3.4.5 Tap the “Loadbar name” or select a “Create Custom”
and follow indicator wizard
3.4.6 Tap “Advanced”
3.4.7 Tap “Span”
3.4.8 Follow the configuration wizard of the indicator
