Dock Shelter (620G, 620NH) Installation/Service/Owner's Manual Rite‑Hite
®
4 Publication: AMEN00141 2019-11-22
INSTALLATION
Overview
1. Unpack and inspect unit.
2. Install side frames and bracket anchors.
3. Install side arms, front bar and canopy top.
4. Install side curtains and pocket straps.
5. Install gutter, roller seal, and wear panels.
6. Install draft pads.
Instructions assume that the installer is outside the building facing the loading dock.

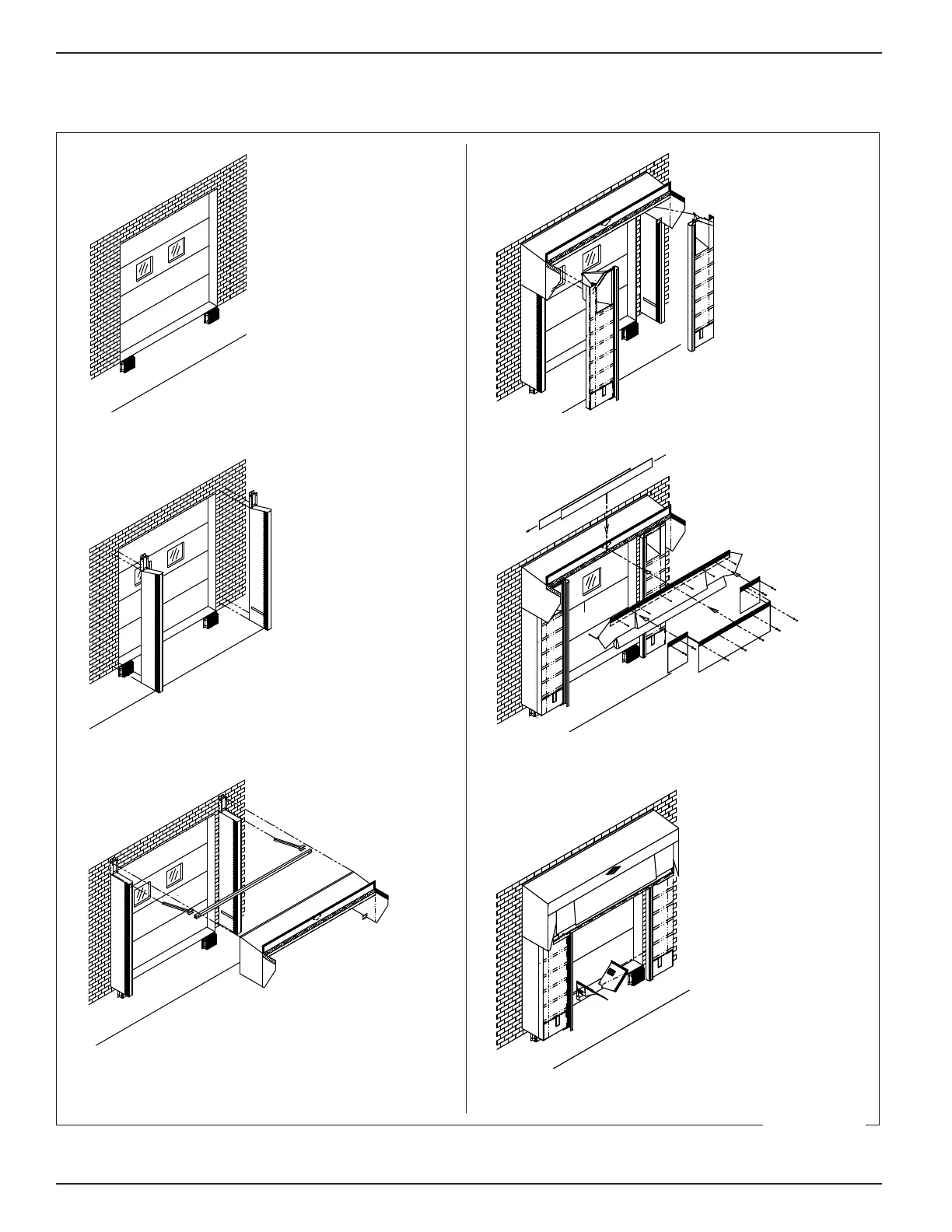

Figure 1
