Dock Shelter (620G, 620NH) Installation/Service/Owner's Manual Rite‑Hite
®
8 Publication: AMEN00141 2019-11-22

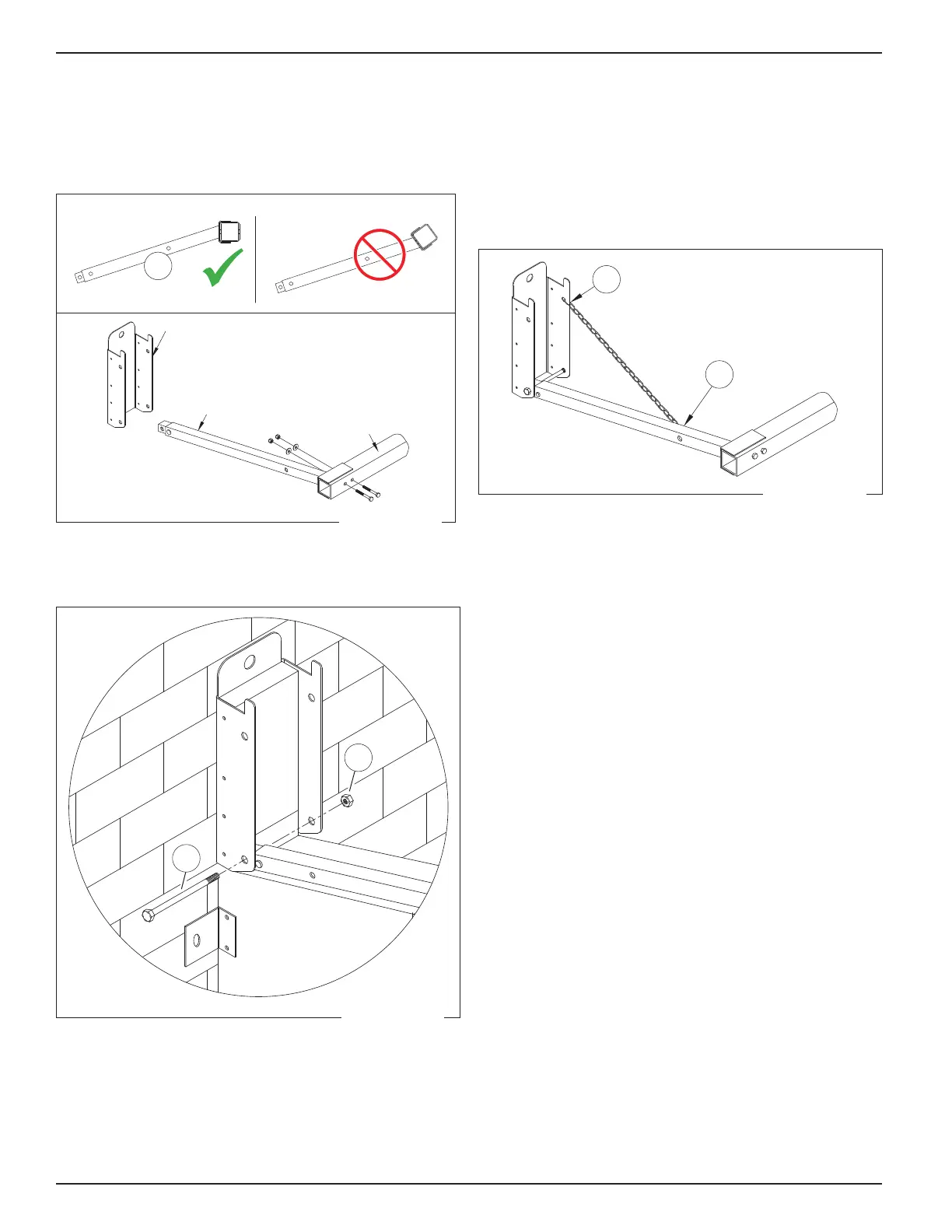

INSTALLATION
Canopy Header
NOTE: Installation procedure is the same for Standard
Pitch and Integral Hood, except that the canopy mounting
bracket is longer for the Integral Hood.
Side View
A
Bracket for Reference Only
Side Arm
Front Bar
1. Attach the side arms to the front bar. Before inserting
the attachment bolts, confirm orientation of the side
arms is correct (A).
C
B
2. Lift the side arm/front bar assembly together and
position across the installed side frames and
mounting brackets. Position it on top so the side arms
on the top frame are facing the wall and land between
the mounting brackets on side frames (Figure 7).
3. Connect bracket and side arm with bolt (B) on each
side of unit. Secure with (supplied) nylock nut (C).
D
E
4. Install the installation chains on both sides of the
canopy frame. The chains hold the front bar up so the
canopy cover can be attached.
• First attach quick link side (D) of the chains to the
inside legs of the canopy mounting brackets.
• Next, lift up canopy front bar and attach the "S" hook
side (E) of the chains to holes on the inside face of
the side arms.
Figure 6
Figure 7
Figure 8
