Rite‑Hite
®
Installation/Service/Owner's Manual Eclipse
®
Dock Shelter (620G, 620NH)
Publication: AMEN00141 2019-11-22 13
INSTALLATION
Weighted Seal, Wear Panel

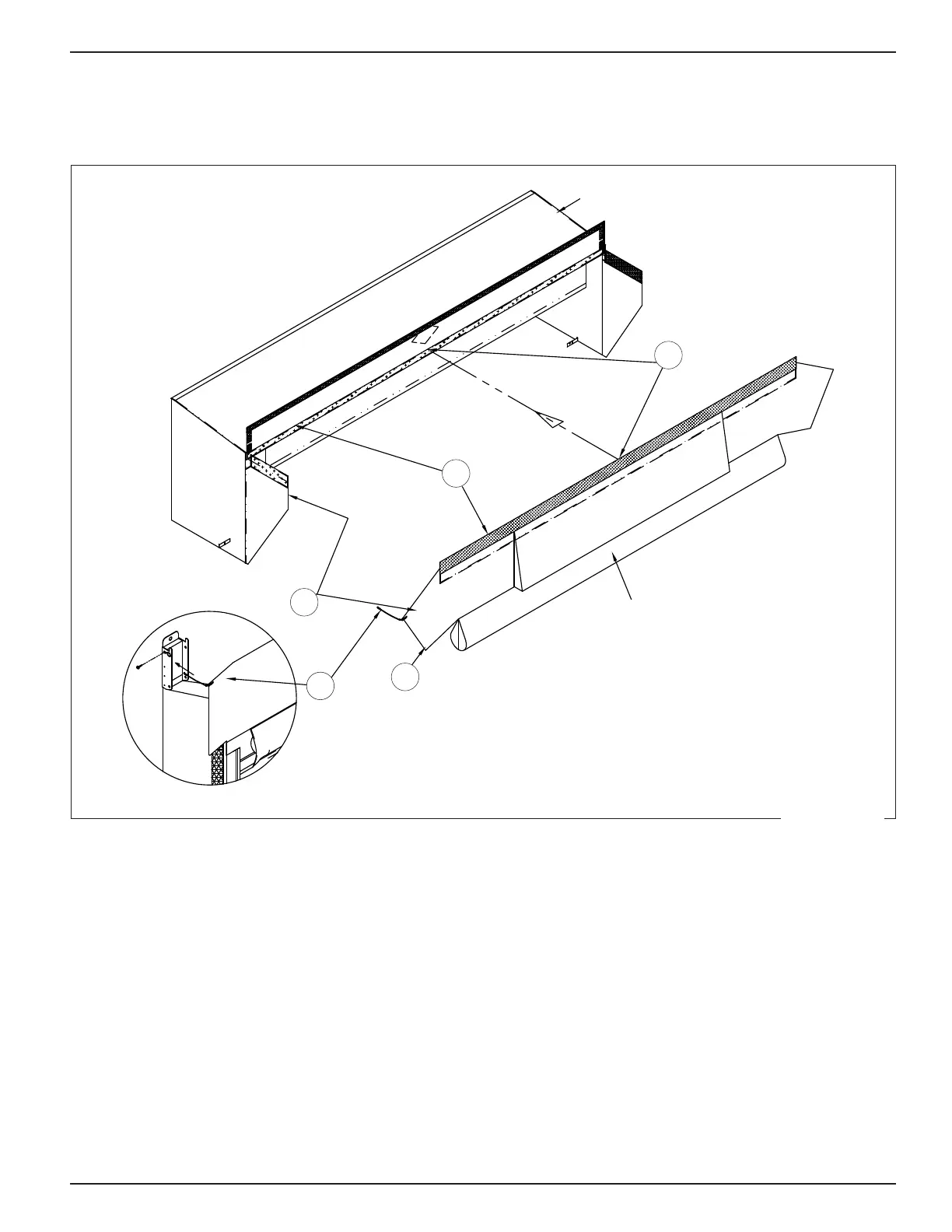

Position Roller Seal Assembly
<Eclipse Manual ‑ Roller Seal_191004.pdf>
A
E
Roller Seal Assembly
Canopy Top
B
D
C
NOTE: Canopy removed for clarity.
1. Position roller seal assembly so that center tabs (A)
and top edges are aligned the full width (B) with the
canopy top.
2. Tuck roller seal ends behind canopy end caps (C).
3. Connect strap to ring at back of the header (D)
(on both sides).
NOTE: No windstraps are used on the bottom of the
roller seal assembly (E).
Figure 15
